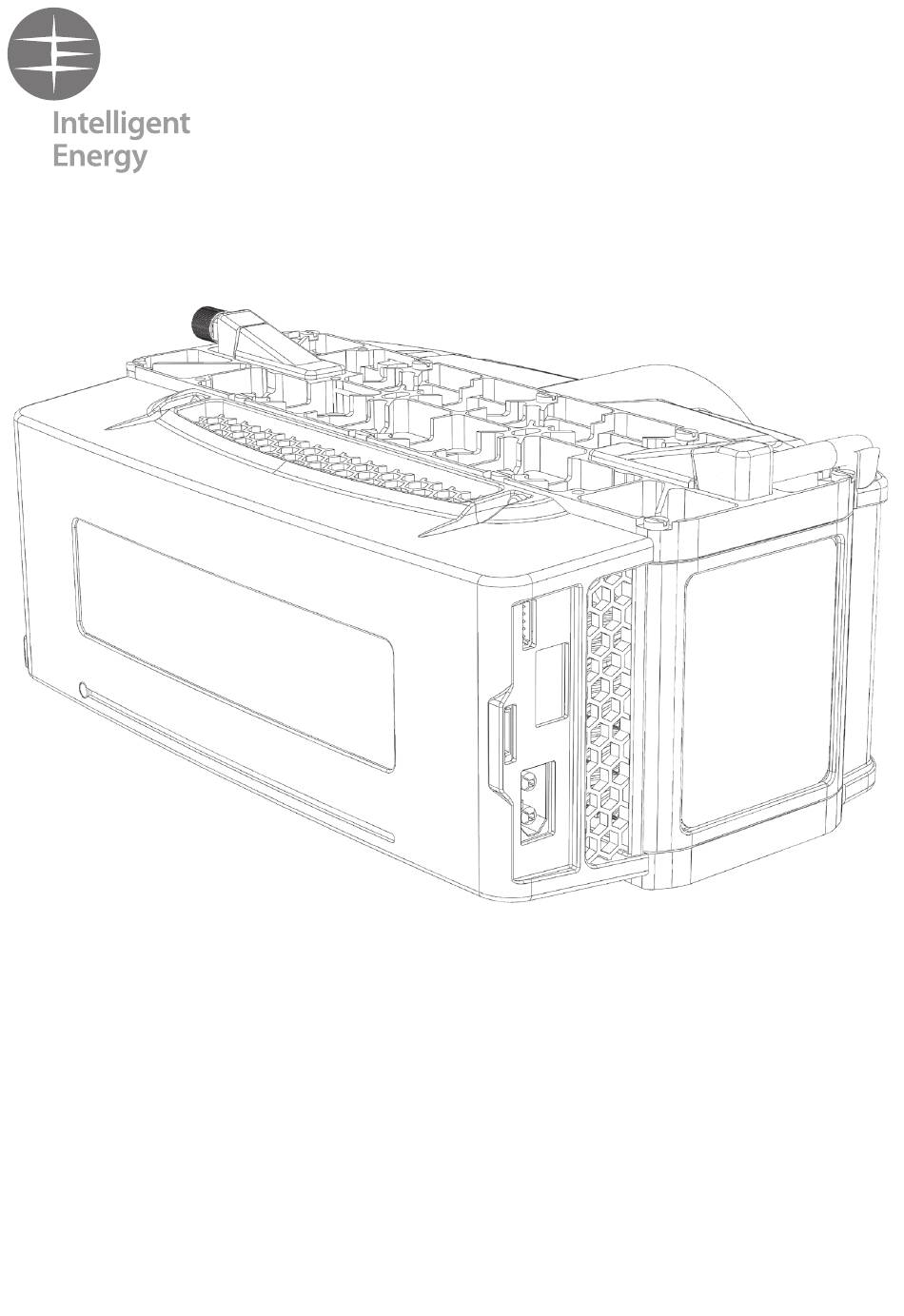

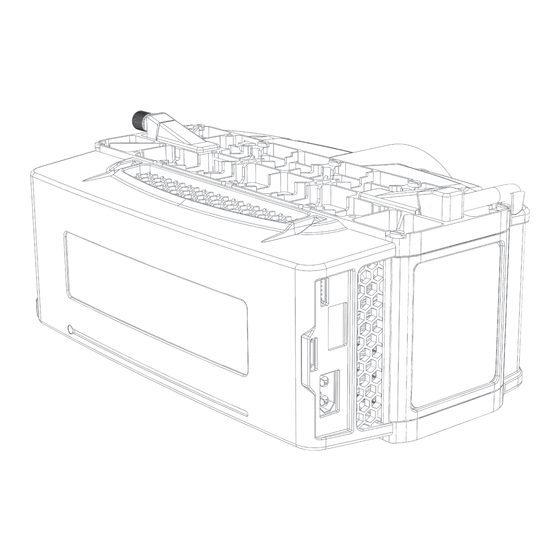

- Page 1 650W/800W Fuel Cell Power Module User Manual Users must read all instructions provided and retain the manual for future reference...
-
Page 2: Table Of Contents
Hydrogen connection which can be determined by turning the equipment Intelligent Energy warrants to the recipient and it will repair and replace SD card format off and on, the user is encouraged to try to correct the... -
Page 3: Safety Warnings
· Keep away from vegetation. · Not to be used in residential areas (EMC). · Do not use this portable FCPM if any part has been immersed or flooded with water. Immediately call the manufacturer or manufacturer’s representative to inspect the FCPM and to replace any functional part that has been affected. -
Page 4: Product Specification
196 × 88 × 140mm 196 × 100 × 140mm requiring a recharge. Mass 810g 930g The current limit of the 650W FCPM is 50A. The 800W FCPM has a limit of 80A. Hybrid battery Dimensions 120 × 35 × 40mm 140 × 30 × 20mm Emergency flight time –... -
Page 5: Assembly And Connection
Assembly and connection Assembly and connection Hydrogen fuel Mechanical mounting points for 650W FCPM When installing and operating hydrogen systems, hydrogen general safety guidance The following attachment points are included to aid mounting of the should be considered: 650W FCPM on your UAV. -
Page 6: Mechanical Mounting Points For 800W
Output Power Rail – not for use to power external circuits BOOT0 Not required UART TX FCPM UART Transmit Line (TX +3V3) to connect to external receive (RX) line UART RX FCPM UART Receive Line (RX +3V3) to connect to external receive (RX) line GND Reference UART: 9600 baud, 8 data bits, 1 stop bit, and no parity. - Page 7 +3V3 Output Power Rail – not for use to power external circuits UART TX FCPM UART transmit line (TX) to connect to external receive (RX) line +5V UART RX FCPM UART receive line (RX) to connect to external transmit (TX) line ...
- Page 8 Assembly and connection Assembly and connection Fault codes = See section 7 Battery Thermistor Connector Code Description THERM1 + 80000000 Stack OT #1 Stack temperature 1 above limit THERM1 – 40000000 Stack OT #2 Stack temperature 2 above limit – 20000000 Battery UV Battery voltage below limit...
-
Page 9: Hydrogen Connection
Hydrogen connection Start-up First time only – the hydrogen feed hose can be 1 Hold the FCPM power button for more than 2.5 seconds. The LED will blink red twice shortened depending on your UAV build. then begin to blink green. -
Page 10: Emergency Battery Usage During Flight
If the on-board battery has been used for >1 minute at the end of a flight (i.e. fuel has been allowed to run low – indicated by flashing RED LED on FCPM) it is advisable to Fuel Cell Power Module State State LED Condition disconnect the battery from the FCPM (as per above instruction) and ‘balance charge’... -
Page 11: Faults
Tank pressure < limit 2.00 Start Tank Pressure 2 Output negative relative to 0V – with two FCPM in series, there will be a allowing a start of the system Limit = 6barg bottom leg FCPM (negative connected to 0V) and a top leg FCPM which will... -
Page 12: Contact Intelligent Energy Product Support
External battery with ideal diode (higher peak power) In a similar way to connecting two FCPMs in parallel with diodes, it is possible to connect an FCPM in parallel with an external power source (i.e. 6S battery FCPM 1 pack) to increase peak power. It should be understood that the FCPM will –... -
Page 13: Eu Declaration Of Conformity
Energy’s business and its technology. This publication and its contents do not include all details which may be relevant to particular circumstances and should not be regarded as being a complete source of Information. To the fullest extent permitted by law, Intelligent Energy offers no warranty as to the accuracy of the content of this publication, shall not be liable for the content of this publication and no element of this publication shall form the basis of any contractual relationship with a third party.
