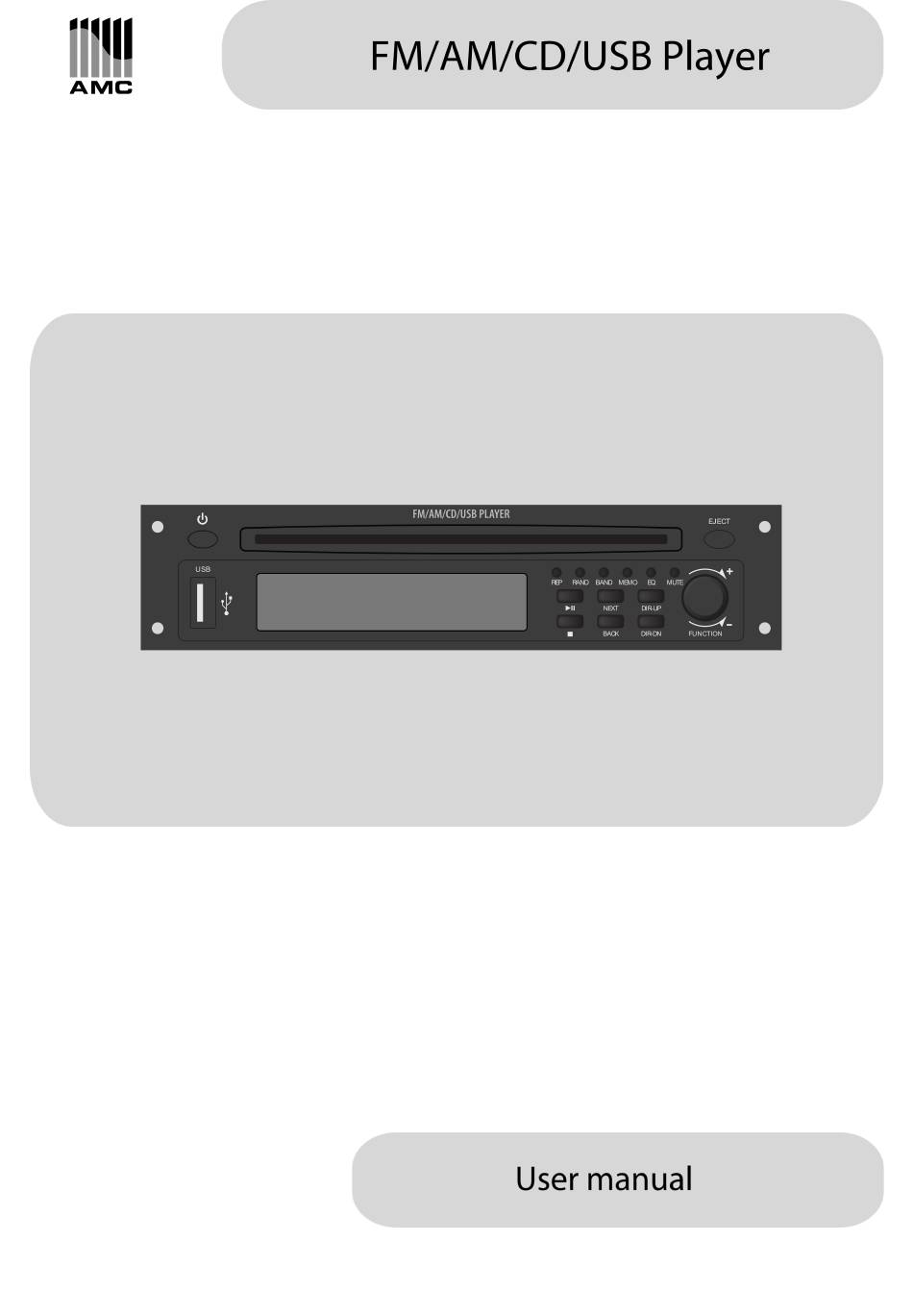

Summary of Contents for AMC FM/AM/CD/USB Player
- Page 2 Important Do not install this equipment in a confined space such as a book case or similar unit. The apparatus should not be dripped or splashed and no objects filled with liquids, such as vases, should not be placed on the apparatus.
-
Page 3: Table Of Contents
CONTENTS: Before you start Introductions Installation Accessories Operation Front panel Operation Specifications General... -
Page 4: Introductions
Introductions This FM/AM/CD/USB Player is fully designed for compressed audio files supporting and FM/AM receiving. RDS function is available too. Installation 1. Unplug amplifier from the main power and remove the top and slot covers. 2. Insert module in to amplifier and mount the antenna connector in to rear panel if module have radio tuner. -
Page 5: Front Panel
Front Panel 1. USB slot 9. DIRRY DOWN button (preset 6 in tuner mode) 2. Power button 10. DIRRY Up button (preset 5 in tuner mode) 3. CD slot 11. Function buttons ( preset 3 (REP) and preset 4 4. Display (BAND) in tuner mode) 12. - Page 6 BAND BUTTON RADIO MODE: Each band is toggled cyclically by pressing this key FM1-FM2-FM3-MW1-MW2. NEXT/BACK RADIO MODE: When pressed short, these keys are operated as seek tuning mode. When pressed longer than 1 sec., they are operated as manual tuning mode. CD/USB PLAYER MODE: When pressed short, they are operated as TRACK UP or TRACK DOWN mode.
-
Page 7: Specifications
Signal to noise radio >60dB MW SECTION Frequency range 522-1620KHz Channel step 9 KHz Intermediate frequency 450KHz Sensitivity Signal to noise radio >50dB CD/USB PLAYER SECTION Signal to Noise Ratio >60dB Frequency Response 20Hz-20KHz AMC is a registered trademark of AMC Baltic www.amcpro.eu...
