iTracker GPS Tracker User Manual

Gsm/gprs/gps portable tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

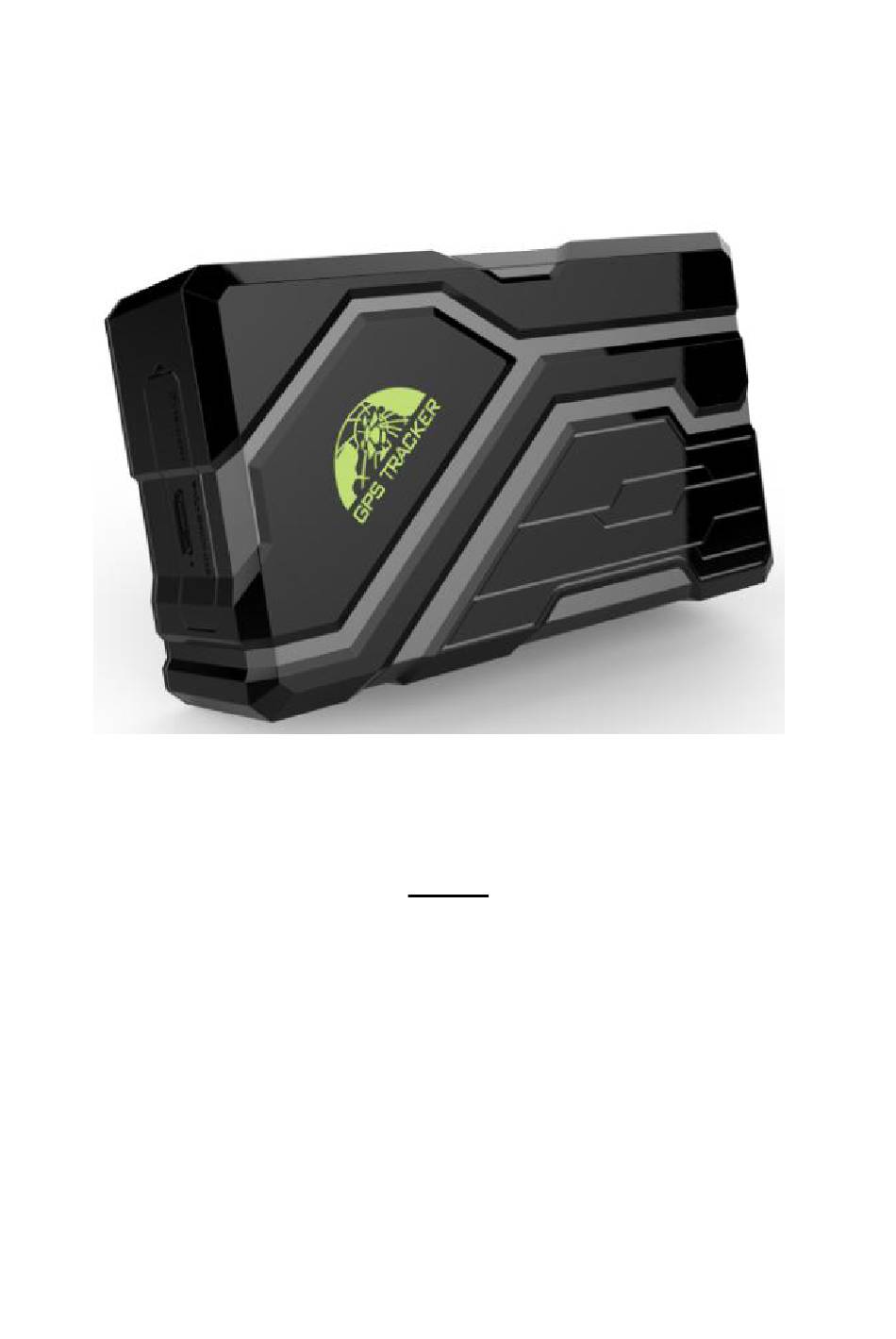

GSM/GPRS/GPS Portable Tracker
User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes
no responsibility for any errors or omissions in this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS Tracker and is the answer not in the manual?

Questions and answers

Summary of Contents for iTracker GPS Tracker

  • Page 1 GSM/GPRS/GPS Portable Tracker User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    Content Introduction..............................2 Hardware Description............................2 Specifications..............................2 Instructions for web platform and mobile App....................3 Insert SIM card, turn on the device........................7 Function introduction............................8 6.1. Initialization.............................8 6.2. Change Password............................ 8 6.3. Add and Delete Authorized phone number..................... 8 6.4. Single tracking............................9 6.5. Auto track continuously..........................

  • Page 3: Introduction

    1. Introduction 1.1. This tracker is based on the GSM / GPRS network and GPS satellite positioning system to track and monitor remote target by SMS or internet. 1.2. Features 1.2.1. Waterproof Grade IP66. 1.2.2. Strong magnet to absorb to vehicle firmly. 1.2.3.

  • Page 4: Instructions For Web Platform And Mobile App

    Content Specifications DIM. 106mm x 63mm x 37.5mm Weight 343g Network GSM/GPRS Band 850/900/1800/1900Mhz GPS sensitivity -165dBm GPS Accuracy Cold starts: 30s Time To First Fix Aided starts: 5s Reacquisition: 1s 110－220V input Charger voltage 5V output Battery Chargeable 3.7V 10000mAh Li-ion battery Storage Temp.
  • Page 5 1.choose the right server to login in 2.Validate your IMEI is valid or not 3. Click "register". Pop-up a dialog box, register an account 4.2. Login 4. Input the newly registered user ID and password, click "login" 4.3. Add a terminal...
  • Page 6 5. add terminal 6. add terminal 7. enter IMEI 8.Device name 9. Choose icon 10. Save 11. The newly registered device is offline in grey color 4.4. Configure your tracker to web platform to track it online Step 1：Set APN，refer to 6.13.1 Step 2：Set GPRS user name and password，refer to 6.13.2 Step 3 ：...
  • Page 7 4.5. If the tracker is always offline (grey color), make sure the SIM card subscribe the GPRS service, and the credit is enough to surf the Internet, you can use phone to test if the SIM card can surf the Internet. Besides, please check the APN, user name, password, IP, port settings are correct, refer to 6.11.

  • Page 8: Insert Sim Card, Turn On The Device

    5. Click “the online device” to operate the device 5. Insert SIM card, turn on the device Attention: Please be sure to open the voice call function, caller display function and data flow function, and PIN code is off, no call forwarding function. The recommended data flow package is not less than 30MB per month.

  • Page 9: Function Introduction

    battery is about 7-9 hours. Warning: Lithium batteries contain harmful chemical constituents and may explode, please do not slam, stab or put into the fire. When you first use, bring the device outdoors, wait for the device to search for GSM and GPS signals, and in normal conditions the lights of the device will flash once every 3 seconds.

  • Page 10: Single Tracking

    number” to delete the authorized number. 6.3.5. If you want to track the target when it enters into another country, you must add the country code before the cell phone number. You should authorize your number in international format as follows: “admin123456 008613322221111” to tracker to set 13322221111 as an authorized number.

  • Page 11: Track With Unlimited Times Upon Distance

    6.5.3. Track with unlimited times upon distance 6.5.3.1. Send SMS command “Distance+password+space+distance value”, tracker will reply “Distance ok”, and then tracker will track according to this distance value interval. E.g Send “Distance123456 0050”, that means the distance interval is 50 meter, the value must be 4 digits Arabic numbers.

  • Page 12: Decide How Many Times Of Alarm Message

    6.8. Decide how many times of alarm message For those alarm messages sent in cycle, you can decide how many SMS messages of alarm to be sent. Send SMS “ xtime+password+005 “ to tracker, alarm message will be sent 5 times once alarms are triggered . Alarm SMS will be sent 5 times by default.

  • Page 13: Over Speed Alarm

    distance is 200m), it will send SMS “Move+ latitude & longitude” to the authorized numbers. 6.9.3.2. Cancel: Send SMS “nomove+password” to deactivate the movement alarm. 6.9.4. Over speed alarm 6.9.4.1. Set up: Send SMS “speed+password+space+080” to the unit (suppose the speed is 80km/h), and it will reply “speed OK!”.

  • Page 14: Always Online

    GPRS is always online, tracker will be The target need to 10000*0.9 (Battery Always intelligent to shutdown some be tracked by self-loss) /4.5mA/24h=83 online components to save power during the real-time. days period which doesn’t need to track. GPRS will be offline if it is Sleep if the target 10000*0.9(Battery Sleep by...

  • Page 15: Sleep By Time

    shock。 6.10.3. Sleep by time Send "sleep+password+space+time", tracker will reply "sleep time ok", if no operations in 3 minutes, tracker will sleep, GPS module shuts down, and LED will be off too. Calling or SMS can wake up the tracker. 6.10.4.

  • Page 16: Check Imei

    GPS: OK/NO GPS GSM Signal: 1-32 the higher, the better APN: cmnet IP: 104.250.138.146 PORT: 9000 6.12. Check IMEI Send SMS "imei+password" to the tracker. For example, Send SMS "imei123456" to the tracker device, an IMEI number in 15 digits will be returned.。 6.13.

  • Page 17: Cautions

    means tracker have switched to work in GPRS mode. 6.13.4.2.TCP/UDP Switch SMS command: “GPRS+password,0,0” is used to switch to TCP mode, TCP is the default mode. SMS command: “GPRS+password,1,1” is used to switch to UDP mode. 6.13.4.3.Send SMS command: “SMS+password” to tracker, it will reply “SMS OK!”, and switch back to SMS mode 7.
