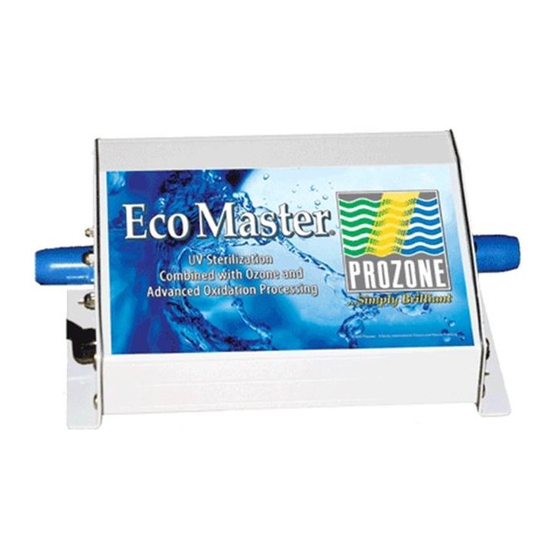

ECO MASTER
ADVANCED OXIDATION PURIFICATION
INSTALLATION AND OPERATION MANUAL
READ AND FOLLOW ALL INSTRUCTIONS.
WARNING: CONFIRM THE ELECTRICAL POWER IS SHUT OFF AT THE MAIN BREAKER
BEFORE INSTALLING THE ECO MASTER.
WARNING: SERVICE SHOULD ONLY BE PERFORMED BY A QUALIFIED POOL SERVICE
PROFESSIONAL TO AVOID RISK OF ELECTRICAL SHOCK, FIRE, OR INJURY.
WARNING: FOLLOW ANY APPLICABLE ELECTRICAL CODES.
WARNING: REPLACE DAMAGED CORD IMMEDIATELY TO AVOID RISK OF ELECTRICAL
SHOCK.
WARNING: MOUNT THE ECO MASTER WHERE IT IS INACCESSIBLE TO CHILDREN, TO AVOID
RISK OF INJURY.
WARNING: MOUNT THE ECO MASTER WHERE IT IS INACCESSIBLE TO ANYONE IN THE SPA.
NEVER ATTEMPT SERVICING WHEN WET.
WARNING: SHORT TERM INHALATION OF HIGH CONCENTRATIONS OF OZONE AND LONG
TERM INHALATION OF LOW CONCENTRATIONS OF OZONE CAN CAUSE SERIOUS HARMFUL
PHYSIOLOGICAL EFFECTS. DO NOT INHALE OZONE GAS PRODUCED BY THIS DEVICE.
VOLTAGE MUST BE DETERMINED BEFORE ECO MASTER IS INSTALLED.
DO NOT BURY THE CORD.
CONNECT ONLY TO A PROPERLY GROUNDED, GROUNDING RECEPTACLE.
A WIRE CONNECTOR IS PROVIDED ON THE UNIT TO CONNECT A MINIMUM NO. 8 AWG
SOLID COPPER CONDUCTOR BETWEEN THE ECO MASTER AND ANY METAL EQUIPMENT,
METAL ENCLOSURES OF ELECTRICAL EQUIPMENT, METAL WATER PIPES, OR CONDUIT WITHIN
FIVE FEET OF THE UNIT.
®
OZONE WATER PURIFICATION SYSTEMS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
PROZONE WATER PRODUCTS 3004 11TH AVENUE HUNTSVILLE, AL 35805 (256) 539-4570 www.prozoneint.com
Advertisement
Table of Contents
Related Manuals for Prozone ECO MASTER
Summary of Contents for Prozone ECO MASTER
-
Page 1: Important Safety Instructions
WARNING: MOUNT THE ECO MASTER WHERE IT IS INACCESSIBLE TO CHILDREN, TO AVOID RISK OF INJURY. WARNING: MOUNT THE ECO MASTER WHERE IT IS INACCESSIBLE TO ANYONE IN THE SPA. NEVER ATTEMPT SERVICING WHEN WET. WARNING: SHORT TERM INHALATION OF HIGH CONCENTRATIONS OF OZONE AND LONG TERM INHALATION OF LOW CONCENTRATIONS OF OZONE CAN CAUSE SERIOUS HARMFUL PHYSIOLOGICAL EFFECTS. - Page 2 6. Shock the spa. The use of Calcium Hypochlorite is recommended. Metals 0 ppm 7. Eco Master contains an ozonator, injector, and check Nitrates/Phosphates < 30 ppm valve. Remove any vacuum source (such as an injector) already installed on the spa.
- Page 3 ELECTRICAL The Eco Master System is designed to operate on either 120 or 240 VAC, 50/60 Hz. Wire system to the circulation pump or timer. The Eco Master and circulation pump should start simultaneously. Use N.E.C or local code...
-
Page 4: Troubleshooting Guide
PROBLEM PROBABLE CAUSE REMEDY LOOSE WIRING CHECK ALL WIRING CONNECTIONS NO LIGHT FROM PROZONE UNIT CHECK VOLTAGE AND POWER SOURCE COMPATIBILITY NO POWER TO UNIT DEFECTIVE LAMP OR OTHER INTERNAL COMPONENT RETURN UNIT TO DEALER CHECK SUPPLY LINE AND RETURN LINE PRESSURES. -
Page 5: Limited Warranty
In order to receive warranty service, a Returned Goods Authorization (RGA) number must be obtained from Prozone before returning the product. The RGA number must be issued prior to end of warranty period. Product must be returned within 30 days of issuance of the RGA number. If the product is not received by Prozone within 30 days of RGA number issuance, another RGA number must be obtained.
