GSM-INTERCOM OPERATION MANUAL
V20170702
Estate Swing Wireless Cellular 3GSM 4-in-1 Intercom (EST-200)
INSTALLATION MANUAL
Before installing this equipment, please read this full manual.
Ensure that there is good GSM network reception at the location where it will be installed

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EST-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Estate Swing EST-200

  • Page 1 GSM-INTERCOM OPERATION MANUAL V20170702 Estate Swing Wireless Cellular 3GSM 4-in-1 Intercom (EST-200) INSTALLATION MANUAL Before installing this equipment, please read this full manual. Ensure that there is good GSM network reception at the location where it will be installed...

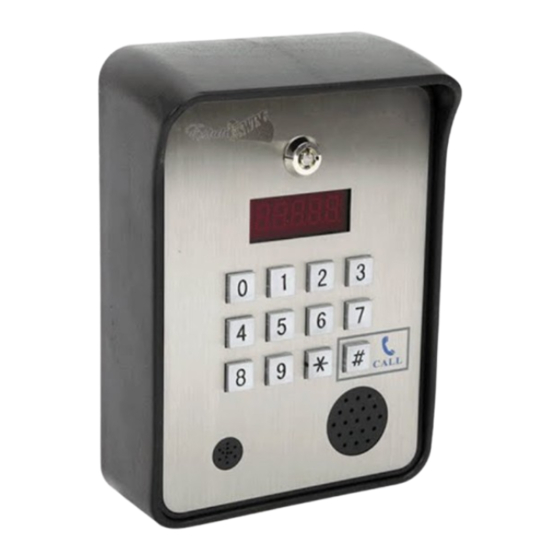

  • Page 2 GSM-INTERCOM OPERATION MANUAL V20170702 FRONT​ ​ P ANEL​ ​ D ESCRIPTION: Input the house number and press # to start calling Press * to cancel the calling Insert the key,Turn Left and Pull to open the box, Push into the panel and Turn Right to lock the front pane When power on, the numbers of dots displayed on the front panel indicates the level of the GSM signal from 1 to 5 (1 is weak signal, 5 is excellent signal) GSM Led ​...
  • Page 3 GSM-INTERCOM OPERATION MANUAL V20170702 4) Switch the on-board Power switch to "ON" position and allow 20-30 seconds for the unit to boot up and detect the network. Once successful connection has been made, the display panel will show the "- - - - -" at each LED panel.if the GSM network reception is weak,then will only show two to three Dash lines.
  • Page 4 GSM-INTERCOM OPERATION MANUAL V20170702 If you input two different new password the reply would be : Error New Password PROGRAMMING​ ​ C ALL LIST: Program​ ​ t he​ ​ n umbers​ ​ y ou​ ​ w ish​ ​ t he​ ​ u nit​ ​ t o​ ​ d ial​ ​ w hen​ ​ t he​ ​ " #" button​ ​ i s​ ​ p ressed​ ​ t o​ ​ d ial in​ ​ s equence Up to a maximum of 2 numbers for each house number.
  • Page 5 GSM-INTERCOM OPERATION MANUAL V20170702 • To add a number, the command is the following: #PWD123456#WHL01=5553143815 Acknowledge ​ w ould​ ​ b e​ ​ : ​ ​ W HL01​ ​ S ET​ ​ T O​ ​ 5 553143815​ ​ O K Where 01 is the position in the list and (555) 314-3815 is the number enabled.
  • Page 6 GSM-INTERCOM OPERATION MANUAL V20170702 signal level your GSM-KEY is receiving. It ranges from 0 to 32 (if it is 0 we doubt it will ever answer...). You should have a signal above 12 to be sure of being able to open the gate in any condition. Better if above 16. You should add an external antenna if this is not the case, or eventually even change operator with another that serves your area better.
  • Page 7 GSM-INTERCOM OPERATION MANUAL V20170702 Q. The audio quality that can be heard on the remote telephone is poor or humming (buzzing). A. A small amount of GSM buzz can be considered normal on GSM intercoms, but not so much that causes inability to hear the person speaking.
