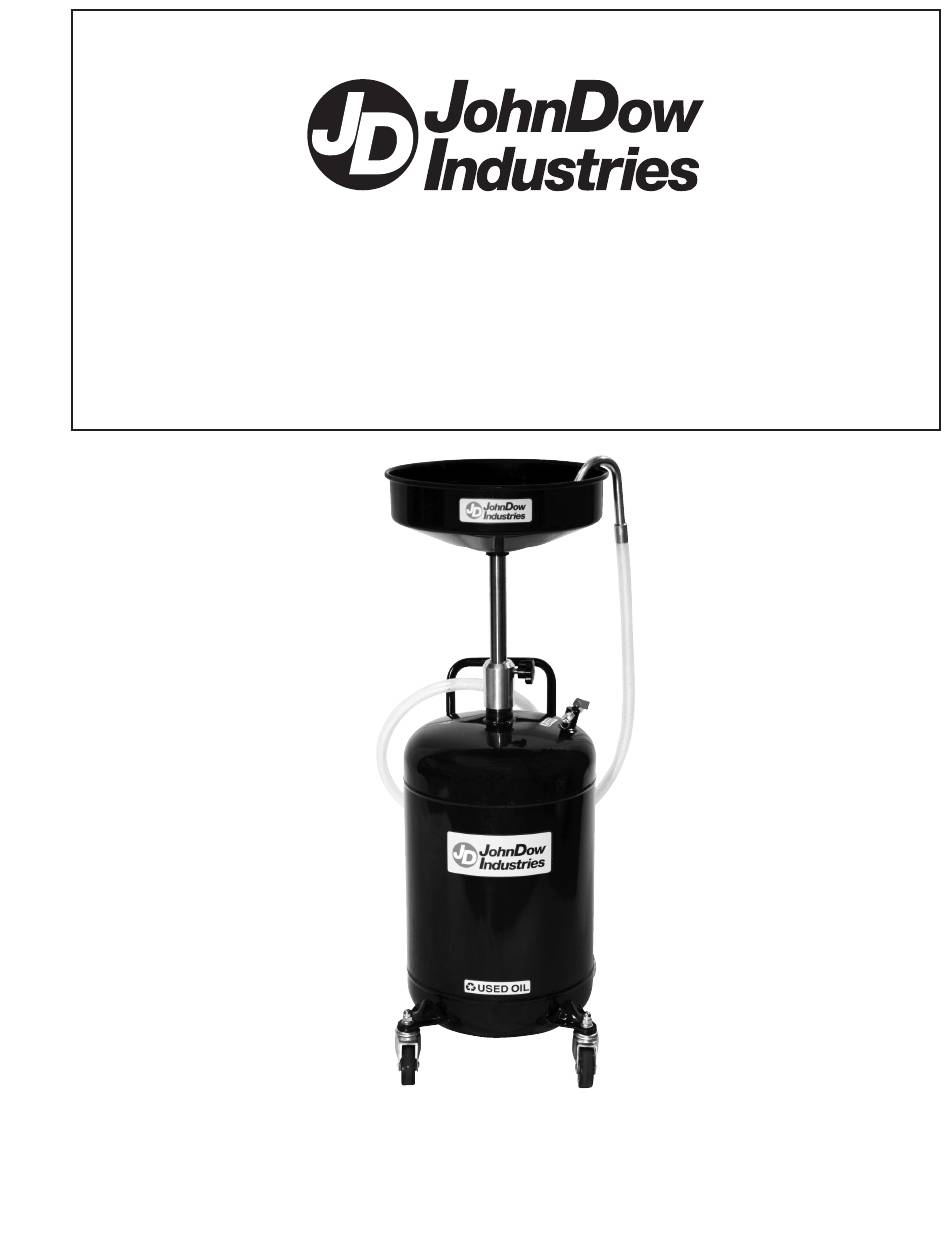

- Page 1 ™ 18-Gallon Self-Evacuating Oil Drain Model Model: JDI-18DC Operator’s Manual JohnDow Industries, Inc. 151 Snyder Ave. www.johndow.com Barberton, OH 44203 customerservice@johndow.com REV 9/11/17...
- Page 2 OPERATOR’S MANUAL JDI-18DC Safety & Warning Instructions READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT It is responsibility of the employer to place this information in the hands of the operator. Keep for future reference. • Wear proper safety equipment and clothing, safety glasses/goggles.
- Page 3 OPERATOR’S MANUAL JDI-18DC Tools Required: 1/4” NPT quick connector for shop air mm hex wrench connections (not included) 3/4” (19 mm) wrench or socket Assembly Instructions 1. Install 4 casters, washers, lock washers. Tighten the nuts until split lock washer is fully flat.
- Page 4 OPERATOR’S MANUAL JDI-18DC Replacement Parts: Item Description Qty Part No. Item Description Qty Part No. 14” Funnel, center Evacuation hose 20DCE-2 18DC-FUN mount Down tube assembly Pressure relief valve 20DCE-4 DTA-25 (tube, collar, knob) On/off valve AV-38 Adjustment knob 20DCE-6...
