Summary of Contents for Foxtron DALImiw30
-

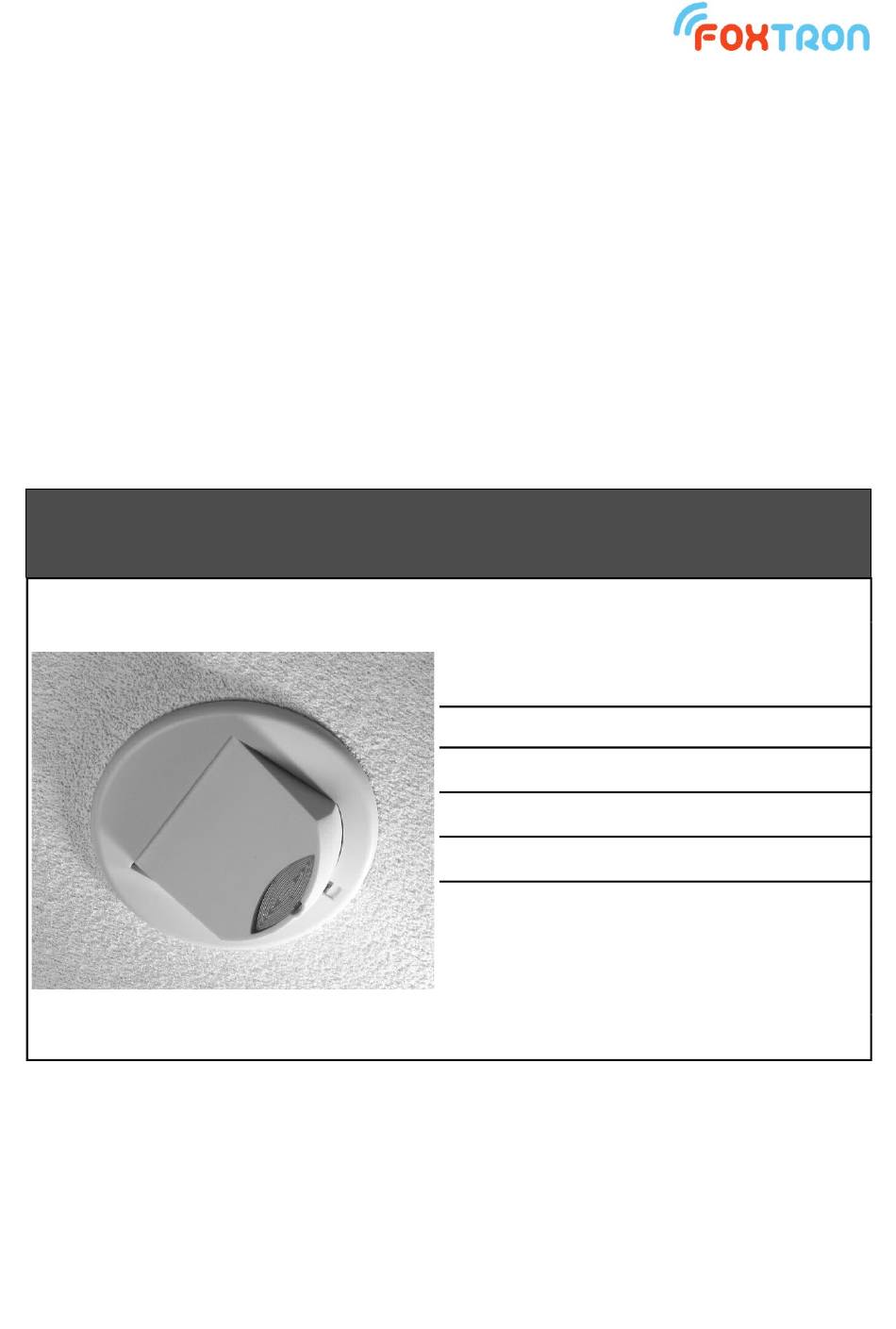

Page 1: User Manual
User manual document version 2.0 for DALImiw30 since versions: firmware 1.6 and hardware 4.0 DALImiw30 Microwave sensor up to 2,6 meters height Illuminance sensor Regulation to constant level Range 0-1000 lx Powered from DALI bus or 230V Can power DALI bus... - Page 2 DALImiw30 is microwave combined motion and illumination sensor. It can regulate one group of lights on the DALI bus. This group is controlled directly by DALImiw30 – no other master is required. Based on movement the lights can be regulated to various lux levels.
- Page 3 Control of DALImiw30 is done by standard DALI messages. Their meaning for DALImiw30 is shown in following table: DALI command Meaning to illuminance sensor DALImiw30 Direct arc power control, Off, Up, Down, Step up, Step down, Recall max level, Recall min...
-
Page 4: Motion Sensor
DALImiw30 allows direct control of luminaires to a constant level of illumination.If the motion sensor is also on, it is possible to set various illumination values for the presence and absence value. The light sensor can be deactivated and the motion sensor will light the luminaire to a constant preset value instead of the ambient light control. - Page 5 Disable – Motion detection is off. Possibility to send command when the power supply is connected to DALImiw30. Power on behaviour No action – Power on function is off.
- Page 6 ~230V. If the DALI bus is powered by any other supply, terminals OUT+ and OUT- are not connected. External input Lex is external input to which can be external sensor connected (which is not connected to DALI bus). Using those external sensors the detection range of DALImiw30 can be extended. www.foxtron.eu...
-
Page 7: Installation
Installation Sensor DALImiw30 has two basic installation possibilities: 1) Cavity ceiling installation 2) Surface installation using special mounting kit It is necessary to choose sensor position with respect to following conditions: • No light source (controlled / not controlled by sensor) should point directly to sensor •... - Page 8 Detection diagrams www.foxtron.eu...
- Page 9 Dimensions [mm] tel: +420 274 772 527 e-mail: info@foxtron.cz web: www.foxtron.eu www.foxtron.eu...
