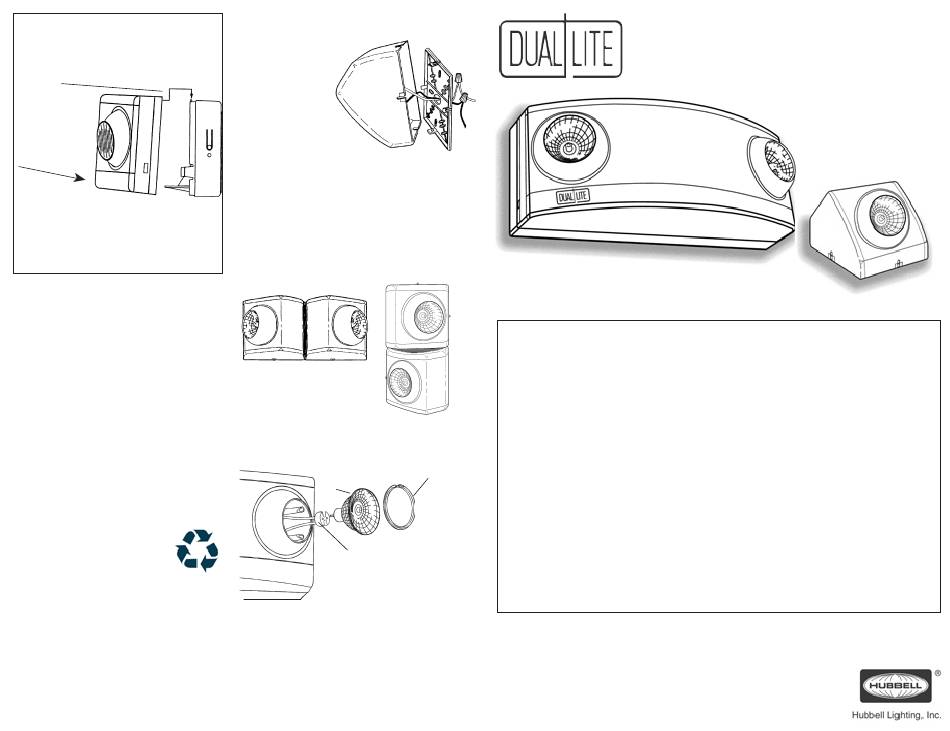

DUAL LITE LZ Series Installation Instructions

Final Assembly
1.
Aim lamp heads towards center of unit and
dress wires neatly to prevent pinching.
2.
Align housing slots over back plate tabs.
3.
Pivot housing
and snap
closed.
4.
Energize unit.
Charge a minimum of 24 hours
prior to testing.
5.
Press test switch and hold. Aim lamp
heads for proper light distribution.
TROUBLE SHOOTING
AC-On Light does not illuminate
• Check AC wiring connections.
Emergency lamps do not work
• Battery is disconnected. Connect red
lead from PC board to positive (+) battery
terminal and yellow lead from PC board
to negative (–) battery terminal and charge
before testing.
• Check wiring connections.
MAINTENANCE
Dual-Lite units should be tested and maintained
in accordance with National Electrical Code and
NFPA 101 Life Safety Code requirements. It is
recommended that emergency lighting units be
tested for 30 seconds once a month and for 90
minutes once a year.
RECYCLING INFORMATION
All thermoplastic parts are recyclable.
All cartons contain recycled materials.
Please recycle.
NOTICE:
Units contain rechargeable batteries which must
be recycled or disposed of properly.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright © Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice.
Printed in U.S.A.
Matching Remote Lighting
Fixtures
1. Carefully size wire
conductors from
emergency
unit to remote
fixture(s) using a
voltage drop table.
2. Remove appropriate
knockouts in remote
fixture mounting plate, feed
conductors through center hole.
3. Mount plate to approved electrical box using
screws supplied with box.
4. Make connections to fixture lamp leads using
wire nuts or crimp connectors.
5. Push connectors back through hole in mount-
ing plate into electrical box.
6. Orient fixture in desired position (fixtures can
be rotated in 90 0 increments to four positions).
7. Set fixture on backplate and tighten lock-
ing screws. Aim lighting head(s) by rotating
eyeball to desired position.
Note:
Twin head remote fixtures can
be mounted horizontally or
vertically for more accurate
illumination.
LAMP REPLACEMENT
CAUTION: Halogen lamps operate at high tem-
peratures. Allow defective lamp to cool completely
before attempting replacement.
Retaining ring
MR-16 halogen
lamp
2-pin lamp socket
1. Remove plastic lamp retaining ring.
2. Pull defective lamp from lighting head assembly
and unplug lamp from socket.
3. Plug replacement lamp into socket and install
lamp into lighting head assembly.
4. Re-install lamp retainer ring (flat side towards
lamp).
0603115 C
Halogen cycle lamps operate at high temperatures.
Do not store or place flammable materials near lamp.

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Do not use outdoors.
2. Do not mount near heaters or hot surfaces.
3. Equipment should be mounted in locations and at heights where it will not readily be
subjected to tampering by unauthorized personnel.
4. The use of accessory equipment not authorized by the manufacturer may cause an
unsafe condition.
Caution: Halogen cycle lamps are used in this equipment. To avoid shattering: Do not op-
erate lamp in excess of rated voltage, protect lamp against abrasion and scratches and
against liquids when lamp is operating, dispose of lamp with care.
5. Do not use this equipment for other than its intended purpose.
6. Service of this equipment should be performed by qualified service personnel.
SAVE THESE INSTRUCTIONS
This product contains chemicals known to the state of California to cause cancer, birth defects, and/or other reproductive
harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
9/08
LZ High Capacity Series
Emergency Lighting Units
Installation Instructions
Warning:
