Sunell SN-TPC4201AT II User Manual

Thermal imaging integrated network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

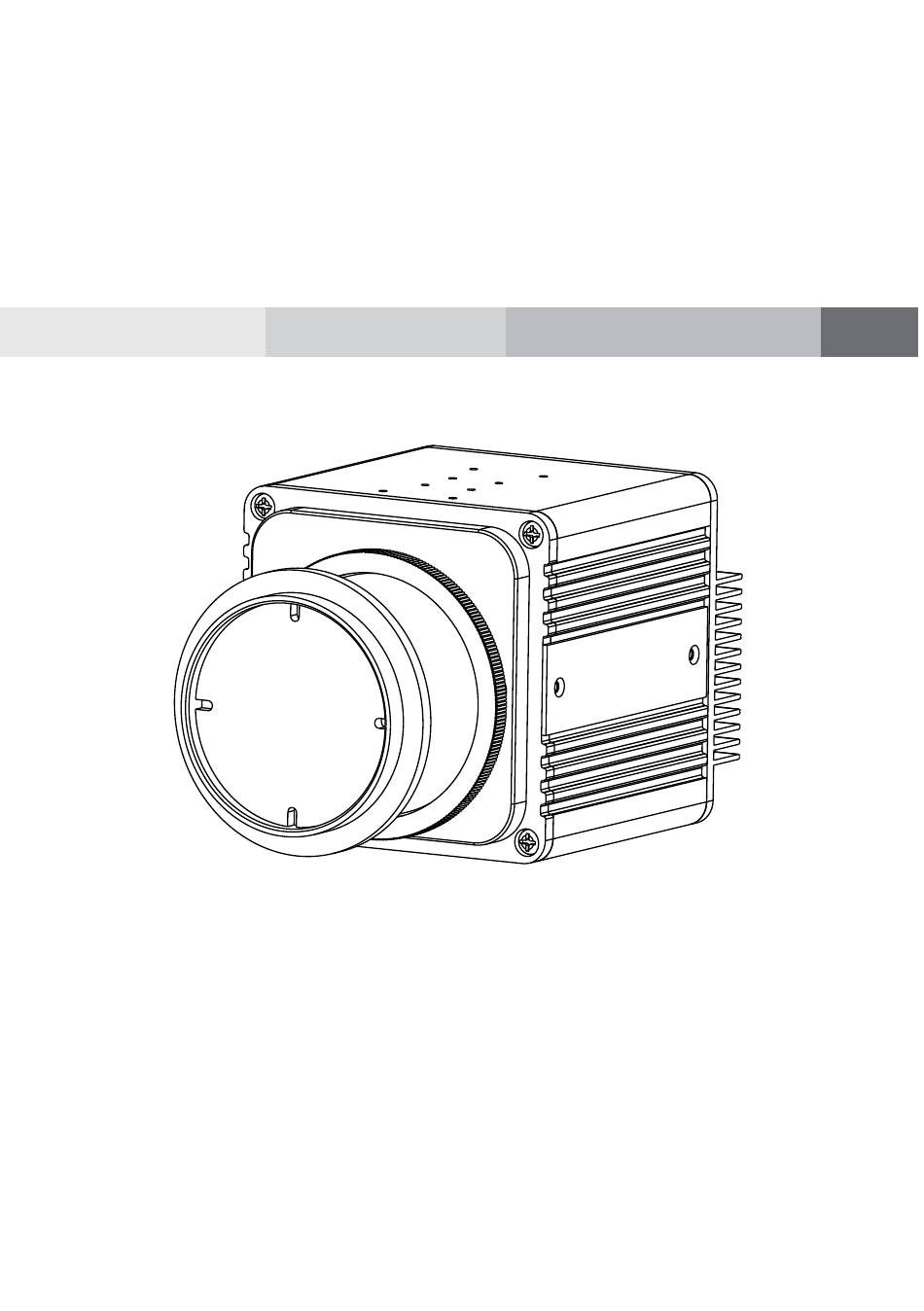

Thermal Imaging Integrated Network Camera
User Manual
Issue
V1.0
Date
2018-05-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN-TPC4201AT II and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunell SN-TPC4201AT II

  • Page 1 Thermal Imaging Integrated Network Camera User Manual Issue V1.0 Date 2018-05-10...
  • Page 2 Issue V1.0 (2018-05-10)
  • Page 3 Thermal Imaging Integrated Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 Thermal Imaging Integrated Network Camera Precautions User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device.
  • Page 5 Thermal Imaging Integrated Network Camera User Manual Precautions  Use a soft and dry cloth to clean the device body. In case that the dirt is hard to remove, use a dry cloth dipped in a small amount of mild detergent and gently wipe the device, and then dry it again.

  • Page 6: Table Of Contents

    Thermal Imaging Integrated Network Camera Contents User Manual Contents 1 Product Overview ....................1 1.1 Thermal Imaging Principles and Advantages ..............1 1.2 Device Structure ......................1 1.3 Cable Connection ......................2 1.4 Functions and Features ....................4 2 Device Dimensions ....................5 3 Installation ........................
  • Page 7 Thermal Imaging Integrated Network Camera User Manual Contents B Common Emission Rate ..................40 Issue V1.0 (2018-05-10)

  • Page 9: Product Overview

    Thermal Imaging Integrated Network Camera 1 Product Overview User Manual Product Overview 1.1 Thermal Imaging Principles and Advantages For any object, as long as its temperature is above the absolute zero (-273.15°C), although the object does not give out light, it can radiate infrared. The infrared is also known as thermal radiation.

  • Page 10: Cable Connection

    Thermal Imaging Integrated Network Camera 1 Product Overview User Manual Figure 1-1 Appearance and interfaces of the thermal imaging integrated network camera Table 1-1 Interfaces Physical Interface Connection Power indicator Indicates the power status Connector Connector of multi-connector combination cable Reset button The configuration resumes to the factory settings (RESET)
  • Page 11 Thermal Imaging Integrated Network Camera 1 Product Overview User Manual Figure 1-2 Multi-connector combination cable Table 1-2 Multi-connector combination cable Functions Connection BNC video Sends analog video signals. You can connect the camera to a TV monitor through this port to view analog videos.

  • Page 12: Functions And Features

    Thermal Imaging Integrated Network Camera 1 Product Overview User Manual 1.4 Functions and Features  Using the uncooled infrared focal plane sensor  Detecting the infrared wavelength ranging from 8 um to 14 um  400*300 pixels  High thermal sensitivity, reaching 50mK ...

  • Page 13: Device Dimensions

    Thermal Imaging Integrated Network Camera 2 Device Dimensions User Manual Device Dimensions Figure 2-1 shows the dimensions of the thermal imaging integrated network camera. Figure 2-1 Dimensions (unit: mm) For 25mm prime lens Issue V1.0 (2018-05-10)

  • Page 14: Installation

    Thermal Imaging Integrated Network Camera 3 Installation User Manual Installation 3.1 Preparations You may need the tools and accessories shown in Table 3-1 during the installation (you need to prepare the tools by yourself, and the accessories are in the package of the camera).
  • Page 15 Thermal Imaging Integrated Network Camera 3 Installation User Manual Figure 3-1 Fix the installation block Installation block Step 2 Fix the installation block and mounting bracket, as shown in Figure 3-2. Figure 3-2 Fixing installation block and mounting bracket Step 3 Fix the mounting bracket on the wall, as shown in Figure 3-3.
  • Page 16 Thermal Imaging Integrated Network Camera 3 Installation User Manual Figure 3-3 Fix the mounting bracket Step 4 Focusing. (1) Focusing with focusing fixture Grasp the handle portion of the fixture, and focus along the direction of arrows, as shown in Figure 3-4. Issue V1.0 (2018-05-10)
  • Page 17 Thermal Imaging Integrated Network Camera 3 Installation User Manual Figure 3-4 Focusing with focusing fixture (2) Focusing with focusing screw Insert the focusing screw into the screw hole and focus along the direction of arrows as shown in Figure 3-5. Figure 3-5 Focusing with focusing screw ----End Issue V1.0 (2018-05-10)

  • Page 18: Quick Configuration

    Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.121) in the address box, and press Enter.

  • Page 19: Main

    Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual logout To logout of system, click in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view real-time video, set parameter, Video parameter, Video control, PTZ control, PTZ Configure and log out of the system.

  • Page 20: Changing The Password

    Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual Element Description alarm setting, and privacy mask function. Alarm icon When the device generates an alarm, the alarm icon is displayed. You can click to view the alarm information. NOTE When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system.

  • Page 21: Browsing Video

    Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual Figure 4-3 Modify Password dialog box The change password page will be displayed if you don’t change the default password when you login the system for the first time. Step 2 Enter the old password, new password, and confirmation password.
  • Page 22 Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual Figure 4-4 Adding the a trusted site Step 2 In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-5.

  • Page 23: Install Plugins

    Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual The login page is display when the control is loaded. 4.4.1 Install plugins You will be prompted with a message “click here to use short delay Plugin for Live Video” as shown in Figure 4-6 when you log in to the web management system for the first time.
  • Page 24 Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual  IP protocol  IP address  Subnet mask  Default gateway  Dynamic Host Configuration Protocol (DHCP)  Preferred Domain Name System (DNS) server  Alternate DNS server  Procedure Step 1 Choose Configuration >...
  • Page 25 Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual Parameter Description Setting DHCP The device automatically [Setting method] obtains the IP address from the Click the option button. DHCP server. NOTE To query the current IP address of the device, you must query it on the platform based on the device name.
  • Page 26 Thermal Imaging Integrated Network Camera 4 Quick Configuration User Manual Step 3 Click OK.  If the message "Apply success" is displayed, click OK. The system saves the settings. The message "Set network pram’s success, Please login system again" is displayed.

  • Page 27: Thermal Setting

    Thermal Imaging Integrated Network Camera 5 Thermal Setting User Manual Thermal Setting 5.1 Temperature Parameters Temperature parameters include: temperature unit, ambient type, ambient temperature, cavity temperature, correctional coefficient and area temperature display mode. Operation Procedure Step 1 Choose Configuration >Thermal >Temperature Parameters. The Temperature Parameters page is displayed, as shown in Figure 5-1.

  • Page 28: Temperature Area

    Thermal Imaging Integrated Network Camera 5 Thermal Setting User Manual Parameter Description Setting Ambient Type The ambient of camera. [Setting method] Outside and Inside are Select a value from the available. drop-down list box. Inside suggest to be selected [Default value] when the ambient temperature Outside change frequently.
  • Page 29 Thermal Imaging Integrated Network Camera 5 Thermal Setting User Manual Figure 5-2 Temperature area and alarm configuration Step 2 Set the parameters according to Table 5-2 Table 5-2 Temperature area and alarm configuration Parameter Description Setting Enable Enable the temperature area. [Setting method] Tick the enable button.
  • Page 30 Thermal Imaging Integrated Network Camera 5 Thermal Setting User Manual Parameter Description Setting Alarm Type Threshold alarm and [Setting method] Temperature difference alarm Select a value from the are available for alarm type. drop-down list box. [Default value] Threshold alarm Warning Value Camera will warn when the [Setting method]...
  • Page 31 Thermal Imaging Integrated Network Camera 5 Thermal Setting User Manual Step 2. Press and hold the left mouse button, and drag in the video area to draw a temperature area, as shown in Figure 5-3. Figure 5-3 Alarm Time Setting Interface Step 3.

  • Page 32: Schedule Linkage

    Thermal Imaging Integrated Network Camera 5 Thermal Setting User Manual 5.3 Schedule Linkage Operation Procedure Step 1 Choose Configuration >Thermal > Schedule Linkage The Schedule Linkage page is displayed, as shown in Figure 5-4 Figure 5-4 Schedule Linkage Step 2 Tick the output channel.

  • Page 33: Parameter Setting

    Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Parameter Setting 6.1 Sensor Configuration Interface Operation Procedure Step 1 On the Internet Explorer interface or the client software interface, select and right-click the surveillance image to the set, as shown in Figure 6-1. Figure 6-1 Sensor configuration Step 2 Choose Sensor.

  • Page 34: Setting Images

    Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Figure 6-2 Time segment interface Operation Procedure Step 1 Click in the lower left corner of Sensor Setting, and choose Debug Mode. Step 2 Tick Enable. Step 3 Set the Start Time Step 4 Set the End Time Step 5...
  • Page 35 Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Figure 6-3 Image setting interface Table 6-1 lists the image setting parameters. Table 6-1 Image setting parameters Parameter Description Setting The temperatures of the temperature fields detected by the thermal imaging camera are separately mapped to values ranging from 0 to 255 by the algorithm.

  • Page 36: Ffc Control

    Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Parameter Description Setting The sharpness of normal thermo graphic images is lower than the visible light and it is difficult to [How to set] use the normal thermo graphic images to Select by identify the original images of the targets.
  • Page 37 Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Figure 6-4 FFC control interface Table 6-2 lists the parameters on the FFC control interface. Table 6-2 Parameters on the FFC control interface Parameter Description Setting The internal of the thermal imaging camera may comprise mechanical action...

  • Page 38: Noise Reduction

    Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Parameter Description Setting ranges from 5 to 30 minutes. The temperature change of the camera is based on the temperatures collected by the internal temperature probe. The temperature of the camera sharply changes when the camera is powered on.

  • Page 39: Adjust Screen

    Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Figure 6-5 Noise reduction interface Table 6-3 lists the Noise reduction parameters. Table 6-3 Parameters on the Noise reduction interface Parameter Description Setting [How to set] Select from the drop-down list box. Decrease the image 2DNR noise.
  • Page 40 Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Figure 6-6 Adjust screen interface Table 6-4 describes the parameters on the Adjust screen interface. Table 6-4 Parameters on the Adjust the screen interface Parameter Description Setting Mode [How to set] Compared with images generated based on visible light, IR images boast the features of Select from the drop-...
  • Page 41 Thermal Imaging Integrated Network Camera 6 Parameter Setting User Manual Contrast It indicates the contrast between the bright [Setting method] part and the dark part of an image. As the Drag the slider. value increases, the contrast increases. [Default value] Brightness It indicates the total brightness of an image.

  • Page 42: Technical Specifications

    Thermal Imaging Integrated Network Camera 7 Technical Specifications User Manual Technical Specifications Table 7-1 lists the specifications of the thermal imaging integrated camera. Table 7-1 Technical specifications Type Parameter Description Detector type Uncooled infrared focal plane sensor Sensing mode Micro bolometer Pixel 400x300 Detector...
  • Page 43 Thermal Imaging Integrated Network Camera 7 Technical Specifications User Manual Type Parameter Description Black hot / white hot / rainbow / iron Polarity LUT bow (up to 17define optional) DVE Image Enhancement Continuous adjustable Auto/manual/external 2D/3D Function features Contrast Support Mirror Horizontal, Vertical, Picture Flip Outdoor, Indoor, Sky/Earth, Sea/Sky,...
  • Page 44 Thermal Imaging Integrated Network Camera 7 Technical Specifications User Manual Type Parameter Description Embedded WEB service, remote WEB management browsing and configuration over IE browser Remote upgrade and Support maintenance Supporting the international standard Integration Onvif and the third-party protocol Maximum user access Simultaneous access of 10 users to amount...
  • Page 45 Thermal Imaging Integrated Network Camera 7 Technical Specifications User Manual Type Parameter Description Operating temperature -10C to +55C Operating humidity RH90% MAX (no condensation) Installation mode 1/4” 20UNC mount block Dimensions 70*70*116.8 mm About 700g (25mm lens) Weight Issue V1.0 (2018-05-10)

  • Page 46: A Troubleshooting

    Thermal Imaging Integrated Network Camera A Troubleshooting User Manual Troubleshooting Common Possible Cause Solution Trouble  Unable to Network is not Connect the network cable of the camera to access the connected. the PC to check whether the network cable is in good contact.
  • Page 47 Thermal Imaging Integrated Network Camera A Troubleshooting User Manual Common Possible Cause Solution Trouble An error The data in the Delete the cache of the Internet Explorer. The occurs in cache of browser is steps are as follows (taking IE9 as an example): accessing not updated in time.
  • Page 48 Thermal Imaging Integrated Network Camera B Common Emission Rate User Manual Common Emission Rate Emission Rate The emission rate is the capability of an object to emit or absorb energy. An ideal transmitter provides an emission rate of emitting 100% of intake energy. An object with an emission rate of 0.8 can absorb 80% of intake energy, and reflect the remaining 20%.
  • Page 49 Thermal Imaging Integrated Network Camera B Common Emission Rate User Manual Nickel wire 187/368 Lead (99.9% purity, No 127/260 0.06 oxidized) Copper 199/ 90 0.18 Cobalt 599/111 0.19 199/390 0.52 Steel 599/1110 0.57 Tinned iron sheet (Light) 28/82 0.23 Brass(High-polish) 247/476 0.03 Brass (Tough rolled, polished...
  • Page 50 Thermal Imaging Integrated Network Camera B Common Emission Rate User Manual Frozen soil 0.93 Brick (Red, rough) 21/70 0.93 Brick (Unglazed, rough) 1000/1832 Carbon (T - carbon 0.9% ash) 127/260 0.81 Concrete 0.94 Glass (Glossy) 22/72 0.94 Granite (Surfaced) 21/70 0.85 0/32 0.97...
  • Page 51 Thermal Imaging Integrated Network Camera B Common Emission Rate User Manual Issue V1.0 (2018-05-10)
