Brannan Electronic Digital Thermometer Operation Instructions

Brannan Thermometers & Instrumentation
Leconfield Industrial Estate, Cleator Moor, Cumbria. CA25 5QE, UK.

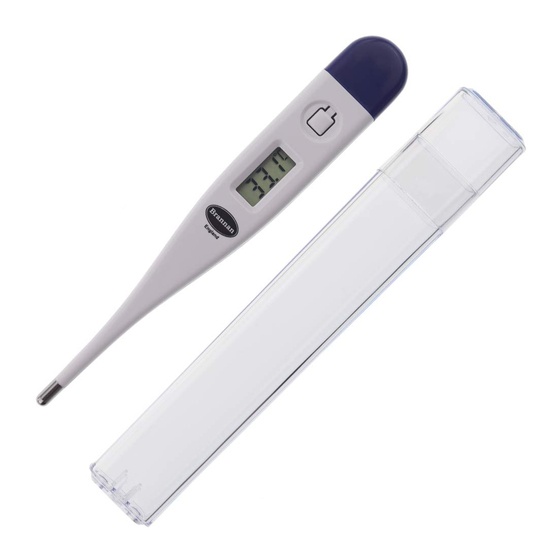

Electronic Digital Thermometer

Features

1. Easy to read digital LCD (liquid crystal display)
2. Compact, accurate, durable and light weight.
3. Temperatures can be taken either rectally (rectal), under arm (axillary use) or under the
tongue (oral use).
4. Very sensitive and quick to use.
5. Thermometer switches off automatically after 8 - 10 minutes if accidentally left switched
on, to save battery.
6. Can be used by the whole family.
7. Non toxic body, much safer than mercury glass thermometers.

Parts Description

Specification

Mesurement Range: 32°C to 42°C
Ambient Temp during use: 5°C to 35°C (<80%RH)
Storage Temp:
Accuracy:
Display:
Battery:
Weight:
Dimensions:

Precautions

1. Do not soak the display in water. Only the probe is waterproof. If the unit is accidentally
immersed in water, allow to dry completely before switching on.
2. Do not boil the probe. Instead, clean the unit by wiping with a dry cloth and sterilize the
probe with ethyl (rubbing) alcohol.
3. Do not allow the unit to come into contact with any thinners or chemical solvents.
4. Do not store the unit in direct sunlight or at a high temperature.
5. Do not bend the unit
6. Do not attempt to disassemble the unit except to replace the battery.

Operation Instructions

-25°C to 55°C (<95%RH)
+/- 0.1°C from 35.5°C to 42°C, otherwise +/- 0.2°C
Liquid crystal display 3½ digits
1 x 1.5V button size battery (LR41 or equivalent)
Approx 10g (including battery)
125mm x 18mm x 12mm
