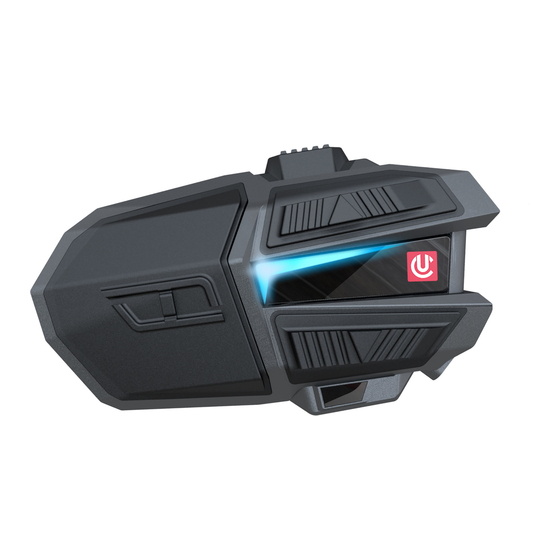

Uclear Motion Series User Manual
  1. Manuals
  2. Brands
  3. Uclear Manuals
  4. Controller
  5. Motion Series
  6. User manual

Uclear Motion Series User Manual

Hide thumbs Also See for Motion Series:
Table of Contents

Advertisement

Quick Links

V1.1
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Motion Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Uclear Motion Series

Summary of Contents for Uclear Motion Series

  • Page 1 V1.1 USER MANUAL...

  • Page 2: Table Of Contents

    INDEX PACKAGE CONTENTS; REPLACEMENT ACCESSORIES VOICE CALLING / PHONE CALLS DEVICE OVERVIEW MUSIC CONTROLS 16,19 17-19 LED INDICATOR OVERVIEW GESTURE SENSOR SPEAKER INSTALLATION MUSIC SHARING CONTROLLER INSTALLATION UCOMMAND: VOICE COMMANDS- MOTION DEVICE PHONE PAIRING; UPAIR UNIVERSAL DEVICE PAIRING UCOMMAND: VOICE COMMANDS- APPLE SIRI / GOOGLE VOICE 9,10 CLEARLINK MOBILE APP FIRMWARE UPDATES...

  • Page 3: Package Contents; Replacement Accessories

    PACKAGE CONTENTS PACKAGE CONTENTS 1. UCLEAR Motion Series Controller 2. #111037 Pulse Pro 2.0 Premium Speaker/Mic Kit (USB-C). (Mounting Kit Included)
  • Page 4 PACKAGE CONTENTS PACKAGE CONTENTS 3. #111040 4. #111041 5. #111039 Permanent Mount for MOTION Series Only USB-C Charge / Data Cable for Universal Helmet Speaker Mounting Kit MOTION Series Only 6. #11002 7. #11001 8. #111042 9. #11005 Temporary / Removeable Mount for...

  • Page 5: Device Overview

    device overview device overview INTERFACE OVERVIEW QUICK ACCESS Button LED Indicator UP Button DOWN Button POWER Button USB-C Gesture Sensor...

  • Page 6: Led Indicator Overview

    device overview device overview LED INDICATOR PURPLE BLUE BLUE Blinking - Power on state Alternate - Bluetooth pairing Blinking - Powering off Blinking - Intercom pairing - Call in progress - Battery low mode Blinking mode Solid - Battery fully charged - Incoming call Solid - Battery charging...

  • Page 7: Speaker Installation

    installation on helmet installation on helmet SPEAKER INSTALLATION OPEN FACE / MODULAR HELMET FULL FACE / MOTOCROSS HELMET Using included speaker mounting kit, locate speakers & mics Using included speaker mounting kit, locate speakers & mics per illustration. per illustration. For best performance, adjust center of speakers directly over For best performance, adjust center of speakers directly over ear canals.

  • Page 8: Controller Installation

    installation on helmet installation on helmet CONTROLLER INSTALLATION Ensure mounting area is Determine optimal mount Dock the controller to the Plug speaker USB cable cleaned of any dust or oils. location. Peel off protective mount. Align the rails in all the way for a tight film from adhesive and and slide down into place.
  • Page 9 CONTROLLER INSTALLATION NOTES * Note: Controller should only be placed on left side of helmet. * Note: Insert USB-C connector as shown above Optimal location is low, along the jaw-line, near your left ear. with UCLEAR logo facing front.

  • Page 10: Phone Pairing; Upair Universal Device Pairing

    PAIR DEVICE TO PHONE Bluetooth List Available Device Motion 6 Power ON State. Press & hold UP & DOWN Select the name of the UCLEAR device purchased in your mobile device’s Bluetooth pairing screen. until LED blinks blue and red.

  • Page 11: Clearlink Mobile App

    DOWNLOAD CLEARLINK APP DOWNLOAD CLEARLINK APP CLEARLink Mobile App provides access to configuration, preference settings, wireless firmware updates, user manual and 1-touch access to tech support. Download & install CLEARLink free from App Store (IOS) or from PLAY Store (Android). If you do not have a smartphone, you can still place calls and stream media from Bluetooth enabled phones.
  • Page 12 PAIR DEVICE TO CLEARLINK APP Home page Device Configuration Connect device Information * UCLEAR device must be paired to your mobile device before pairing to CLEARLink. Once paired to CLEARLink, please register your device for warranty and configure your preferences.

  • Page 13: Intercom Pairing: Motion Mesh Units

    MESH INTERCOM PAIRING MESH INTERCOM PAIRING The first ever mesh intercom network combined with Multi-Hop automatic switching. DYNAMESH pairs with mesh and non-mesh units, and auto-reorganizes as group riders change positions. This ensures stable and constant connections over the longest distances allowed by the FCC. ALL MOTION DEVICES ALL MOTION DEVICES ANY MOTION DEVICE...

  • Page 14: Intercom Pairing: Motion With Amp Series

    MESH INTERCOM PAIRING MESH INTERCOM PAIRING PAIRING MOTION UNITS WITH UCLEAR AMP SERIES UNITS Begin with all AMP units in power OFF state, all MOTION units in power ON state. Start by powering on all AMP units directly into pairing mode by holding POWER &...

  • Page 15: Intercom Pairing: Cross-Brand Pairing / Universal Intercom

    UNIVERSAL INTERCOM PAIRING MODE UNIVERSAL INTERCOM PAIRING MODE U-Pair allows universal device pairing to multiple Bluetooth devices at once. Smart phones, smart watches, tablets, GPS, action cams, OEM systems, and competitors’ comm systems. OTHER BLUETOOTH OTHER BLUETOOTH MOTION DEVICE MOTION DEVICE COMMUNICATOR COMMUNICATOR * Illustration only...

  • Page 16: Intercom Controls

    INTERCOM control INTERCOM control CONNECT INTERCOM DISCONNECT INTERCOM MICROPHONE MUTE/ UNMUTE Press & hold UP 2 secs Press & hold DOWN 2 secs Press POWER 3 times Tip: Hold UP arrow 2 secs Tip: You can also connect or Tip: You can also mute or unmute to quickly rejoin intercom disconnect intercom mode with microphones with voice command,...

  • Page 17: Voice Calling / Phone Calls

    voice calling voice calling PICK UP INCOMING CALL END OR REJECT A CALL LAST NUMBER REDIAL “Hello” or “Pick up” Press & hold POWER 1 sec Press & hold POWER & UP 1 sec JOIN CALL TO INTERCOM Say “Hello” or “Pick up” Press QUICK ACCESS once and Press POWER once Press POWER twice...

  • Page 18: Music Controls

    music control music control BUTTON METHOD PLAY/RESUME MUSIC STOP/PAUSE MUSIC VOLUME DOWN Press DOWN Press POWER twice Press POWER once once per level. BACK TRACK SKIP TRACK VOLUME UP Press UP Press DOWN twice Press UP twice once per level.

  • Page 19: Gesture Sensor

    GESTURE SENSOR CONTROL GESTURE SENSOR CONTROL Exclusive gesture control sends out a sensor beam from your MOTION unit allowing simple hand gestures to command the most common features such as volume and pause/restart music without searching for buttons. Thick gloves? No problem! GESTURE SENSOR POSITION ACTIVATING/DEACTIVATING GESTURE SENSOR...
  • Page 20 GESTURE SENSOR CONTROL GESTURE SENSOR CONTROL GESTURE FEEDBACK HIGHER PITCH TONE LOWER PITCH TONE 0cm – 2cm 2cm – 10cm Simulates UP button. Simulates DOWN button. Light, quick tap on device. Wave into sensor beam 1”- 4” (2cm – 10cm) away from device.
  • Page 21 GESTURE SENSOR CONTROL GESTURE SENSOR CONTROL GESTURE CONTROL VOLUME UP VOLUME DOWN PLAY / PAUSE MUSIC 4 inches/10cm 4 inches/10cm Lightly tap on device once. Wave into beam once Wave into beam and hold for 2 secs. SKIP TRACK BACK TRACK 4 inches/10cm Lightly tap on device twice.

  • Page 22: Music Sharing

    DEVICE A affect both devices. POWER once to pause music. NOTE: Music Sharing feature supports sharing from 1 enabled UCLEAR unit to 1 other enabled U CLEAR unit over intercom. Both units must be paired for intercom before music sharing.

  • Page 23: Ucommand: Voice Commands- Motion Device

    MOTION UNIT FEATURES U Command allows control of your Motion Series unit by natural voice and facilitates access to Apple Siri and Google Voice on your paired mobile device. * Note: CLEARLink app must be connected in foreground or background to control Motion units by voice.

  • Page 24: Ucommand: Voice Commands- Apple Siri / Google Voice

    voice command voice command APPLE SIRI / GOOGLE VOICE MOTION provides quick access to Apple Siri / Google Voice service through your helmet. Apple Siri or Google Voice reside in your mobile Press QUICK ACCESS twice to open access to device.

  • Page 25: Firmware Updates

    firmware update firmware update WIRELESS UPDATES VIA UPDATES VIA PC / MAC CLEARLink MOBILE APP Connect device to CLEARLink as Visit www.ucleardigital.com/firmware and download Power OFF state, connect device to PC/MAC shown on pages 8-10 the latest firmware wizard for your U CLEAR model. with included USB charge/data cable.

  • Page 26: Usafe Impact Sensor & Contact Alert (Feature Highlight)

    U safe crash sensor U safe crash sensor (MOTION INFINTY MODELS) (MOTION INFINTY MODELS) The revolutionary U SAFE uses an advanced accelerometer to detect and measure hard impacts. If you are unresponsive, U SAFE can alert your contacts of your situation and GPS location. Requires a connected GPS enabled mobile device.

  • Page 27: 3-Button Reset; Reboot

    If you experience further problems, please contact U CLEAR Support. WHY & WHEN: If UCLEAR device does not power on after charging or firmware update- may be stuck in “update mode”. LED does not light up while charging.

  • Page 28: Technical Specifications

    Technical Data Technical Data UNIT Dimensions (L x W x H) 72mm x 44mm x 25mm (2.8in x 1.7in x 1in) Weight AUDIO Frequency response 20Hz to 20kHz Sampling rate 48kHz, 16 bit 105dB + 2dB BLUETOOTH Version V5.0 (BR/EDR/BLE), Class 1 Profiles HSP;...
  • Page 29 Technical Data Technical Data RADIO Carrier frequency 2.402 – 2.480 GHz Range Up to 1.2Km (.75 mile) per person under ideal conditions RF output power 19.61 dBm(max) POWER Power consumption 200mW (max) Power input (charging) 5V / 400mA / 2W Built-in battery 3.7V, 650mAh, Lithium-ion Polymer (Rechargeable) Music/talk time...
  • Page 30 NOTiCE NOTiCE BATTERY WARNING The UCLEAR helmet communicator contains a rechargeable lithium ion polymer battery. To reduce risks of fire or burns, do not disassemble, crush, puncture, short external contacts or dispose in fire or water. CHARGING NOTICE: To reduce the risk of personal injury, electrical shock, fire or damage to equipments, please follow all the instructions below: Do not immerse the product, AC adaptor or speakers in water.

  • Page 31: Warranty; Support

    The sender will bear all transportation charges for functioning products but which were declared defective. LIMITATIONS OF WARRANTY All product warranties for the product by UCLEAR are limited to those mentioned in the product manual.
  • Page 32 NOTiCE NOTiCE WAIVER AND DISCLAIMER BITwave and all their representatives, agents, distributors, suppliers and resellers shall not be liable and will be held harmless from any and all litigation, claims, debts, demands, actions and liability which may arise, directly or indirectly, from operating or using the product for any damages, losses, distress, pain, suffering, discomfort, loss and injuries including bodily harm illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability either to any persons, or any parties whether the user or other third parties or their possessions, or to any goods, vehicles, properties, assets among others including your own...
  • Page 33 NOTiCE NOTiCE WAIVER AND DISCLAIMER (CON’T) All risks from operating or usage of the product rest solely and entirely with the user of this product, the original purchaser or any third parties, who assumes full responsibility for all injuries, losses and/ or damages, whether caused in whole or in part by the negligence, omissions or other conduct of others, including that of BITwave and all their representatives, partners, agents, distributors, suppliers, resellers and all others in its supply and distribution chain either due to the designer’s or manufacturer’s negligence or omissions or any third parties...
  • Page 34 NOTiCE NOTiCE WAIVER AND DISCLAIMER (CON’T) You are warned not to operate the product if you are not physically capable of doing so in a safe manner, if you have or will consume any alcohol or any mind-altering substance during its operation so that your alertness is compromised or if you have any medical conditions or needs that may compromise your abilities to do so in a safe manner.
  • Page 35 NOTiCE NOTiCE CORRECT DISPOSAL OF THIS PRODUCT Do not dispose this product with other household wastes at the end of its working life. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
  • Page 36 NOTiCE NOTiCE PRODUCT INFORMATION BITwave and all their representatives, agents, distributors, suppliers or resellers shall not be held responsible for any consequences arising from any errors or omissions in the guide or resulting directly or indirectly from the use of the information herein. BITwave reserves the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users.
  • Page 37 BITwave Pte Ltd. LICENCES The UCLEAR trademark and logo is exclusively owned by BITwave Pte Ltd. Any use of the mark by any other parties without prior written permission of BITwave Pte Ltd constitutes an infringement of legal rights.
  • Page 38 NOTiCE NOTiCE IC SAR STATEMENT This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This equipment should be installed and operated with minimum distance 0 mm between the radiator and your head. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 39 NOTiCE NOTiCE FCC/SAR COMPLIANCE STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 40 NOTiCE NOTiCE FCC/SAR COMPLIANCE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA).
