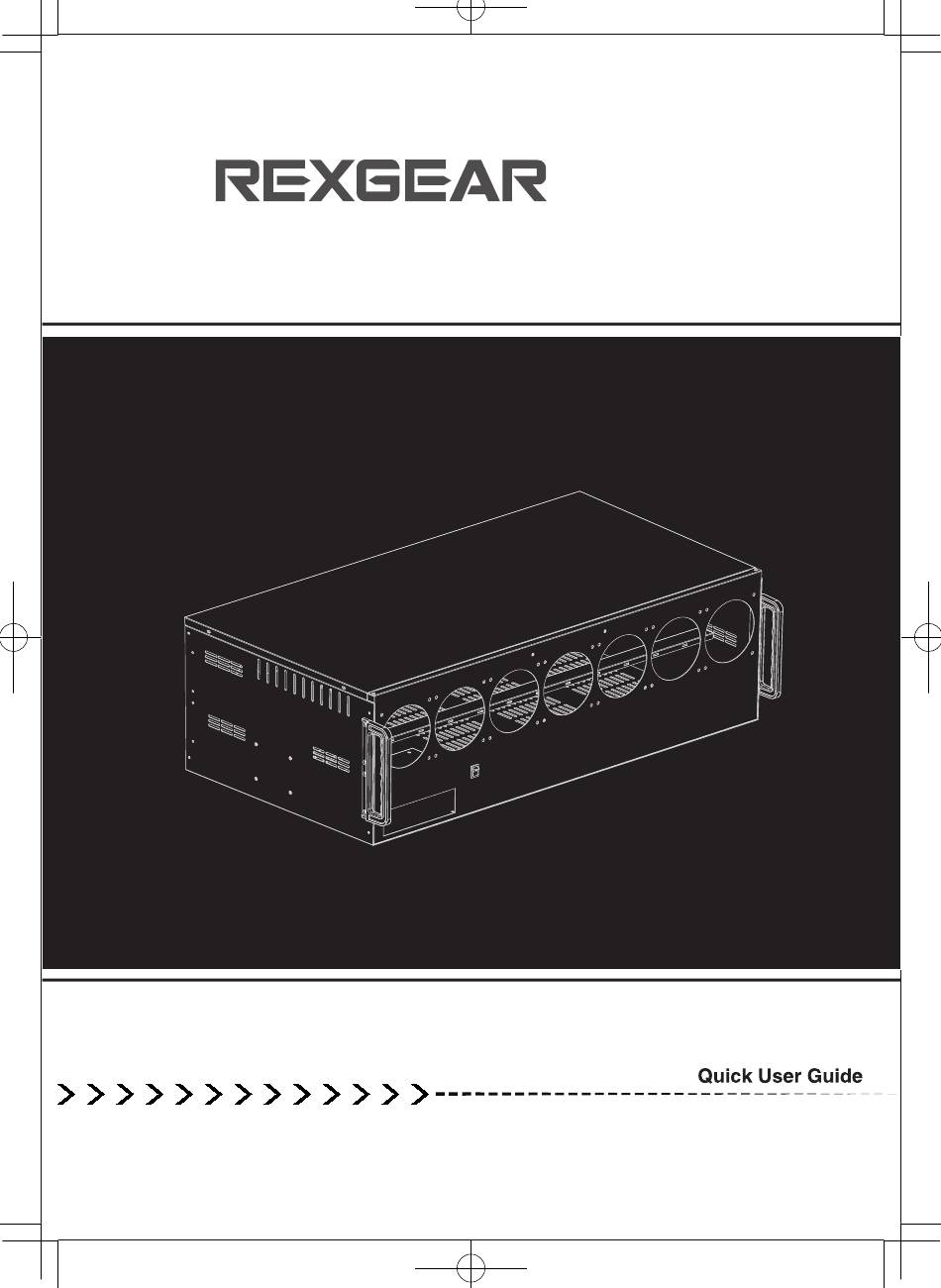

- Page 1 Bitcoin Machine CASE HYDRA-6...
- Page 2 HYDRA-6...
- Page 3 HYDRA-6 Overview Rear panel Top panel GPU brackets for 13 or 10 cards Safety bar Zip tie points HDD/SSD plate MoBo plate Front panel...
- Page 4 HYDRA-6 PSU / VGA Card Motherboard / 3.5" HDD Stand off Nut Setter-E Case stand Rubber Grommet Rubber Cushion Cable Management Cable Tie...
- Page 5 HYDRA-6 Remove the top panel Remove four screws on the left and right side of the panel...
- Page 6 HYDRA-6 1. Install the fans We recommend high speed server fans with greater than 4000 RPM and 150 CFM. Generic case fans may not provide adequate static pressure for server environment. 2. Install the power supplies Use rubber cushions to minimize vibration.
-
Page 7: Install The Motherboard
HYDRA-6 3. Install the motherboard Stand offs are pre-installed on the motherboard plate. - Page 8 HYDRA-6 4. Install the SSD You can install one SSD on the side of chassis. 5. Install the SSD/HDD You can install one SSD/HDD using the mounting plate..
-
Page 9: Cable Management
HYDRA-6 6. Cable management We recommend that you organize bundles of cables by zip tying them to the zip tie holes on the bottom GPU bracket. 7. Install the GPU GPU brackets can be switched from 13 dual slot to 10 triple slot mounting patterns. - Page 10 HYDRA-6 8. Install the safety bar This helps minimize vibrations or movement of the GPUs. 9. Close the top panel A closed system is required to maintain positive pressure and front-to-back active airflow management.This prevents hot exhaust air from circulating back into the equipment intake.
