Summary of Contents for Intelligent Home DT-DBC4R

  • Page 1: User Manual

    DT-DBC4R Riser Distributor User Manual DBC4R IN-USE POWER Please read this manual carefully before using the product you purchase, and keep it well for future use.We reserve the right to modify the specification in this manual at any time without...
  • Page 2: Parts And Functions

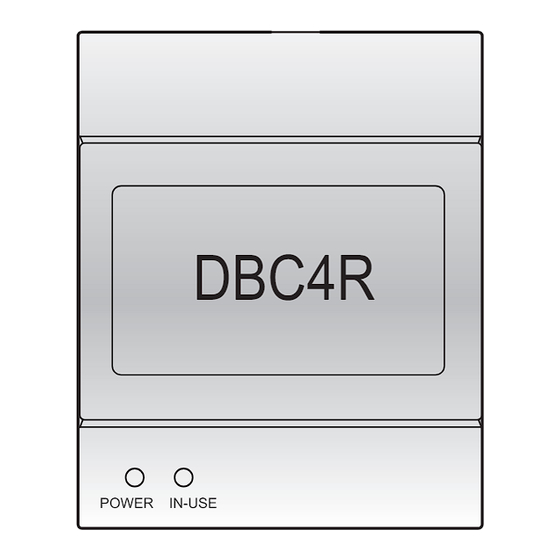

    1. Description The DBC4R is a 4 output video amplifier. • There are 2 working modes: riser mode and distributor mode; • Separate isolation protection without affecting another devices on bus system; • Short-circuit indication for convenient maintenance; • Periodic self-detection mechanism for recovery. 2.
  • Page 3: Unit Mounting

    DIP Switch: 3 bit DIP switches,about the DIP settings,see follows: DIP1 the unit work in riser mode the unit work in distributor mode the unit start to search the the unit stop to search the DIP2 local monitors (for monitors monitors (in normal use) with built-in power) DIP3...
  • Page 4 4. System Wiring with DBC4R 1.Basic IN-OUT expansion wiring(distributor mode) Cable Usage Cable Usage Twisted cable 2x0.75 mm Twisted cable 2x1 mm Twisted cable 2x1 mm Twisted cable 2x1.5 mm PC6A DBC4R Wiring diagram: Max.4 DBC4R 100~240VAC PC6A BUS(IM) BUS(DS) DIP1->OFF * Max.8 monitors can be connected for every DBC4R.
  • Page 5 2.Multi risers wiring(riser mode) Cable Usage Cable Usage Twisted cable 2x0.75 mm Twisted cable 2x1 mm Twisted cable 2x1 mm Twisted cable 2x1.5 mm Type 1 Max.8 DBC4R PC6A Max.4 risers...
  • Page 6: Wiring Diagram

    Wiring diagram: A B C D A B C D DBC4R DBC4R to next branch distributor to next branch distributor Max.4 risers 100~240VAC A B C D PC6A DBC4R DIP1->ON BUS(IM) BUS(DS) Type 2 DBC4R to next DBC4R PC6A...
  • Page 7 Wiring diagram: A B C D A B C D DBC4R DBC4R to next branch distributor to next branch distributor 100~240VAC A B C D A B C D PC6A DBC4R DBC4R DIP1->ON BUS(IM) BUS(DS) to next DBC4R * The DIP1 should set to “ON” for all DBC4R.
  • Page 8 3.Multi monitors wiring(distributor mode) PC6A DBC4R Wiring diagram: OFF ON Impedance DIP1->OFF switch->ON * The impedance switch should set to “ON” for the last DBC4R at the end of the bus. OFF ON Impedance DIP1->OFF switch->OFF 100~240VAC PC6A BUS(IM) BUS(DS)
  • Page 9: Specification

    5. Specification Power Supply : DC20~30V Working Temperature: C~+40 Wiring: 2 wires (non-polarity) Dimension: 89(H)×71(W)×45(D)mm Standby Current: 4~5mA The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. DT-ENG-DBC4R-V1 20180531...
