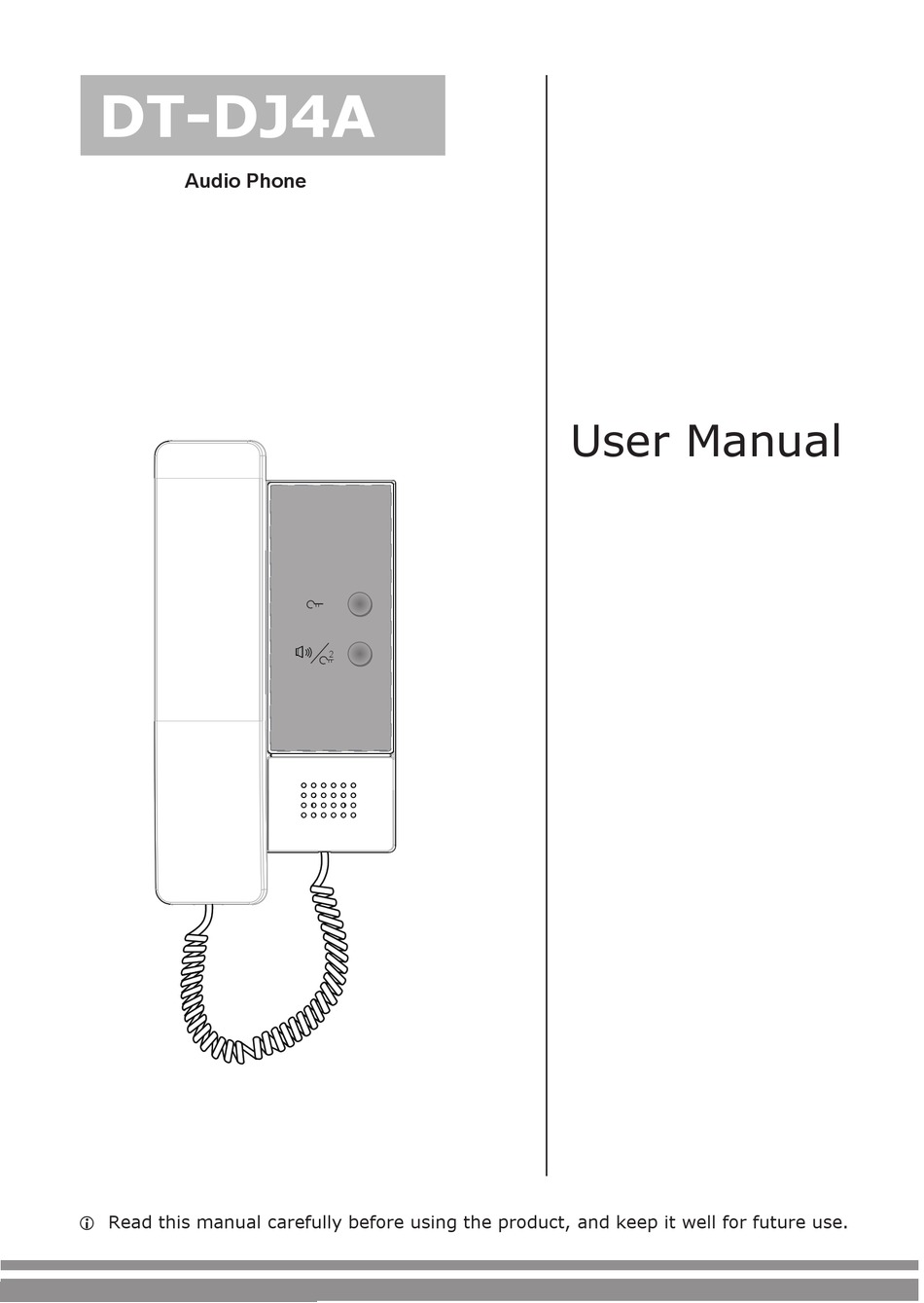

DT-DJ4A
Audio Phone

User Manual

2
i Read this manual carefully before using the product, and keep it well for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT-DJ4A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intelligent Home DT-DJ4A

  • Page 1: User Manual

    DT-DJ4A Audio Phone User Manual i Read this manual carefully before using the product, and keep it well for future use.

  • Page 3: Key Functions

    1. Parts and Functions Handset Unlock button Call button/Unlock 2nd button Speaker handset curve Side View Key functions Handset Pick up to communicate with called. Handset cable Connects handset with monitor. Unlock Button Press to release the door. In standby mode, pick up handset, press Call button to Call button/Unlock activate the inner (internal intercom) call;...
  • Page 4 2. Terminal Descriptions SW+,SW- L1, L2 DIP2 DIP1 SW+,SW-: Door bell call button connection port. L1,L2: Bus terminal. Used to set Ring Tone. Used to set Ring Volume. DIP1(Bit1~6): Used to set User Code. DIP2(Bit1~3): Used to set Slave Monitor Address or Extended Address 3.

  • Page 5: Operation Instructions

    4. Operation Instructions 1) Door release function: When visitor calls from outdoor station, the internal handset rings, pick up handset to talk with the caller, then press the Unlock button to open the door. If the system is connected to 2 locks, press Unlock 2nd button to open the second door.
  • Page 6 Bit state User Code Bit state User Code Bit state User Code Code=6 Code=17 Code=28 3 4 5 3 4 5 3 4 5 Code=7 Code=18 Code=29 3 4 5 3 4 5 3 4 5 Code=8 Code=19 Code=30 3 4 5 3 4 5 3 4 5 Code=9...
  • Page 7 5.2.2 When Bit-3 of DIP2 set to ON, the Bit-1~2 of DIP2 and Bit-1~5 of DIP1 are used to extended address setting: DIP2 state DIP1 state User Code DIP2 state DIP1 state User Code Code=1 Code=65 3 4 5 3 4 5 Code=2 Code=66 3 4 5...
  • Page 8 2). Pick up the handset in standby mode, each press of K4 sets the next a group of ring tones. Ring tone group cycle: press K4 press K4 press K4 Group1 Group2 Group3 Group4. 3). Put down handset to exit the setting. 5.4 Ring Volume Setting 1)There are three levels of ring volume(low-range, mid-range and high-range).
