Summary of Contents for Transtector AC Edge 240

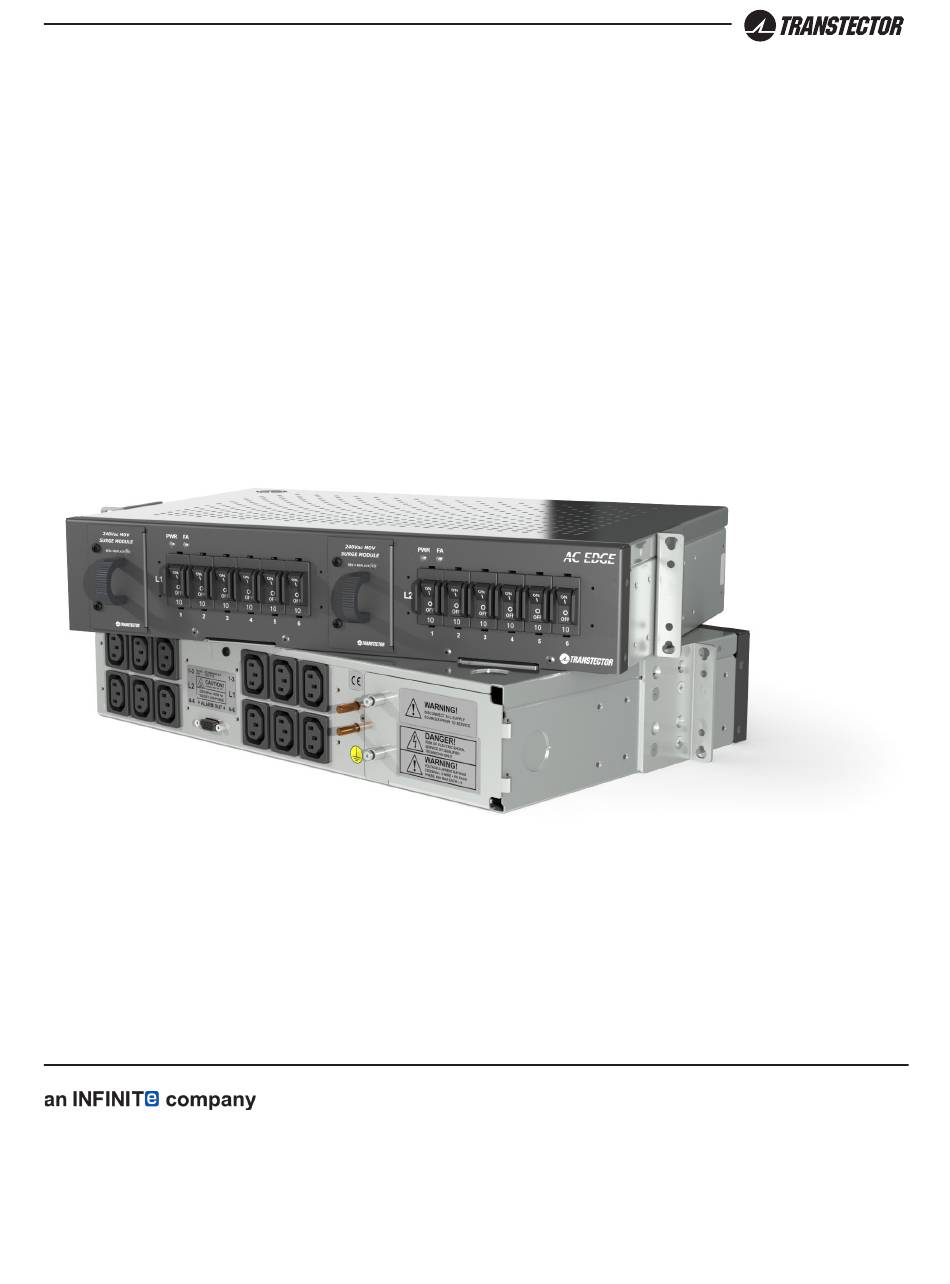

- Page 1 Installation Manual AC Edge 240 Dual Phase 60A (6/6) AC Power Distribution Unit Model AC240V60DF 6/6 P/N 1101-1173 1101-1173-M REV H...
-
Page 2: Table Of Contents
| AC Edge 240 Installation Manual Table Introduction Product Specifications Factors Affecting Installation Installation Procedure Inspect Shipping Container Inspect Contents of Container Accessory Kit Installing Mounting Brackets Mounting Panel to Rack Ground Wiring Input Wiring Test Voltages and Alarms Outputs... -
Page 3: Introduction
The AC Edge supports the use of six breaker output positions per line. Accepted breakers listed in the table on Page 14 range from 1A to 10A with a UL classification of QVNU2. 5A and 10A breakers are available from Transtector, sold separately and installed by site personnel (see Page 14 for part numbers). -
Page 4: Product Specifications
| AC Edge 240 Installation Manual Product Specifications Electrical Specification Nominal Universal Voltage Range 220 Vac to 240 Vac Frequency Rating 50 / 60 Hz Input Rating 60 A, 250 Vac per phase, max Input Interrupt Device Not provided, building install must be capable of interupting up to a 60 A source. - Page 5 Storage Temperature 14ºF to 149ºF (-10ºC to 65ºC) Operating Temperature 14ºF to 131ºF (-10ºC to 55ºC) Relative Humidity 90% (non condensing) Compliance Specification Safety IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 © Transtector 2017. All Rights Reserved.
-
Page 6: Factors Affecting Installation
Hazardous Voltage. Multiple power sources may be available. Disconnect all power before servicing. Before connecting input power cables make sure input power to panel is turned off. Read and understand these instructions before installing this product. If neces- sary, contact Transtector for technical assistance: by phone at 1.800.882.9110 or 208.772.8515. Or email us at customerservice@ smithspower.com. -
Page 7: Installation Procedure
1.800.882.9110 or 208.772.8515, or email us at customerservice@smithspower.com. 3. Check contents of accessory kit, as listed in the table on page 8. If any items are missing, contact Transtector by phone at 1.800.882.9110 or 208.772.8515, or email us at customerservice@smithspower.com. -
Page 8: Accessory Kit
| AC Edge 240 Installation Manual Installation Procedure cont. Accessory Kit Accessory Purpose Quantity Illustration Flat Head Screw #10-32 x Bracket Installation 3/8” with Nylock Patch Flat Washer #12 Panel to Rack Installation Lock Washer #12, Split Panel to Rack Installation Screw #12-24 x .5”... -
Page 9: Installing Mounting Brackets
Maximum Torque (inch pounds) Maximum Torque (Newton meters) 10-32 23 inch pounds 2.65 Newton meters 12-24 35 inch pounds 4.29 Newton meters 55 inch pounds 6.2 Newton meters Figure 1: Bracket Installation Figure 2: Rack Mounting © Transtector 2017. All Rights Reserved. -
Page 10: Ground Wiring
| AC Edge 240 Installation Manual Installation Procedure cont. Ground Wiring This product must be properly grounded to the facility’s ground bus. Failure to do so is dangerous to personnel and may result in equipment malfunction. 10. Crimp ground lug to a #6 AWG stranded copper wire. One #6 AWG ground wire is the minimum requirement for 240Vac single phase input to the panel. -
Page 11: Input Wiring
Figure 4a: Terminal block connection To prevent possibility of electrical shock, both power sources must be disconnected from AC Edge before servicing. Installation must meet all local codes and jurisdictions. Figure 4b: Input wiring diagram © Transtector 2017. All Rights Reserved. -
Page 12: Test Voltages And Alarms
| AC Edge 240 Installation Manual Installation Procedure cont. Test Voltages & Alarms 17. Confirm breakers are not installed in the front panel of AC Edge and the provided protective covers are in place. 18. Enable power to the panel via fuse, breaker, or other disconnect device. -
Page 13: Outputs
35. Test power and polarity at the input of each output load. 36. Enable AC Edge ouput loads at equipment. Check loads for proper operation. Figure 5: IEC 320-C13 output positions and alarm connection © Transtector 2017. All Rights Reserved. -
Page 14: Breaker Replacement
Circuit breakers are held in place by wide plastic barbs at the top and bottom of each breaker. The barbs lock into cutouts in the top and bottom of the two breaker cages. Transtector provides two breaker removal tools. The tools are used together to facilitate breaker removal by depressing the barbs while prying out the breaker. -
Page 15: Dimensions
Dimensions © Transtector 2017. All Rights Reserved. -
Page 16: Lugs
AC Edge 240 panels require no scheduled maintenance. Service For service (warranty or otherwise) contact Transtector by phone at +1 800.882.9110 or +1 208.772.8515, or online at www.smithspower.com to obtain an RMA number. Transtector will contact you with cost of repair or replacement (if applicable) - Page 17 Transtector assumes no liability in the use of this product. Transtector conveys no license under its patent rights or those of others. Transtector reserves the right to change this product and this publication without notice. Transtector Systems, Inc. 10701 Airport Drive, Hayden, ID 83835 Toll free +1 800.882.9110...
