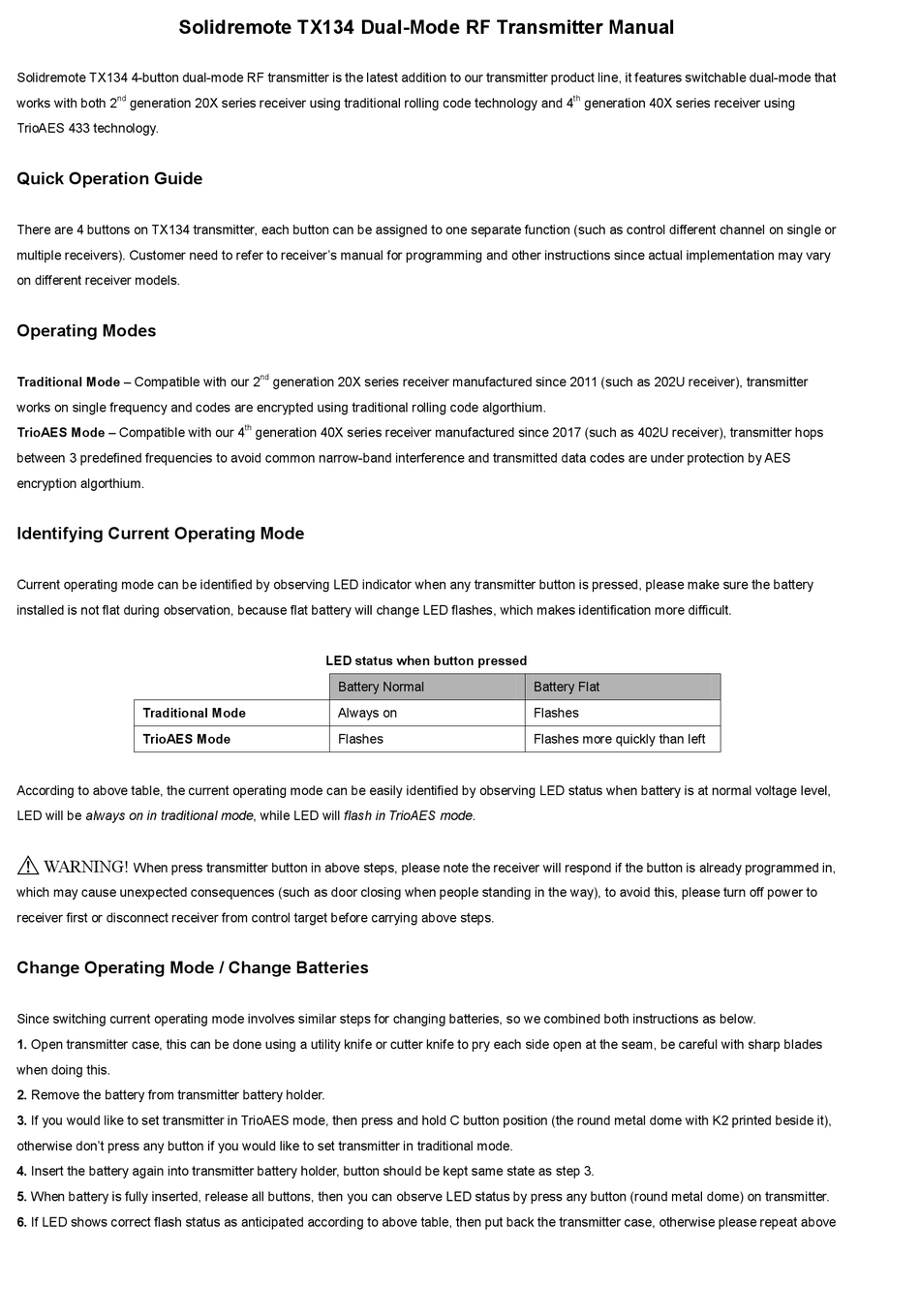

Solidremote TX134 User Manual

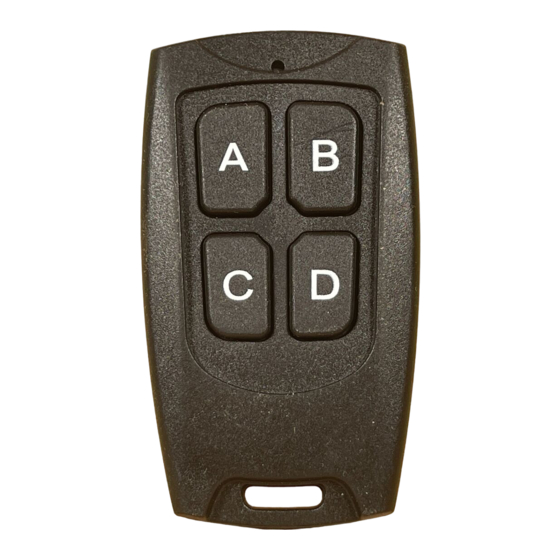

Solidremote TX134 4-button dual-mode RF transmitter is the latest addition to our transmitter product line, it features switchable dual-mode that
nd
works with both 2 generation 20X series receiver using traditional rolling code technology and 4
TrioAES 433 technology.

Quick Operation Guide

There are 4 buttons on TX134 transmitter, each button can be assigned to one separate function (such as control different channel on single or
multiple receivers). Customer need to refer to receiver's manual for programming and other instructions since actual implementation may vary
on different receiver models.

Operating Modes

Traditional Mode – Compatible with our 2
works on single frequency and codes are encrypted using traditional rolling code algorthium.
TrioAES Mode – Compatible with our 4
between 3 predefined frequencies to avoid common narrow-band interference and transmitted data codes are under protection by AES
encryption algorthium.

Identifying Current Operating Mode

Current operating mode can be identified by observing LED indicator when any transmitter button is pressed, please make sure the battery
installed is not flat during observation, because flat battery will change LED flashes, which makes identification more difficult.
Traditional Mode
TrioAES Mode
According to above table, the current operating mode can be easily identified by observing LED status when battery is at normal voltage level,
LED will be always on in traditional mode, while LED will flash in TrioAES mode.
⚠
WARNING!
When press transmitter button in above steps, please note the receiver will respond if the button is already programmed in,
which may cause unexpected consequences (such as door closing when people standing in the way), to avoid this, please turn off power to
receiver first or disconnect receiver from control target before carrying above steps.

Change Operating Mode / Change Batteries

Since switching current operating mode involves similar steps for changing batteries, so we combined both instructions as below.
1. Open transmitter case, this can be done using a utility knife or cutter knife to pry each side open at the seam, be careful with sharp blades
when doing this.
2. Remove the battery from transmitter battery holder.
3. If you would like to set transmitter in TrioAES mode, then press and hold C button position (the round metal dome with K2 printed beside it),
otherwise don't press any button if you would like to set transmitter in traditional mode.
4. Insert the battery again into transmitter battery holder, button should be kept same state as step 3.
5. When battery is fully inserted, release all buttons, then you can observe LED status by press any button (round metal dome) on transmitter.
6. If LED shows correct flash status as anticipated according to above table, then put back the transmitter case, otherwise please repeat above
Solidremote TX134 Dual-Mode RF Transmitter Manual
nd
generation 20X series receiver manufactured since 2011 (such as 202U receiver), transmitter
th
generation 40X series receiver manufactured since 2017 (such as 402U receiver), transmitter hops
LED status when button pressed
Battery Normal
Always on
Flashes
th
generation 40X series receiver using
Battery Flat
Flashes
Flashes more quickly than left
