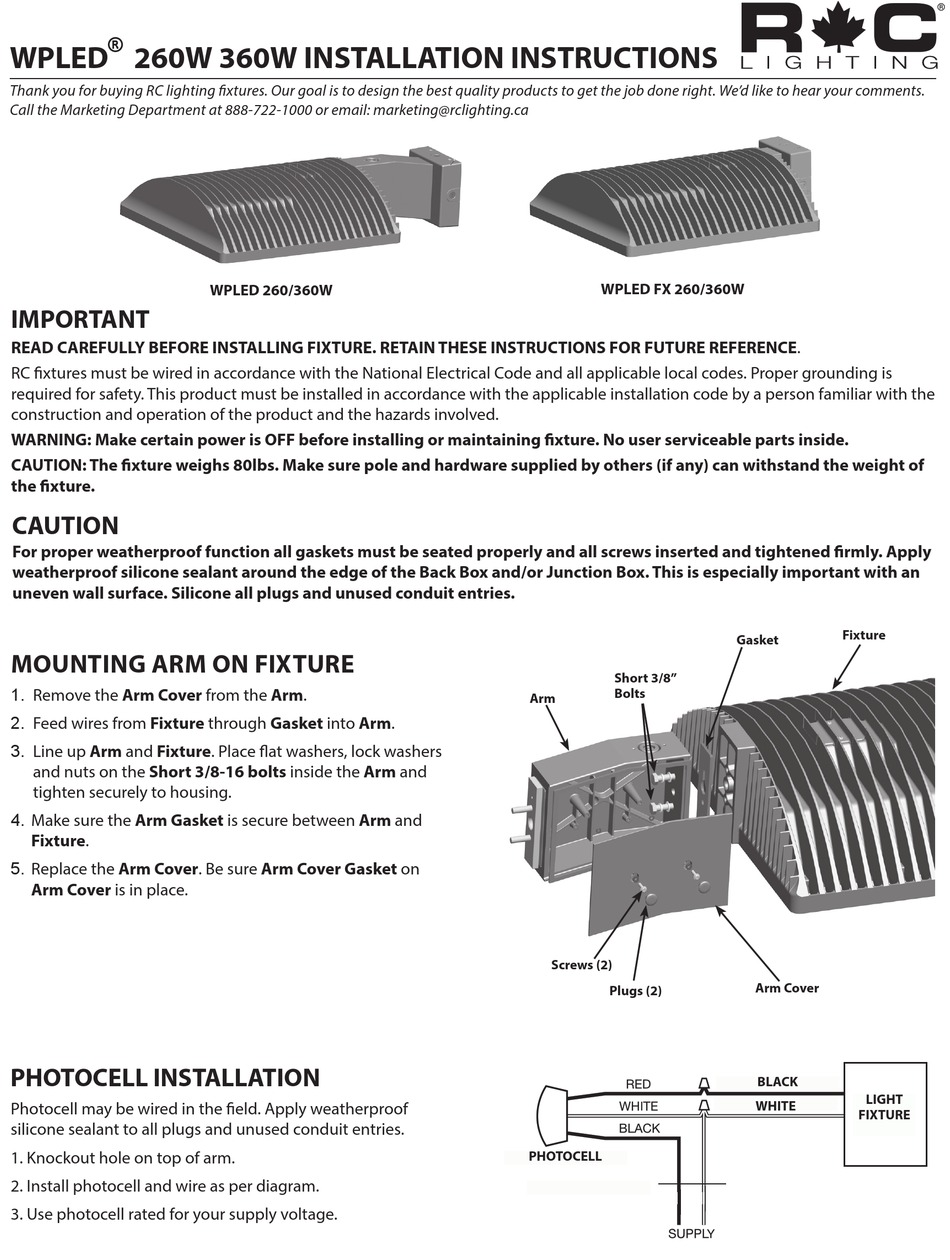

WPLED 260W 360W INSTALLATION INSTRUCTIONS
Thank you for buying RC lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-722-1000 or email: marketing@rclighting.ca
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RC fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. This product must be installed in accordance with the applicable installation code by a person familiar with the
construction and operation of the product and the hazards involved.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
CAUTION: The fixture weighs 80lbs. Make sure pole and hardware supplied by others (if any) can withstand the weight of
the fixture.
CAUTION
For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened firmly. Apply
weatherproof silicone sealant around the edge of the Back Box and/or Junction Box. This is especially important with an
uneven wall surface. Silicone all plugs and unused conduit entries.
MOUNTING ARM ON FIXTURE
1. Remove the Arm Cover from the Arm.
2. Feed wires from Fixture through Gasket into Arm.
3. Line up Arm and Fixture. Place flat washers, lock washers
and nuts on the Short 3/8-16 bolts inside the Arm and
tighten securely to housing.
4. Make sure the Arm Gasket is secure between Arm and
Fixture.
5. Replace the Arm Cover. Be sure Arm Cover Gasket on
Arm Cover is in place.
PHOTOCELL INSTALLATION
Photocell may be wired in the field. Apply weatherproof
silicone sealant to all plugs and unused conduit entries.
1. Knockout hole on top of arm.
2. Install photocell and wire as per diagram.
3. Use photocell rated for your supply voltage.
WPLED 260/360W
WPLED FX 260/360W
Short 3/8"
Bolts
Arm
Screws (2)
Plugs (2)
PHOTOCELL
PHOTOCELL
Fixture
Gasket
Arm Cover
BLACK
LIGHT
"COM"
WP2FC
WHITE
FIXTURE
