Summary of Contents for Sensor METIS Vision MV05

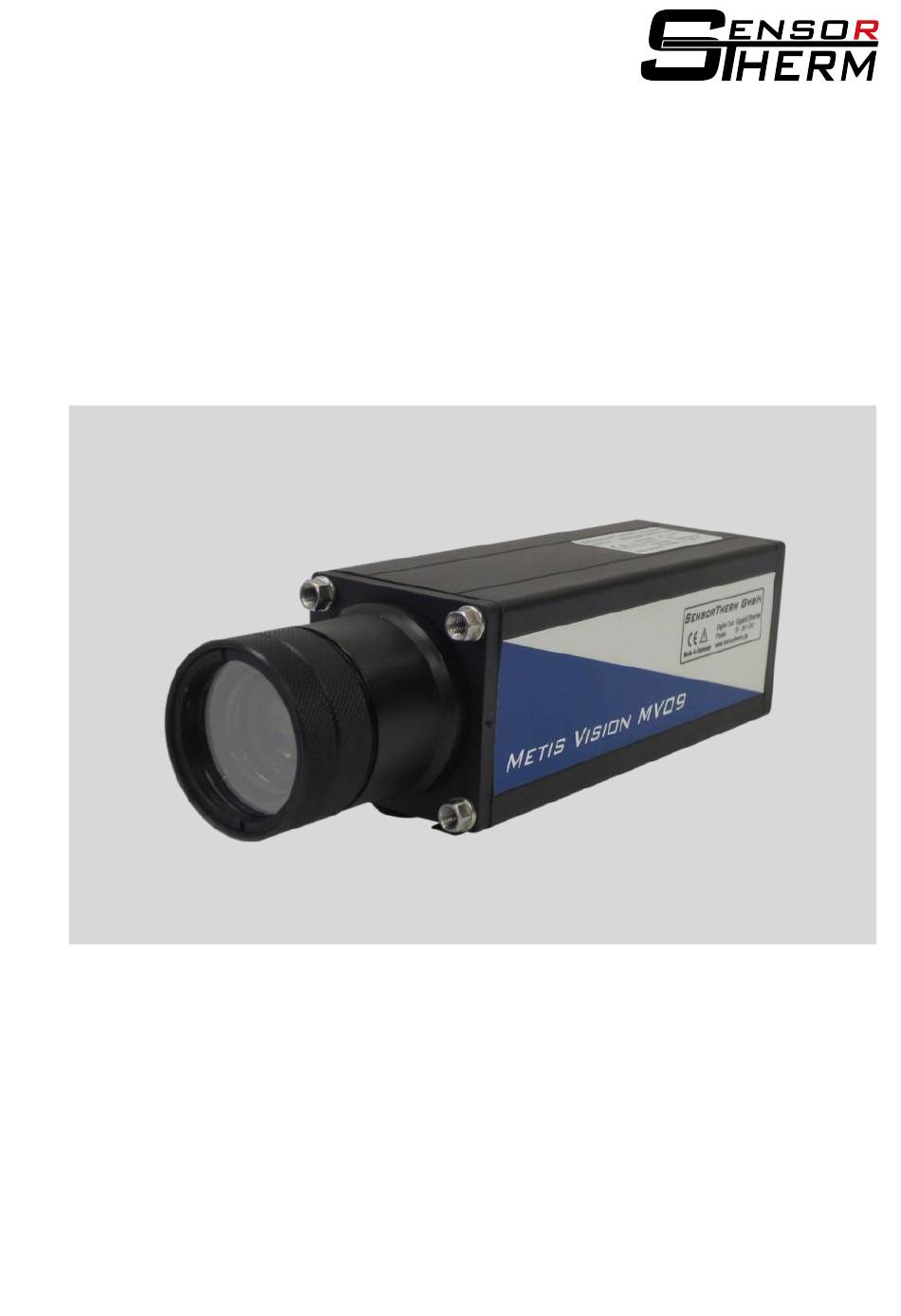

- Page 1 Assembly and Installation Instructions METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications These assembly and installation instructions are valid for the device with the series number: Read the instructions prior to performing any task.
-
Page 2: Table Of Contents
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Introduction Table of contents Brief description ......13 Introduction .......... 3 5.2.1 Ethernet cable (AK54-XX)... 13 Information about this manual ... 3 5.2.2 Connection cable (AK46-XX) ..13 Explanation of symbols ...... 3 5.2.3... -
Page 3: Introduction
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Introduction Introduction Information about this manual This manual enables safe and efficient handling of the METIS Vision (hereinafter referred to as "device"). The manual is a component of the device and must be kept accessible to personnel in the immediate vicinity of the device at all times. -
Page 4: Limitation Of Liability
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Introduction The following symbols and indicators are used to identify handling Symbols in this manual instructions, descriptions of results, lists, references, and other ele- ments in this manual: Symbol Explanation ... -
Page 5: Spare Parts
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Safety Spare parts Loss of guarantee The manufacturer's guarantee is invalidated if non- approved spare parts or the wrong accessories are used. Purchase spare parts and accessories directly from the manufacturer. -
Page 6: Intended Use
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Safety Intended use The device has been designed and constructed exclusively for the intended use described here. The Thermovision Camera has been designed exclusively for re- mote contactless temperature measurement in the industrial sector (e.g. -
Page 7: Personnel Requirements
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Safety Personnel requirements In this manual the qualifications of personnel for the various areas of WARNING! activity are listed below. Danger of injury due to insufficient qualification of personnel! Only have activities performed by personnel who are qualified to perform these activities. -
Page 8: Personal Protective Equipment
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Safety Personal protective equipment Personal protective gear protects the personnel from dangers for health and life. Protective gear required is shown in the respective chapters of this manual. The operating company may have additional requirements to ensure the safety of the personnel. -
Page 9: Tecnical Data
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Tecnical Data Tecnical Data Dimension drawings All dimensions in mm. Fig.. 1: Views of the camera Status LEDs: 1: powersupply unit on = supply active off = no supply 2: Interface:... -
Page 10: Connected Loads
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Tecnical Data Connected loads Elektrical Specification Value Unit Permissible operating voltage V DC Power consumption, maximum Trigger-Input, remote controlled video- recording or snap shot, optional via software Input signal adjustable... -
Page 11: Operating Conditions
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Tecnical Data Operating conditions Environment Specification Value Unit Ambient temperature range 0–50 °C Storage temperature range -20-53 °C 20 – 60, Relative humidity none con- densing Type plate The type plate is located on the side of the housing of the Thermo- vision Camera and contains the following information: ... -
Page 12: Customer Solutions
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Customer solutions Customer solutions At this point details concerning the individually ordered customer configuration are supplemented as needed. For standard versions, nothing is specified in this section. -
Page 13: Structure And Function
DVD with the "VisionWin" software, an Ethernet cable and a test certificate. Brief description METIS Vision MV05 and MV09 are termovision cameras for high tem- perature ranges. All devices have an Ethernet interface. The thermovision images with 1000 megabits/s or 100 megabits/s can be read via this interface. -
Page 14: Optics For Long Focus Distances
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Structure and function 5.2.3 Optics for long focus distances Optics OV09-A0 Hor. Vert. FOV (deg). 5° 3,5° Adjustable from: 1000 mm Min. FOV mm FOV in 1 m FOV in 2 m... -
Page 15: Optics For Short Focus Distance
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Structure and function Optics OV09-G0 Hor. Vert. FOV (deg). 58° 44° Adjustable from: 200 mm Min. FOV mm FOV in 1 m 1109 FOV in 2 m 2217 1663 FOV in 3 m... -
Page 16: Accessories
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Transport, packaging, and storage Accessories Ref. no. Description AK54-XX* Ethernet cable with RJ45 connector rated IP65 AK46-XX* Interconnecting cable for power supply and external trigger KG13-04 Water-cooling or protection jacket with sapphire protection window... -
Page 17: Storage
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning Dispose of packaging materials in accordance with the respectively Handling packaging materials valid statutory regulations and local guidelines. NOTICE! Improper disposal poses an environmental hazard! Dispose of packaging materials in an environmentally responsible manner. -
Page 18: Mechanical Installation
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning Measurement inaccuracies due to vibrations, disturbing objects, and intermediate media! If the Thermovision Camera is exposed to high vibrations or if disturbing objects or intermediate media (e.g. -
Page 19: Electrcal Connection
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning Electrcal connection 7.3.1 Connect the power supply and data interface The electrical connection of the Thermovision Camera (supply voltage and measurement signal) is executed via the 12-pin plug connector on the rear of the device. Prefabricated connecting cables are available as ... - Page 20 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning Connecting the trigger input Personnel: Trained electrician The trigger input of the camera is galvanically separated from the operating voltage by an optocoupler. Pin A (brown) and Pin G (red) of...
- Page 21 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning Fig. 9: 7 M12-Plug Fig. 10: Backside view M12-Plug Fig. 11: View from front on RJ45 jack Fig. 12: Cable wiring diagram...
- Page 22 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning Numbering by M12 Numbering by RJ45 RJ45 Paar M12 RJ45 Paar WH-OG WH-OG WH-GN WH-GN WH-BN WH-BU WH-BU WH-BN Emissivity table The emissivity can be set via the software VisionWin..
-
Page 23: Installation Of Visionwin Software
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning 7.3.2 Installation of VisionWin software The latest version of VisionWin software has been tested on a computer with Windows XP32Bit. The installation with other operating systems is possible but it can lead to error messages and/or the software will not be supported. - Page 24 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning Then you have to register the camera to the driver. Please choose CameraSuite which you can find under point 2-Licensing If you see the image on the left please enter the key code written on the label of the CD/DVD.
- Page 25 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning The software will try to connect with a camera. If this does not work please press the button Discov- After a short time (less than a minute) a connection with the camera will be set up.
- Page 26 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning SDK driver components of the camera 7.3.2.2 Please note that only the RunTime part of the SDK shall be installed during installation. You will find a development installation in the CD/DVD directory CVB11.0 if you want to write your own software for the camera operation.
- Page 27 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning function CameraCalc_CountExposureTimes: integer Will show the number of loaded ExposureTime objects of the actual calibration file. This is the centerpiece of the calibration. Transferred Parameter: Type Term...
- Page 28 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning function CameraCalc_SelectExposureTable(index: integer): integer Activates the table for temperature calculation and temperature range scan (see CameraCalc_GetExposureTempRange). Transferred Parameter: Type Term Description Index of table to get the ExposureTime to be...
- Page 29 METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Installation and commissioning function CameraCalc_GetResulution(VAR Width: integer; VAR Height: integer): integer; Determines the resolution of the calibration file. Transferred Parameter: Type Term Description Width Variable for the result of the image width...
-
Page 30: Operation
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Operation Transferred Parameter: Type Term Description Indicator of memory block with source data Pointer Source Indicator of memory block with temperatures Pointer Source Return: Value Description Integer No error <>0 Error Unit for integration of the CameraWinDLL.DLL into the Delphi-Projects... -
Page 31: Maintenance
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Maintenance Maintenance Cleaning the sapphire lens protection window NOTICE! Lens is protected by an abrasion resistant exchangeable sapphire window. Lens may be damaged and measurement errors will occur if window is not installed. -
Page 32: Glossary
METIS Vision MV05 / MV09 Thermovision Camera for Industrial Applications Glossary Glossary Aligning the measurement system with the international temperature Calibrating scale. Usually a conically running area between lens assembly and meas- Cone of vision urement object in which the infrared radiation is recorded. Must be kept free of disturbing objects.
