DigiCore Technology (Pty) Ltd
P.O. Box 68270
Highveld Park, 0169
South Africa
+27(0)12 450 2222
Ctrack NX35 Technical Manual
DCT-MAN-296
CONFIG CONTROLLED
This document is the confidential proprietary information of DigiCore Technology (Pty) Ltd. Copyright in and ownership of this entire
document and its contents rests with DigiCore Technology (Pty) Ltd. No portion of or extract from this document may be reproduced,
quoted or utilised for any purpose whatsoever without the prior written consent of DigiCore Technology (Pty) Ltd.
APPROVAL
Revision
05
Date
03 October 2017
Author
Gerhard Botha
Reviewers
Dirk Meintjies
Approved by
Jaco le Roux
Advertisement
Table of Contents
Related Manuals for Ctrack NX35
Summary of Contents for Ctrack NX35
- Page 1 P.O. Box 68270 Highveld Park, 0169 South Africa +27(0)12 450 2222 Ctrack NX35 Technical Manual DCT-MAN-296 CONFIG CONTROLLED This document is the confidential proprietary information of DigiCore Technology (Pty) Ltd. Copyright in and ownership of this entire document and its contents rests with DigiCore Technology (Pty) Ltd. No portion of or extract from this document may be reproduced, quoted or utilised for any purpose whatsoever without the prior written consent of DigiCore Technology (Pty) Ltd.
-
Page 2: Table Of Contents
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 TABLE OF CONTENTS INTRODUCTION ....................7 1.1. Purpose of Document ........................7 1.2. Applicable Documents ......................... 7 1.3. NX35 Usage ........................... 7 SYSTEM OVERVIEW ................... - Page 3 FIGURE 1 - BLOCK DIAGRAM FIGURE 2 - MAIN HARNESS FIGURE 3 – MAIN CONNECTOR SIGNALS FIGURE 4 - SECONDARY HARNESS FIGURE 5 – SECONDARY CONNECTOR SIGNALS FIGURE 6 - NX35 PICTURE COMPANY CONFIDENTIAL Revision: 05 03 October 2017 Page 3 of 22...
- Page 4 DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 DOCUMENT HISTORY Date Author Revision Description of Change(s) 23 June 2017 G Botha First release 16 March 2017 G Botha Add usage par 1.3 Add labels par 1.4...
- Page 5 DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 DISCLAIMER Information provided in this manual is intended to be accurate and reliable. However, the DigiCore Group and its employees assume no responsibility for its use, nor for any infringements of rights of third parties which might result from its use.
- Page 6 DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 ABBREVIATIONS AND DEFINITIONS The following words, expressions and abbreviations shall herein before and hereafter have the meanings ascribed to them unless inconsistent with the meaning of the requirement:...
-
Page 7: Introduction
The NX35 device is designed to accurately track position and other data of vehicles or assets and report this data to a data center. The NX35 is used to gather information relevant to fleet management services, to plot a vehicle position on a map and also follow the route taken by a vehicle during a journey. The position and speed of the vehicle is sampled using GNSS (Global Navigation Satellite System) and reported through a Cellular Modem data link with industry standard communication protocols. -
Page 8: System Overview
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 2. SYSTEM OVERVIEW 2.1. HARDWARE SUB-SYSTEMS • Load-dump and overvoltage protection • Power supply and back-up battery charger • Internal back-up battery •... -
Page 9: High-Level System Overview
DCT-MAN-296 2.2. HIGH-LEVEL SYSTEM OVERVIEW • The NX35 hardware platform can be used for the Ctrack fleet products (Fleet Light, Assist and Solo) • Uses state of the art 32-bit microprocessor technology and flash device for non-volatile storage. • Latest Cellular-GPRS/SMS Cellular Modem with internal antenna for communication. Provision is made to populate a 2G, 3G, or 4G Cellular Modem. -
Page 10: Block Diagram
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 2.3. BLOCK DIAGRAM Pwr / Gnd Antenna (Int) 4 Digital In In 1-4 Ext GNSS 2 Digital Out 1-2 Ext uBlox M8030... -
Page 11: Identification And Options
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 2.4. IDENTIFICATION AND OPTIONS Model Number Integrated Cellular Radio Module NX35-G350 SARA-G350 Cellular Modem (2G) NX35-U200 LISA-U200 Cellular Modem (3G) NX35-L200 TOBY-L200 Cellular Modem (LTE) -
Page 12: External Interfaces
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 3. EXTERNAL INTERFACES 3.1. WIRING CONNECTIONS AND CONNECTORS FIGURE 2 - MAIN HARNESS COMPANY CONFIDENTIAL Revision: 05 03 October 2017 Page 12 of 22... -
Page 13: Figure 3 - Main Connector Signals
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 FIGURE 3 – MAIN CONNECTOR SIGNALS COMPANY CONFIDENTIAL Revision: 05 03 October 2017 Page 13 of 22 © DigiCore Technology (Pty) Ltd... -
Page 14: Figure 4 - Secondary Harness
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 FIGURE 4 - SECONDARY HARNESS COMPANY CONFIDENTIAL Revision: 05 03 October 2017 Page 14 of 22 © DigiCore Technology (Pty) Ltd... -
Page 15: Signal Description - Main/Secondary Connector
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 FIGURE 5 – SECONDARY CONNECTOR SIGNALS 3.2. SIGNAL DESCRIPTION – MAIN/SECONDARY CONNECTOR The following tables describes the signals with reference to Figure 2 - Main Harness to Figure 5 – Secondary Connector Signals. -
Page 16: Environmental
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 Main BUS/PRIV_IN_EXT BUSINESS / PRIVATE / PANIC INPUT Main BUS/PRIV_GND BUSINESS / PRIVATE / PANIC GROUND Main 1-WIRE_IN DRIVER ID 1 WIRE INPUT... -
Page 17: Mechanical

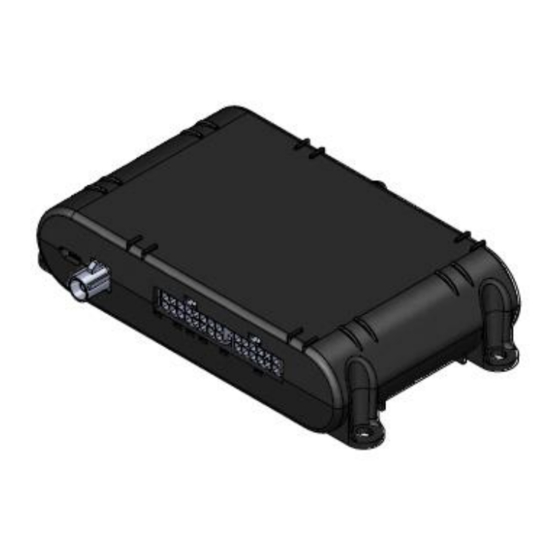

P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 3.5. MECHANICAL Dimensions: 131 x 73 x 29mm Weight: ~ 150g FIGURE 6 - NX35 PICTURE 3.6. LEDS Function Pattern and function On- Reading install state 1-Green Install State Flash –... -
Page 18: Gnss
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 *Note: 10Minutes after the unit has been finalised and the install tool disconnected, all LEDS will switch off for security reasons. To switch on the LEDs again, connect an install tool. -
Page 19: Option 1 - U-Blox Sara-G350 Cellular Module
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 3.8.1. Option 1 - u-blox SARA-G350 Cellular Module Quad band support GSM 850/900/1800/1900 MHz GPRS Class 10, CS1-CS4 – up to 85.6 kb/s. PBCCH support... -
Page 20: Option 4 - U-Blox Lisa-C200 Cellular Module
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 3.8.4. Option 4 - u-blox LISA-C200 Cellular Module CDMA band support 800, 1900 MHz (Sprint, Verizon) Mobile-originated and mobile-terminated SMS supported. Text modes supported... -
Page 21: Internal Components
DigiCore Technology (Pty) Ltd Manual P.O. Box 68270, Highveld Park 0169, South Africa Ctrack NX35 Technical Manual DCT-MAN-296 4. INTERNAL COMPONENTS 4.1. ACCELEROMETER An on-board 3-axis ±8g accelerometer is used for various movement-detection functions: 1. Vehicle movement 2. Roll over and device tamper 3. -
Page 22: Regulatory Compliance Statements
• this device must accept any interference received, including interference that may cause undesired operation Any changes or modifications made to this device that are not expressly approved by Ctrack may void your authority to operate the equipment. 5.2. INNOVATION SCIENCE AND ECONOMIC DEVELOPMENT (ISED) NOTICE This device complies with Industry Canada’s Licence-Exempt RSSs.
