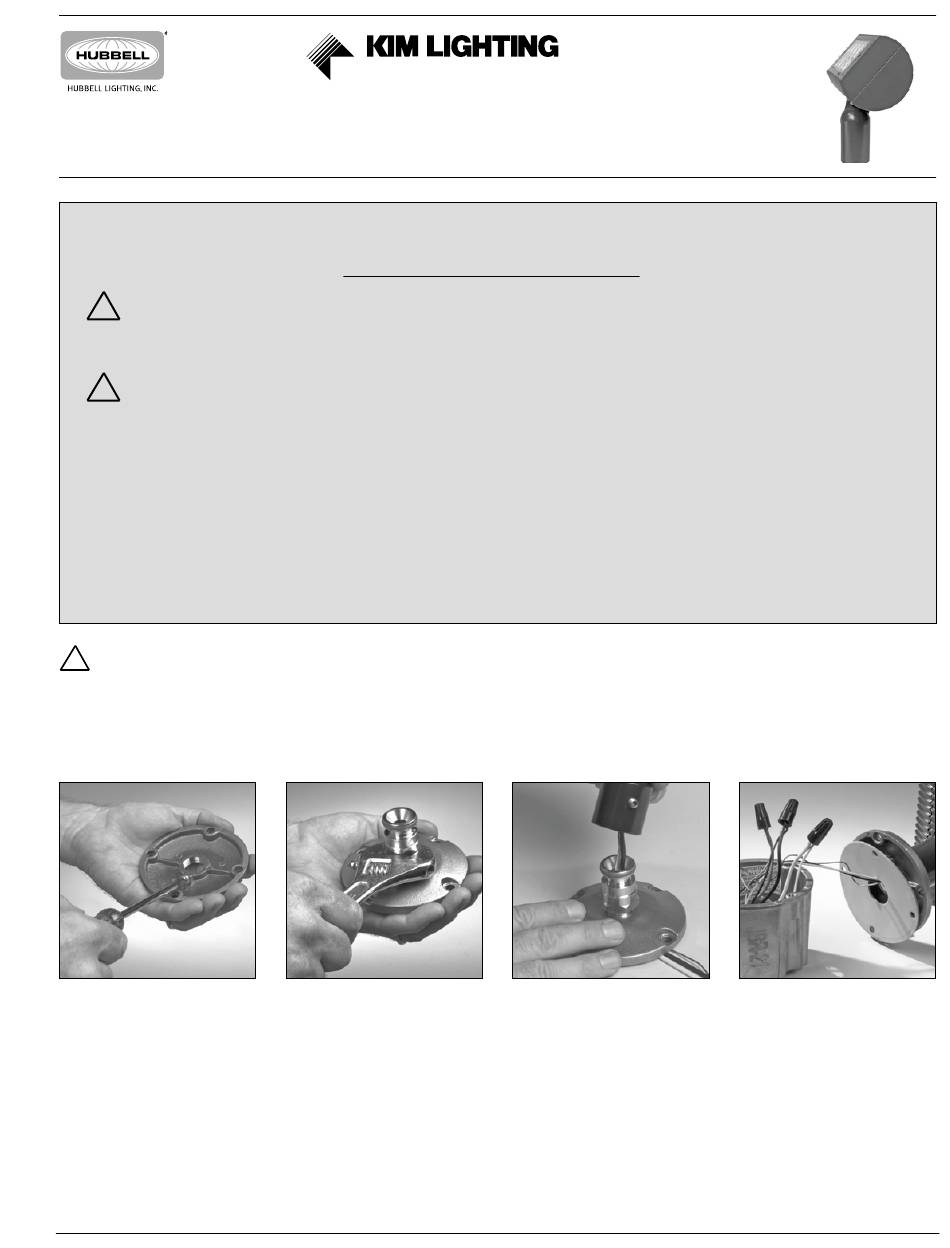

kim lighting Micro-Flood Installation Instructions

Micro-Flood Installation Instructions
®
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical
!
Code. Portable spear mounts using a cord and plug must be plugged into a receptacle protected by
a Ground Fault Circuit Interrupter in accordance with the National Electrical Code. Failure to do so
may result in serious personal injury. DO NOT operate luminaire with missing or damaged lens.
SAFETY WARNING: Fixtures can become very hot depending on the lamp wattage used. Glass
!
lenses and metal areas above and around the lamp can become hot enough to blister hands.
Particular care should be taken not to locate fixtures where small children can reach them if higher
wattages are used.
CAUTION: When relamping fixture avoid touching the lamp envelope with bare hands. Lighted lamp is HOT!
If touching the lamp is necessary during installation, clean the envelope with alcohol and dry with a clean,
soft cloth before burning. Contamination of the quartz envelope may reduce lamp performance. Fixtures
are approved for above ground installation only.
NOTE: Keep the lamp free from impact while burning, as this may deform the filament and shorten life for
Halogen/Metal Halide lamps
KEEP THIS SHEET FOR FUTURE REFERENCE.
!
Make certain electrical supply is OFF before starting fixture installation.

Tools Required:

q F" Allen Wrench
q Flat Head Screwdriver
1. Loosen set screw at bottom
of mounting device* with
Phillips Head screwdriver.
8/30/13 EC 130822022
16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861

IMPORTANT SAFETY INSTRUCTIONS!

q B" Allen Wrench
q Adjustable Wrench
2. Coat coupling threads with
a good sealant and tighten
coupling onto mounting
device*. Re-tighten set screw.
Status 17
q Phillips Head Screwdriver
q Thread Sealant
3. Install fixture onto coupling
and attach fixture leads
observing polarity ...
*Consult KIM Landscape Lighting Collection Catalog for mounting device options.
EL215
4. white-to-common, black-
to-voltage. Screw on Junction
box cover, making sure gasket
is securely in place.
Part No. 95500
