HMI-01
English/Español/Português
Document: 10000345283 / 00
65.0 mm
[2.56 in]

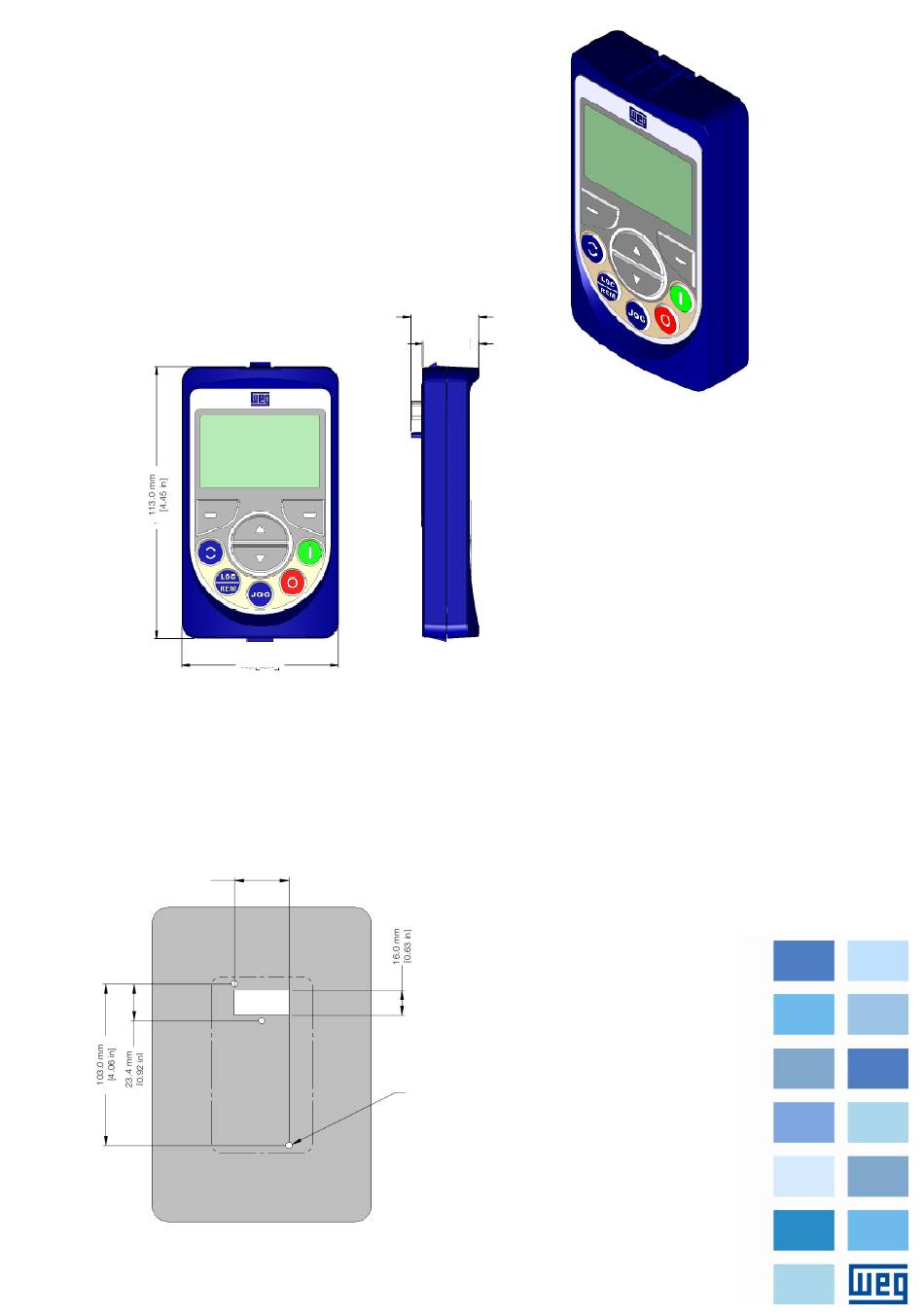

Details for Mounting the HMI without Frame on a Mounting Plate or on a Cabinet Door
Detalles de la Placa de Montaje o de la Puerta del Tablero (Armario) para el Montaje de
la HMI sin Moldura
Detalhes para Chapa de Montagem ou Porta de Painel para Montagem da HMI sem
Moldura
35.0 mm
[1.38 in]
28.5 mm
[1.12 in]
23.5 mm
[0.93 in]
Ø 4.0 mm [0.16 in] (3x)
Advertisement
Related Manuals for WEG HMI-01
Summary of Contents for WEG HMI-01
- Page 1 HMI-01 English/Español/Português Document: 10000345283 / 00 28.5 mm [1.12 in] 23.5 mm [0.93 in] 65.0 mm [2.56 in] Details for Mounting the HMI without Frame on a Mounting Plate or on a Cabinet Door Detalles de la Placa de Montaje o de la Puerta del Tablero (Armario) para el Montaje de...
- Page 2 Spacer M3 x 5.8 (2x) Screw M3 x 8 (2x) Separador M3 x 5.8 (2x) Tornillo M3 x 8 (2x) Espaçador M3 x 5.8 (2x) Parafuso M3 x 8 (2x) Torque: 0.5 N.m (4.4 lbf.in) Torque 0.5 N.m (4.4 lbf.in) NOTE! The keypad frame accessory can also be used to fix the HMI, refer to the chapter 7 of the CFW-11 User’s Manual.
