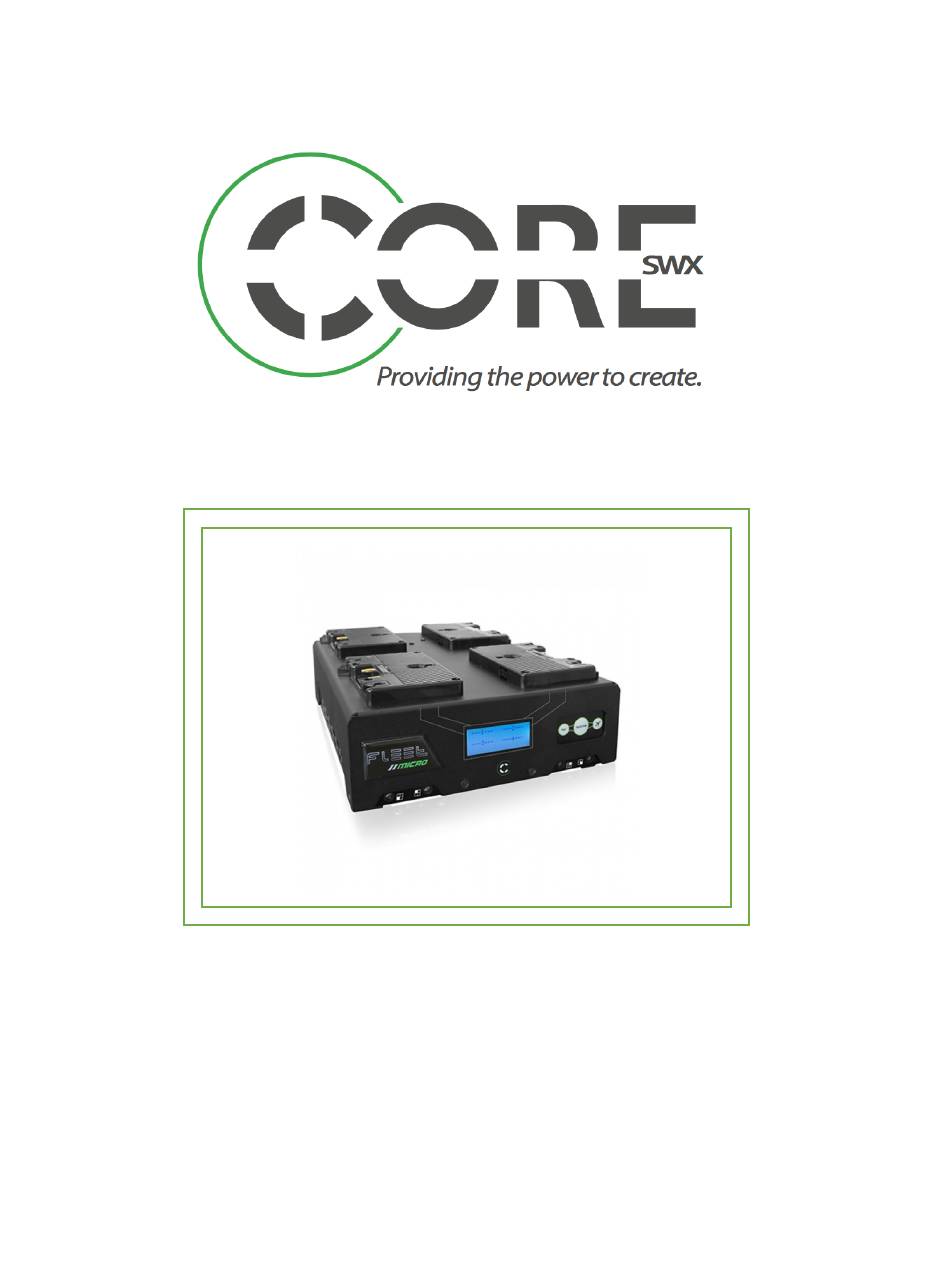

- Page 1 Fleet Micro Series Advanced Battery Charging System Dual and Quad Instructional Manual...
- Page 2 Introduction: Thank you for your choice in purchasing a Core SWX Fleet Micro Charger. The charger is designed to provide you a safe and reliable charging platform for your battery packs. This product is at the pinnacle of technological advancements, offering the features and performance of several different products, making it the most advanced charging product in the industry.
- Page 3 The LCD on the front of the Fleet Micro charger provides charge function status, selected battery data and reactionary feedback when pressing the onboard membrane button console. Multifunction Display Phases: Launch: Displaying Title Screen and Firmware version CORE SWX FLEET MICRO CHARGER Firmware xx.xx www.coreswx.com...
- Page 4 Display Battery Pack Data Screen when pressing Select/OK Button on Membrane Switch Console GUIDE EXAMPLE HCPRIMES 58% 15.8v Battery Name % Charged Voltage S/N 685 Oct16 Date of Manuf. Temp Actual Capacity Cycles Actual 13.1Ah 20Cycles Design Capacity Design 13.2Ah Pressing the Select/OK Button when on the Home Screen toggles through the Battery pack data of each battery pack, in the order from Position 1 to Position 4, each time the Select/OK Button is pressed.
-
Page 5: Test Mode
Test Mode: Fleet Micro chargers have a Test mode function which performs full charge-discharge-full charge routine, which will identify the capacity of the battery and indicate any performance issues, such as low battery voltage indicating a shorted cell or a cell imbalance condition. Test times will vary based on battery condition and watt hour rating. - Page 6 Initiate Safefly mode HCPRIMES 58% 15.8v For HCPRIMES pack? S/N 685 Oct16 Actual 13.1Ah 20Cycles Press ok Design 13.2Ah To confirm, press the Select/OK Button to start SAFEFLY mode on the selected pack. **You will have 5 seconds to press Select/OK to confirm SAFEFLY mode. Should the SAFEFLY button be pressed inadvertently, the LCD will revert back to the Home Screen after the 5 second prompt.
-
Page 7: Power Supply Mode
Power supply mode Activated On-board battery power Available xxx wh The LCD will reflect the Power Supply mode as well as provide aTotal WH available aggregate of the battery packs connected to the charger. When battery packs are connected during Power Supply Mode, it serves as a UPS (uninterrupted power supply) function. -
Page 8: Specifications
Specifications: Fleet Micro Q(Quad Charger): Dimensions: H: 4.25” L: 12.17” W: 9.25” Weight: 5.3lbs. Fleet Micro D(Dual Charger) Dimensions: Dimensions: H: 4.25” L: 9.25” W: 9.25” Weight: 3.7lbs. Electrical Data: Input Voltage: 90~240VAC, 50/60Hz Quick Charge Current: 3.0A per channel Discharge Current: 2.0A DC output: 90w, 16VDC Operational Temperature Range:... -
Page 9: Warranty
Disclaimer The information contained in this manual is believed to be correct at the time of issuance. Core SWX, LLC. reserves the right to make the changes to the information or specifications without obligation to notify any person of such revisions or changes. Changes will be incorporated in new versions of the manual.
