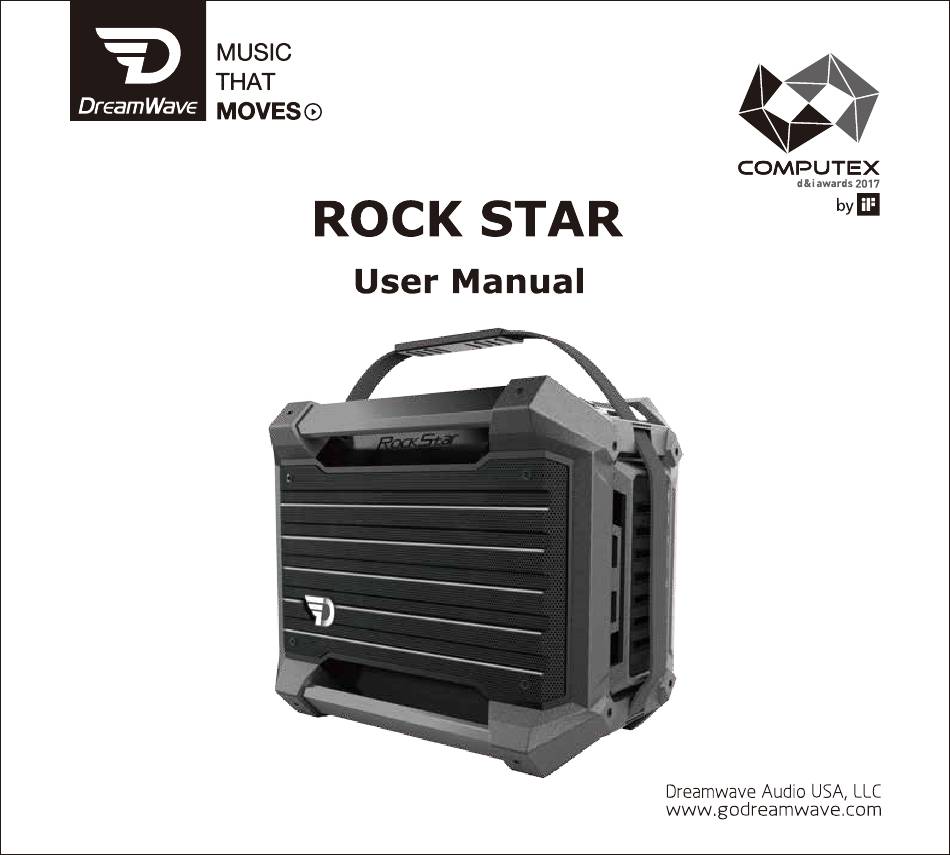

Summary of Contents for Dreamwave Rock Star
-
Page 2: Table Of Contents
CONTENTS What’s in the box ..........................1 Top Panel .............................2 Rear Panel ............................3 Instruments Connections ........................4 2.4G Wireless Multi-Pairing ......................5 Bluetooth/Charging..........................6 LED Indicator ............................7 Mobile APP ............................8 Strap Assembly ...........................9 Specifications ..........................10-13 Troubleshooting ..........................14... -
Page 3: What's In The Box
What’s in the box RockStar * 1 AC Adaptor * 1 AUX Cable * 1 XLR Microphone Cable * 2 Music that moves User Manual * 1 Warranty Card * 1 AUX Connector Convertor 3.5mm in / 6.5mm out * 1 6.5mm in / 3.5mm out * 1 Strap Assembly Pack Screw * 8... -
Page 4: Top Panel
Top Panel 2.4G AG VOL KB/BASS VOL DRUM /LINE VOL AU X/BT VOL DSP MODE MASTER VOL DSP ON /O F F 2 .4 G/PA IR P OWE R Refer to Page 7 Short press to select Default DSP or User DSP; DSP MODE: Turn the knob to select DSP sound effects MIC VOL:... -
Page 5: Rear Panel
Rear Panel Inputs with DSP e ects ff Inputs without DSP e ects ff Electric Guitar Line In Recorder Acoustic Guitar El ectri c drum Line In Audio Inputs Input Function Type of Jack Sensitivity of 1KHz 6.5mm, Mono -34dBV 6.5mm, Mono -34dBV Electric Guitar... -
Page 6: Instruments Connections
Inputs with DSP effects Electric Guitar *Initialisation may take 5 seconds upon plugging into CH1~CH4 Audio Source Inputs without DSP effects Keyboard / Bass Recorder Acoustic Guitar Audio Source Electric drum... -
Page 7: 2.4G Wireless Multi-Pairing
2.4G Wireless Multi-Pairing * More than one piece RockStar can be set as SLAVE speaker, within the 10M distance wireless range from the MASTER speaker. MASTER SLAVE 1 SLAVE 2 MASTER SLAVE MASTER SLAVE MASTER SLAVE Step 1. Choose one RockStar as Master speaker, turn it on and switch to MASTER, press button “2.4G/PAIR” for 3 seconds, LED “2.4G”... -
Page 8: Bluetooth/Charging
Bluetooth Short press BT button, BT LED quick flash in red light, indicating to search for Bluetooth pairing. AG VOL KB/BASS VOL DRUM /LINE VOL AU X/BT VOL BT LED in solid red -- Bluetooth pairing complete. DSP MODE MASTER VOL DSP ON /O F F 2 .4 G/PA IR P OWE R... -
Page 9: Led Indicator
LED Indicator 2.4G Indicator: Solid Red - 2.4G pairing complete Quick Flashing Red - searching for 2.4G pairing 2.4G Charging Indicator: Solid Red - charging LED off - charging complete ② Default DSP ① ⑤ Power DSP On/Off ③ ⑥ Bluetooth Low Power ④... -
Page 10: Mobile App
Mobile APP Amplifier LEVEL GAIN Advonced Options RockStar APP 30-Surround Dynamic Loudness Equalizer Modulation Rate Depth Please download RockStar mobile APP using QR scanner: Google Play Store Android Please download Mobile APP User Guide from: http://www.godreamwave.com/Manuals.aspx... -
Page 11: Strap Assembly
Strap Assembly (Optional) -
Page 12: Specifications
Specifications Inputs for MIC / Instruments 4 DSP Inputs APP Enabled Bluetooth 4.0+EDR, A2DP AVRCP (3.5mm * 1, 6.5mm * 3 ) 4 non-DSP inputs (3.5mm * 2, 6.5mm * 2) Digital Sound Management Power: 80W RMS USB 5V/2.1A output for charging mobile devices 3.7V/26000mAh or 18.5V/5200mAh... - Page 13 Bluetooth : 4.0 + EDR Bluetooth : 4.0 + EDR Support: Mobile APP Understøtter: Mobile APP A2DP, AVRCP A2DP, AVRCP 2.4G wireless Multi-pairing 2.4G trådløs Multi-parring DSP Studio Monitor Sound System DSP Studio Monitor lyd System 5V/2.1A power bank (96.2Wh) 5V/2.1A power bank (96.2Wh) IP rate: IPX5, splashproof...
- Page 14 Bluetooth: 4.0 + EDR Bluetooth: 4.0 + EDR Supporta: Mobile APP Funkcje: Mobile APP A2DP, AVRCP A2DP, AVRCP 2.4G wireless Multi-pairing 2.4G bezprzewodowe parowanie z kolejnym urządzeniem DSP Studio Monitor Sound System DSP studyjny system monitorowania dźwięku 5V/2.1A power bank (96.2Wh ) Power bank 5V/2.1A（96.2Wh) IP rate: IPX5, splashproof...
- Page 15 4.0 + EDR 4.0 + EDR 블루투스 버전: 藍牙版本： 手机 APP Mobile APP 지원가능: 支持： A2DP, AVRCP A2DP, AVRCP 2.4G 와이어리스 멀티-페어링 無線2.4G多臺設備連接 DSP 스튜디오 모니터 사운드 시스템 音频信号处理器-高端乐队音箱系统 5V/2.1A 파워 뱅크(96.2Wh) 5V/2.1A內置移動電源（96.2Wh） P rate: IPX5, 스플래시프루프 IPX5 防水等級： 80와트 RMS 80W RMS 정격...
-
Page 16: Troubleshooting
Clear the current pairing entry from your Bluetooth device. f. To further isolate the problem, do please shut down all other surrounding Bluetooth devices. g. Try re-pairing the speaker and the Bluetooth device. If all above do not solve your problem, please contact DreamWave Support via email. - Page 17 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
