Dip Switch Configuration - iSimple TranzitBLU HF ISFM2351 Installation & Operation Manual

General connections:
Power connections:
1. Red wire – Connect to 12V + ACC (switched power)
2. Black wire - Connect to chassis GND
Control Button connections:
1. Pink wire - Connect control button Pink wire to ISFM2351 Pink wire
2. Black wire - Connect control button Black wire to the ISFM2351 Black wires
Microphone:
1. Microphone - Plug into side of ISFM2351 module
Vehicle with a 3.5mm Auxiliary audio input.
The ISFM2351 is compatible with any vehicle with an auxiliary audio input. Simply
use the connection method described below and select your radios AUX input source
to enjoy your music or hear call ringtones and voice.
Audio connections:
1. 3.5mm connector – Connect into your vehicle's aux input jack.
Select your radio's aux input source to enjoy your music.
2. Antenna connectors - Do Not Use for this install option (insulate and DO NOT
connect to anything for best performance)
Vehicles without a 3.5mm Auxiliary audio input
Vehicles that do not have an aux input, the ISFM2351 is designed to connect to
the back of your radio in-line with your vehicle's antenna. The TranzIt BLU HF
disconnects the incoming antenna when in use, to deliver the cleanest possible audio
from your phone. This routes your phone's calls and music to the FM station 98.1,
or any radio station you choose, using the free TranzIt BLU HF application for your
smartphone.
Audio connections:
1. Antenna connectors – connect in-line with your antenna behind your radio.
Tune the radio to 98.1 FM to enjoy your music.
2. 3.5mm connector – Do Not Use for this install option (insulate and DO NOT
connect to anything for best performance)

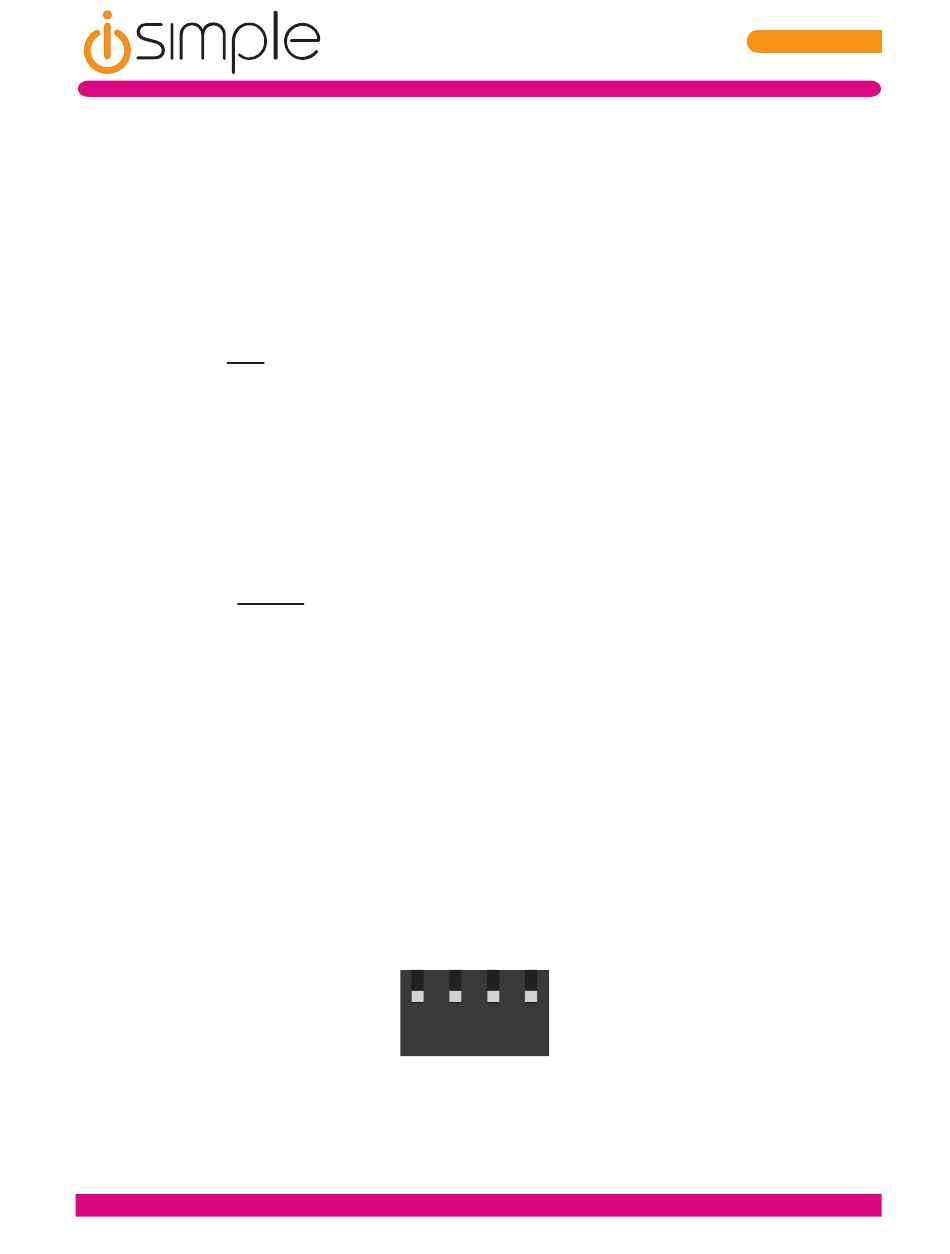

IV. DIP switch Configuration
Normal operation does not require any configuration of the DIP switches. All 4
DIP switches should be in the down position. Additional DIP switch configuration
information is available at the end of the troubleshooting section of this manual.
1 2 3 4
Normal Operation
TranzitBLU HF
Page 5
