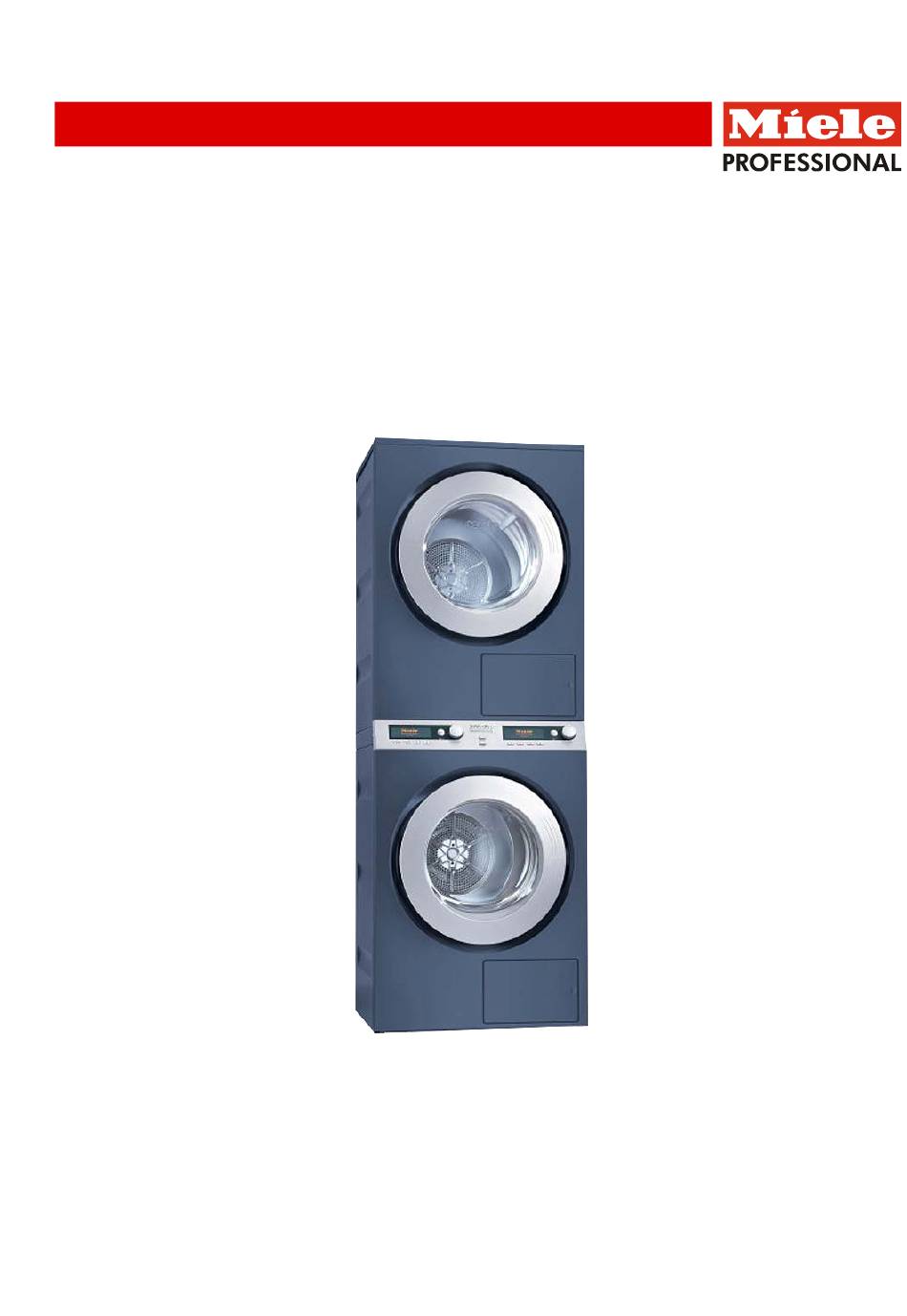

- Page 1 Installation plan Washer-dryer stack PWT 6089 EL (Electrically Heated) en - US 13.15 M.-Nr. 10 167 290 / 00...
- Page 2 U.S.A. Miele, Inc. National Headquarters 9 Independence Way Princeton, NJ 08540 Phone 800-991-9380 609-419-9898 Fax: 609-419-4241 www.mieleusa.com Technical Service & Support Nationwide Phone: 800-991-9380 Fax: 800-220-1348 proservice@mieleusa.com...
- Page 3 PWT 6089 EL - measurements in inches 11 3/4" 27 1/4" 11 3/4" 27 1/4" 20 7/8" 30" 28 5/8" 27 1/2" 43 1/4" 30" 27 1/4" 43 1/4"...
- Page 4 PWT 6089 EL - measurements in inches 5 7/8" 43 1/4"...
- Page 5 PWT 6089 EL - measurements in inches 27 1/4" 24 3/4" 1 5/8" 1/4" 14" 28"...
- Page 6 PWT 6089 EL - measurements in millimeters...
- Page 7 PWT 6089 EL - measurements in millimeters...
- Page 8 PWT 6089 EL - measurements in millimeters...
- Page 9 If necessary, equipotential bonding must be provided in accordance with all appropriate national and local regulations. Technical datasheet: PWT 6089 EL Date: Feb-2015 Page: 9...
- Page 10 If the electrical isolator [Q1] is not in full view of a person performing maintenance work on the machine at all times, the electrical isolator must be fitted with a lock. Installation proposals: -Electrical isolator before fusing- -Electrical isolator behind fusing- Technical datasheet: PWT 6089 EL Date: Feb-2015 Page: 10...
- Page 11 4 × rawl plugs (Ø × length) 5/16“ x 1 9/16“ 8 × 40 mm Machine must be bolted to the floor! Fixing materials for a floating screed floor are to be provided on site. Technical datasheet: PWT 6089 EL Date: Feb-2015 Page: 11...
- Page 12 (at distance of 3’ 3” / 1 m and height of 5’3” / 1.6 m) Installation should only be carried out by authorized installers in accordance with valid regulations! Observe installation instructions when installing machine! All rights reserved! Technical datasheet: PWT 6089 EL Date: Feb-2015 Page: 12...
