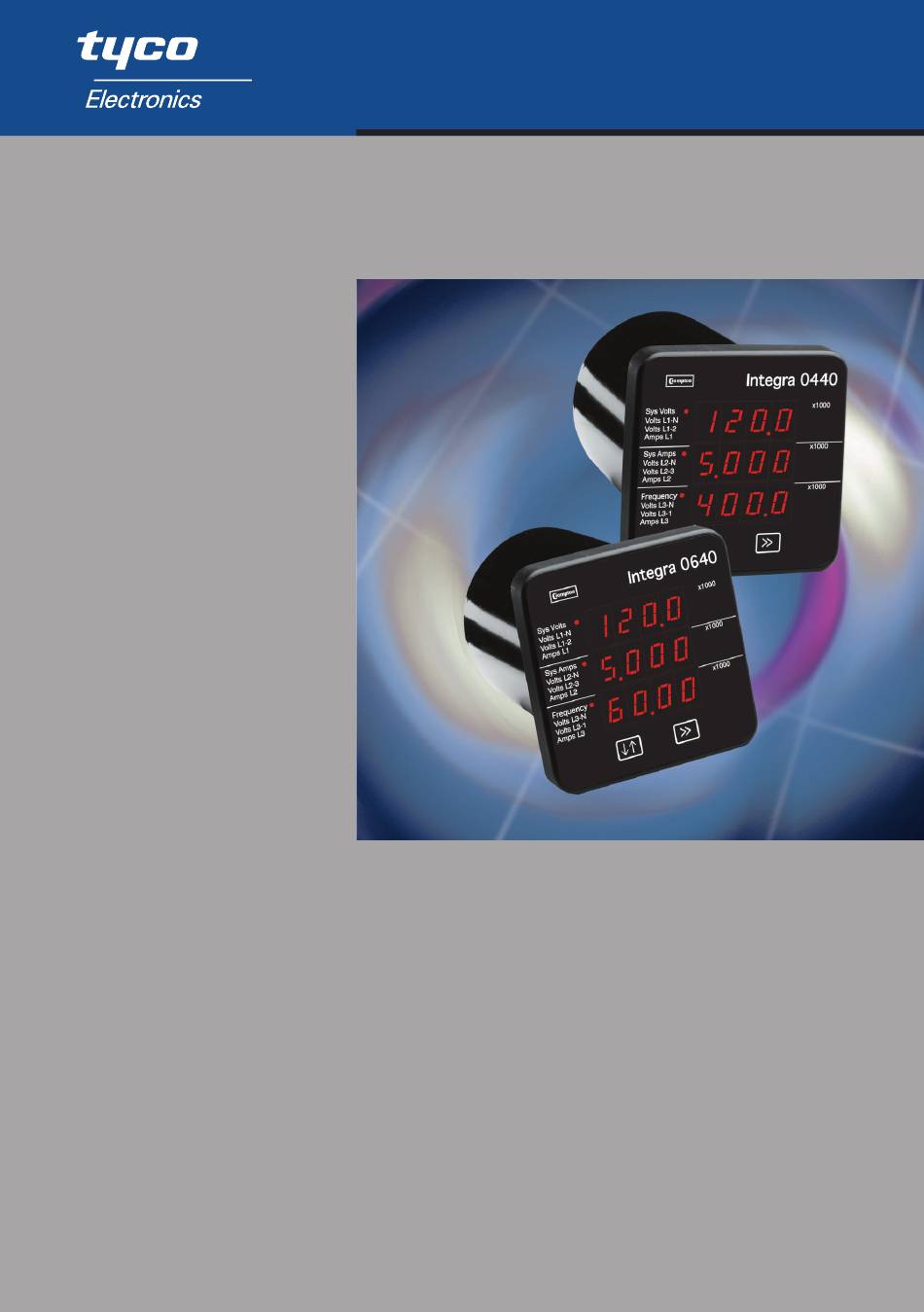

- Page 1 Energy Division http://energy.tycoelectronics.com Installation and Operating Manual SWITCHBOARD INTEGRA 0640 & 0440 INTEGRA 0640 & 0440 Digital Metering of Volts, Amps and Frequency at 50 / 60 Hz & 400 Hz...
- Page 2 12 to 48V DC. nominal +25%, -15% (10.2V DC absolute minimum to 60V DC absolute maximum) d.c. supply burden Measuring Ranges Values of measured quantities for which errors are defined. Voltage 70 .. 120% of nominal Current 5 .. 120% of nominal Frequency 45 .. 66 Hz (Integra 0640)
- Page 3 Accuracy Integra 0640 Voltage 0.4% of reading ±0.1% of range Current 0.4% of reading ±0.1% of range Frequency 0.15% of mid frequency Temperature coefficient 0.013%/°C typical Response time to step input 1.5 seconds approx. EMC Standards EMC Immunity EN61326 for Industrial Locations to performance criterion A...
-
Page 4: Connection Diagrams
Auxiliary Supply INTEGRA should ideally be powered from a dedicated supply, however it may be powered from the signal source, providing the source remains within tolerance for the auxilary supply. Fusing This unit must be fitted with external fuses in voltage and auxiliary supply lines. Voltage input lines must be fused with a quick blow fuse 1A maximum.
