AMX Acendo Vibe ACV-2100 Quick Start Manual

Overview

The ACV-2100 features a connector bay door that also serves as a hinged Wall Mount
Bracket, which allows easy access to the Connector Bay without having to dismount
the unit. The Wall Mount Bracket features a cutout for cable routing and straps for cable
management.
Side Panel
Keypad
Front
Rear
Rubber feet (removable, x2)

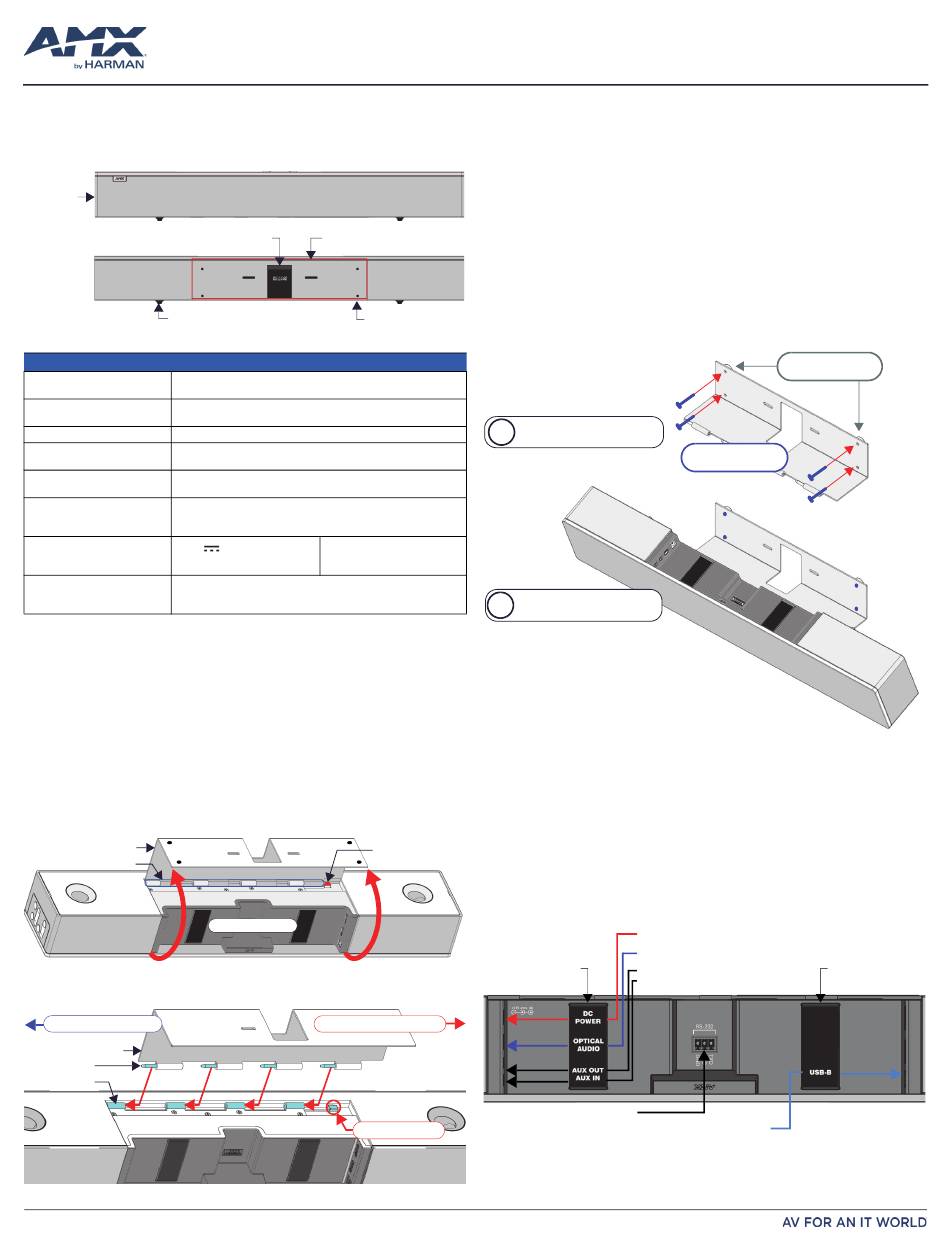

FIG. 1
ACV-2100 (FRONT/REAR VIEWS)

PRODUCT SPECIFICATIONS

MODELS AVAILABLE • ACV-2100GR, Grey (FG4121-00GR)
• ACV-2100BL, Black (FG4121-00BL)
DIMENSIONS (HWD) • 3" x 23 1/2" x 3 15/16" (76 mm x 590 mm x 100 mm)
• Depth with optional wall mount spacers: 4 1/8" (105 mm)
WEIGHT 6.3 lbs (2.86 kg)
ACTIVE POWER REQUIREMENTS • ~100-240V, 1.3A max
• Only use the included power supply
REGULATORY COMPLIANCE FCC 47 CFR Part 15, Subpart C / Subpart B (emissions)
EN 55024, EN 60950-1, IEC/EN/UL 60065:2014
ENVIRONMENTAL • Temperature (Operating): 32° F to 122° F (0° C to 50° C)
• Temperature (Storage): -4° F to 158° F (-20° C to 70° C)
• Humidity (Operating): 5% to 85% RH non-condensing
• 15V
INCLUDED ACCESSORIES
• Remote Control
• CBL-USB-FL2-16, USB 2.0 16ft Extension Cable (FG10-2220-16)
OPTIONAL ACCESSORIES • CBL-USB-FL2-33, USB 2.0 33ft Extension Cable (FG10-2220-33)
• ACR-5100, Meeting Collaboration System (FG4051-00)

Credenza Installation

Note: To ensure highest possible sound quality, the rubber feet on the bottom panel
must remain in place for surface-mount installations.
The ACV-2100 can sit on a hard, flat surface such as a credenza, tabletop or desk.
When choosing a surface location, consider a space that will not interfere with
workspaces or other installed devices. Connect cables as necessary - see the
Connections section for details.

Wall Mount Installation

For best aesthetic in wall mount installations, remove the rubber feet from the bottom
panel: carefully peel each foot off of the bottom surface.

Removing the Wall Mount Bracket

1. Open the Wall Mount Bracket (held closed by internal magnets).
2. Press and hold the Release Button to slide the Wall Mount Bracket out (over the
button) to disengage the pins on the bracket from the hinges on the unit (FIG. 2).
Bracket/Door
Hinges/Pins
FIG. 2
ACV-2100 BOTTOM VIEW - OPENING THE WALL MOUNT BRACKET
3. Lift the Wall Mount Bracket off of the hinges to remove (FIG. 3):
Slide pins in to install
Bracket/Door
Pins (x4)
Hinges (x4)
FIG. 3
ACV-2100 BOTTOM VIEW - REMOVING THE WALL MOUNT BRACKET
Cable Cutout Wall Mount Bracket
mounting holes (x4)
• 6' USB 2.0 Cable
/ 4A.Power Supply
• 5mm Wall Mount Spacers (4)
• Lock-Down Screws (2)
Release Button
Connector Bay
Slide pins out to remove
Release Button
ACV-2100
Acendo Vibe™ Conferencing Sound Bar

Mounting the Wall Mount Bracket and Attaching the ACV-2100

1. Use the Wall Mount Bracket as a template to mark the locations for the (4)
mounting screws (not included). Use mounting screws and hardware appropriate
for the surface being utilized to secure the bracket to the wall.
Optionally, place the four included Wall Mount Spacers between the Bracket/
Door and the wall to create a 5mm gap for routing flat cables if not hiding them
behind the drywall (see FIG. 6).
2. Attach the ACV-2100 to the Bracket/Door by sliding the pins on the bracket into
the hinges on the rear of the main unit (see FIG. 3):
a. Position the ACV-2100 with the bottom panel facing the wall and align the
hinges on the main unit with the pins on the bracket.
b. Carefully slide the pins into the hinges, until the bracket/door snaps into
place.
Note: Press the door into place so that the last pin depresses the Release
Button, allowing the pins to slide into the hinges (see FIG. 3).
c. With the ACV-2100 attached to the bracket/door, rotate the unit up to its
seated position. Note that the door snaps shut and is held closed via internal
magnets.
Note: Ensure that cables do not obstruct the complete closing of the unit.
Mount the Bracket to the
a
wall via 4 mounting screws
Attach the ACV-2100 to the
b
Bracket via hinges & pins
FIG. 4
WALL MOUNTING THE ACV-2100
3. Connect cables as necessary - open the Wall Mount Bracket to access the
connector bay (see FIG. 2).
4. Rotate the ACV-2100 into seated position. The Wall Mount Bracket is secured with
magnets (see FIG. 6).

Connections

All cable connectors are located within the Connector Bay (rear panel).
• For surface installations, place the unit face-down and open the Connector Bay
Door to manage cables/connectors.
• For wall-mounted installations, simply rotate the ACV-2100 unit down and away
from the wall to access the Connector Bay.
There are two sets of connectors on the inner side panels of the Connector Bay. Each
connector is labeled on the elastic cable straps (FIG. 5): .
cable strap
RS-232 (3-pin captive wire)
FIG. 5
ACV-2100 CONNECTOR BAY
Run each cable through the cable access hole in the bracket/door and under the
cable strap.

QUICK START GUIDE

mounting spacers
(x4, optional)
mounting screws
(x4, not included)
DC Power input
Optical audio input
Analog audio output
Analog audio input
USB (Type B)
cable strap
