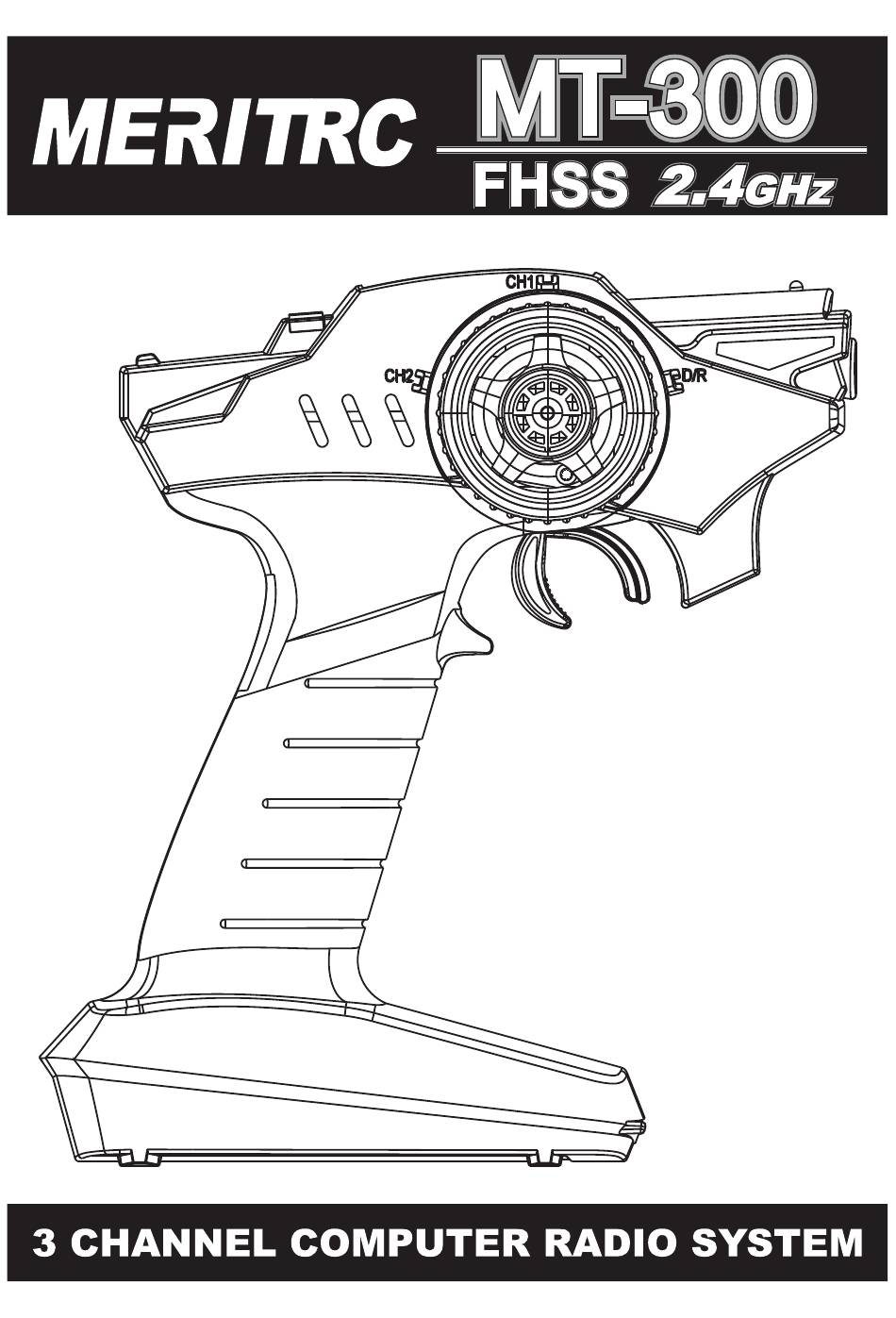

Summary of Contents for MeritRC MT-300
- Page 6 The wave length of the 2.4GHz is much shorter than that of the conventional frequencies, it is very susceptible to loss of signal which results in a receiving error. To obtain the best results, please refer to the following instructions; 1.The antenna must be kept as straight as possible.
- Page 7 Steering neutral adjustments can be made by moving the steering trim lever to the left or right. When you install a servo, always check to be sure the servo is at its neutral position. Adjust the servo horn position and linkage so both are parallel. Be sure the steering trim on the transmitter Steering Trim Lever is at the neutral position.
- Page 8 Please note the setup must based on pair procedure well. 1. Turn the power switch on the transmitter & receiver to the ON position, the LED on transmitter & receiver are continuously lit. 2. Move the steering wheel or throttle trigger to the position where you want the servo to move, press and hold the receiver setup button for 2 second until the red LED on the receiver flash slowly, then press and hold the receiver setup button again within 5 seconds (Note: after 5 seconds F/S setup will reset, you have to start over at step one above) until the receiver LED is continuously lit, that's mean the F/S function has been correctly set.
