Summary of Contents for Anatomic SITT Zitzi Carseat pro

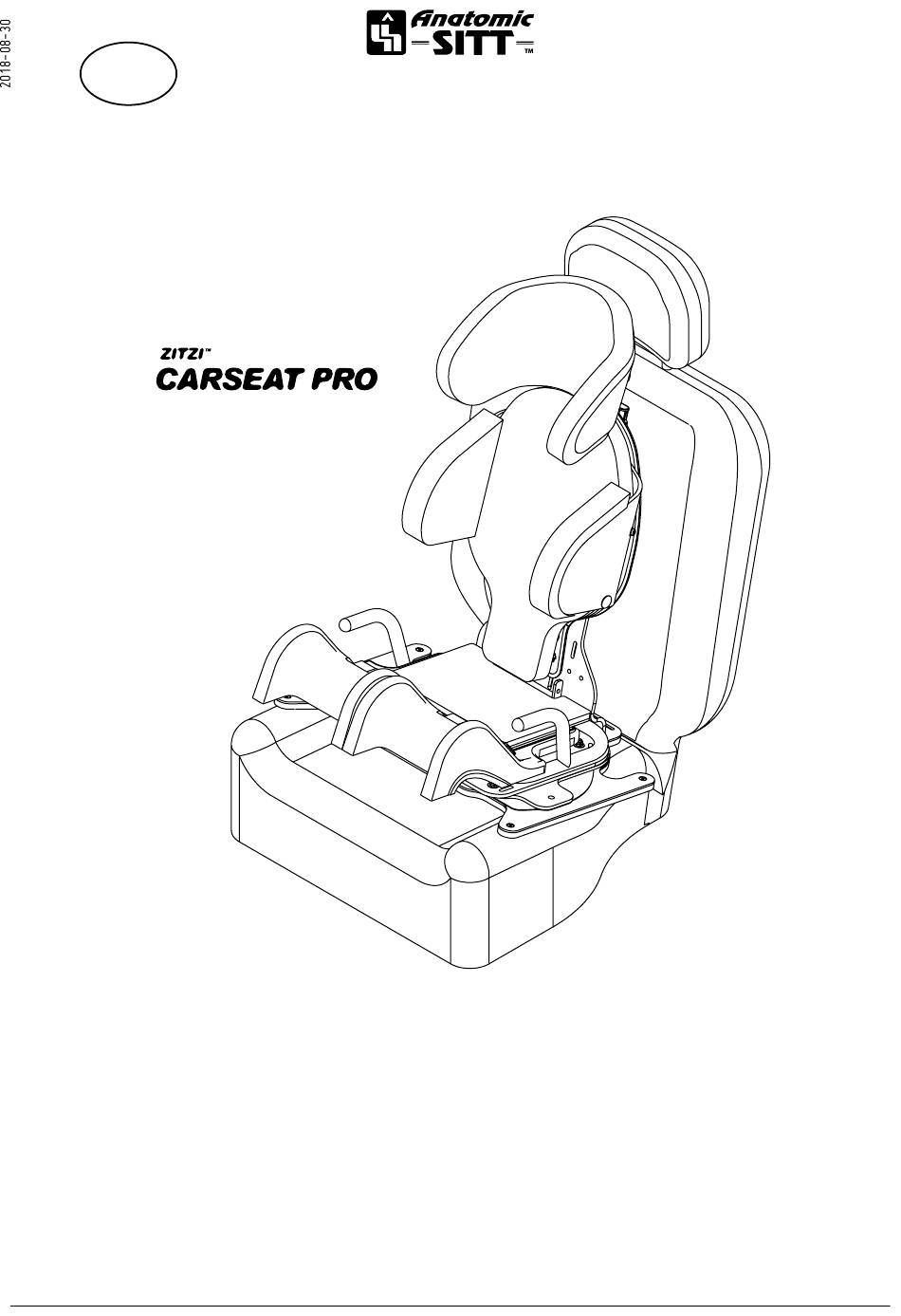

- Page 1 User Manual Zitzi Carseat pro...
-
Page 2: Table Of Contents
Pelvis support ........10 Materials������������������������������������������������������������ 19 Congratulations on your choice of car seat Zitzi Carseat Pro� It is a safety seat to grow in and we know there is a chair that will work well for a long time to come�... -
Page 3: Safety Precautions
• Zitzi Carseat Pro must always be fastened with a seat belt even if it is not currently used� A loose seat could cause damage in a rapid deceleration� •... -
Page 4: Tools
Start with take away the lining of the seat plate to get to the adjustment bolts� Note! Do not loosen the bolt completely, just loosen it up a bit� User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 5: Leg Length Difference
Loosen the screw of the leg part by using the wrench� Pull the seat slope adjustment to desired position� Lock the screw� User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 6: Abduction And Adduction
Loosen the front screw on the leg part by using the wrench� Move the leg part to desired position and tighten the screw when you reached the desired position� Neutral Abduction Adduction / Windswept User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 7: Adjustment Of The Back
� Either you cut out just the trunk, or do you cut the whole plate� IMPORTANT! Never remove more than 2 cm from back plate� User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 8: Adjustment Of The Lateral Support
Adjustment of the lateral support Loosen the red marked knobs (4) and then adjust to the desired width, angle and height� Lock knobs when the desired adjustment is reached� Knobs User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 9: Headrest
Loosen the nut caps (D) on the M6 nuts� • Loosen the adjustment screws (C)� • Then adjust to desired height and angle� • Lock screws (C)� • Put the nut caps back (D)� User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 10: Pelvis Support
The pelvic support is mounted in the seat’s pelvic support brackets with enclosed screws, nuts and washers as illustrated� Tighten the screws after assembly� NOTE! The pelvic supports should be placed inside the security bow� User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 11: Lumbar Support
Velcro� • Then put back the lining� Velcro Inflatable lumbar support with pump as an option User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 12: Footrest
Adjusting the footrest The footrest to Carseat pro is foldable� To adjust the height of the footrest loosen the knob and set to desired Fig 2 height� User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 13: Hip Belt
When replacing of the hip belt Move the straps through the red marked traces in the plate according to the Triglide method (E)� NOTE! Do not forget to use the seat belt! User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 14: Mounting Of The Support Series
WARNING! Be sure to allow enough room for the neck. Also check the pressure of the strap and belt pads and that they are where they should be. User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 15: Table
NOTE! Ensure that the table is not too tight around the patient’s stomach, and to secure it in place� Velcro on the front of the table Tri-glide Tri-glide Velcro Tri-glide User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 16: Mounting In The Car
The seat belt must be drawn as holder� illustrated in the picture� • Place Zitzi Carseat Pro in the car seat� • Make sure the Carseat Pro is centered� • Place the child into your Carseat Pro�... -
Page 17: Swivel Base
NOTE! Always ensure the block has been locked thoroughly before entry and exit, and before process of the vehicle is started� Neutral Turned-out Fully turned-out User manual – Zitzi Carseat Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 18: Maintenance Instructions
(textiles) (see next page)� Combinations Zitzi Carseat Pro is an ECE-approved product that can be combined with all the accessories described in this manual� Zitzi Carseat Pro may NOT be combined with other products�... -
Page 19: Warranty
Regulary examine that all the screws are securely locked� • Regulary examine the wear of straps and cushions� • You should check the above points each time the user will use Zitzi Carseat Pro� Materials • Metal Safety bow, profiles, footrest bracket, headrest stay, pelvis support brackets, leg part reinforcement, seat slope adjustment bracket�... - Page 20 Anatomic SITT AB (tillverkare) Box 6137, SE-600 06 Norrköping, Sweden Tel +46 11 16 18 00 Fax +46 11 16 20 05 Besöksadress Terminalgatan 1, SE-602 29 Norrköping, Sweden Anatomic SITT A/S Viengevej 4, 8240 Risskov, Denmark Tel +45 86 17 01 74...
