Q Acoustics Q-AV Table Stand Installation Instructions

Q-AV Table Stand - Installation Instructions

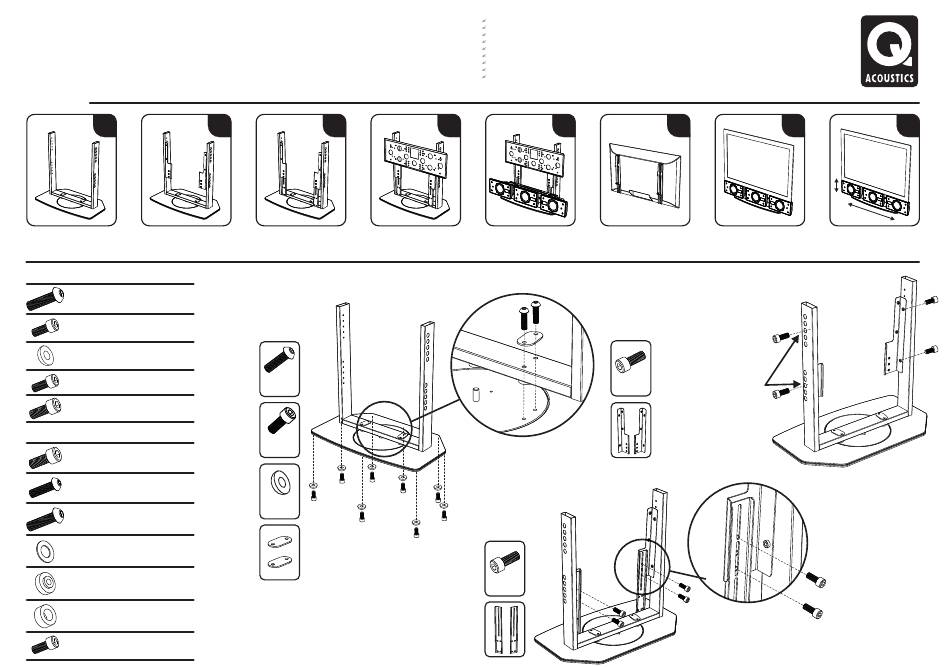

QUICK GUIDE
1
Attach U-Section To Base Attach TV Mounting Plate
Fixings To U-Section
Fixing Kit 1 (Small Kit)
x4
A - M8 x 45mm
x16
B - M6 x 16mm
x8
C - FOOT
x8
D - M5 x 10mm
x8
E - M8 x 20mm
Fixing Kit 2 (Large Kit)
F - M4 x 25mm I - M6 x 30mm
x4
G - M5 x 30mm J - M8 x 50mm
H - M6 x 50mm K - M8 x 30mm
x4
L - M6 x 20mm
x2
M - M8 x 20mm
N - M4 P - M6 x4
O - M5 Q - M8
x4
R - M8 x 6.5mm T - M5 x 6.5mm
S - M6 x 6.5mm U - M4 x 6.5mm
V - M8 x 4mm x4
W - M8 x 12.5mm
x2
X - M6 x 20mm
2 3
Attach LCR Hanger Brackets Attach TV Mounting Plate
To TV Mounting Plate Fixings
1 Attach Rubber Feet To Base
And Attach U-Section To Base
Ax4
Dx8
Cx8
READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING YOUR EQUIPMENT.
THESE INSTRUCTIONS SHOULD BE USED IN CONJUNCTION WITH THE Q-AV LCR50 USER MANUAL.
PLACE THE TABLE STAND IN A SUITABLE LOCATION MAKING SURE THE SURFACE IS HORIZONTAL AND FLAT.
DO NOT ATTEMPT TO ALTER OR MODIFY ANY PART OF THE TABLE STAND OR IT'S ATTACHMENTS.
DO NOT USE IF ANY PARTS ARE BROKEN OR APPEAR TO BE DAMAGED.
TIGHTEN ALL BOLTS AND FIXINGS SECURELY. ONLY USE FIXINGS PROVIDED WITH THIS STAND.
DO NOT MOUNT YOUR TV NEAR TO SOURCES OF HEAT OR MOISTURE.
ALWAYS HAVE A MINIMUM OF TWO PERSONS TO INSTALL THE TV.
DO NOT ATTEMPT TO LIFT OR RELOCATE THE STAND WHILST THE TV IS ATTACHED
4 5
Hang Speaker Assembly Attach Screen Fixing
On LCR Hanger Brackets Uprights To Screen
2
x2
Bx4
3
Attach LCR Hanger Brackets
To TV Mounting Plate Fixings
Bx4
6 7
Hang Screen on Bracket Fine Adjust Speaker Position
Plate
Attach TV Mounting Plates
To U-Section
NOTE:
Choose holes from 5 possible
fixing positions depending on
dimensions and fixing
positions on the screen. You
may need to change position
of these fixings once you have
determined your screen's
mounted position.
8
