Summary of Contents for Electrical Factory Outlet AUTOTRIP

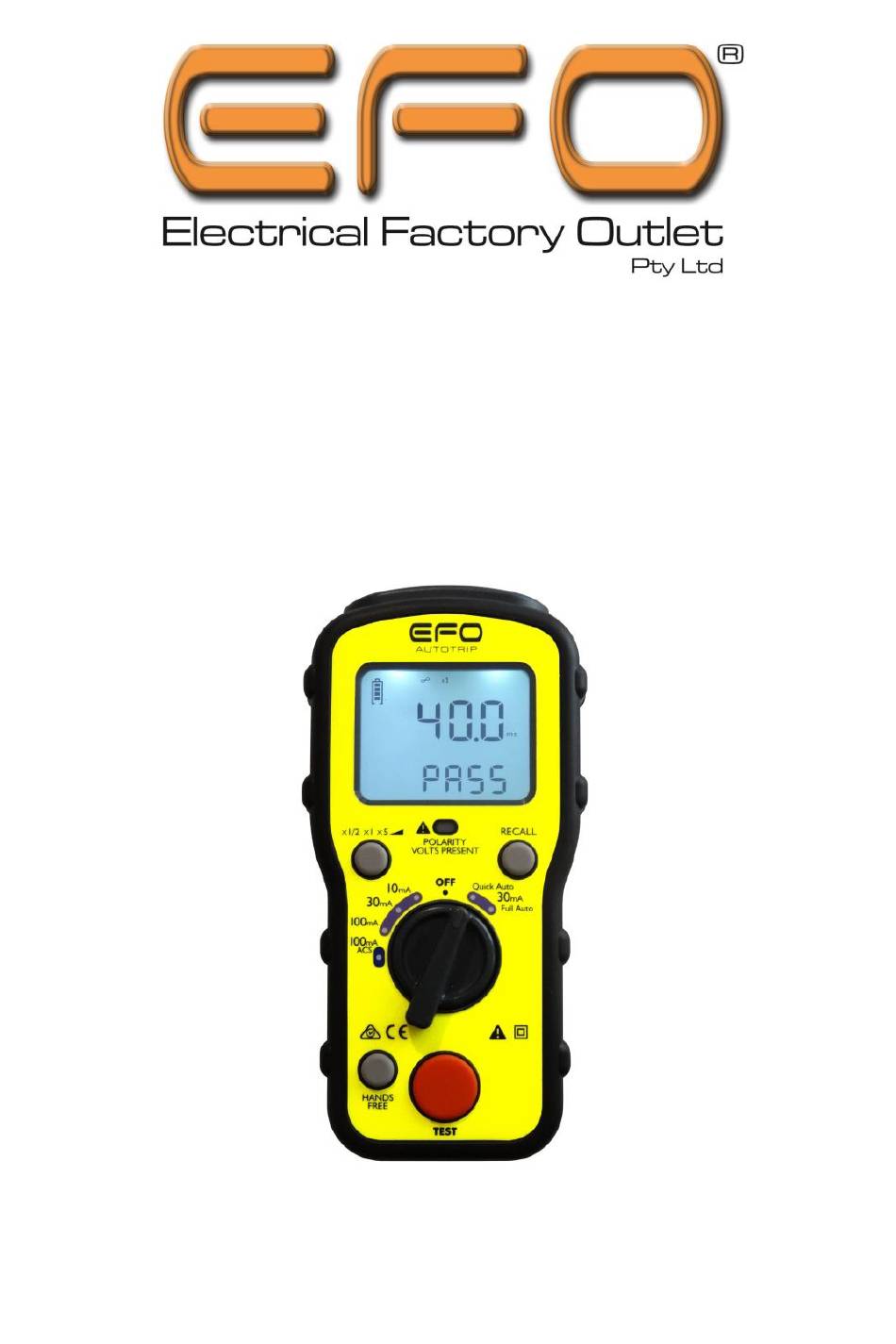

- Page 1 AUTOTRIP RCD TESTER USER MANUAL...
- Page 2 The AUTOTRIP must only be used by suitably trained or competant persons. Before using the AUTOTRIP please read and fully understand these instructions paying particular attention to the safety warnings. Do not use this tester in a manner other than that described in this booklet.
-
Page 3: To Install Or Replace Batteries
Symbols marked on the equipment Caution refer to instruction manual and accompaning notes Double Insulation Equipment complies with current EU directives ACMA mark Batteries Do not switch the instrument on or use it with the battery cover removed. When installing batteries observe correct polarity do not mix old and new batteries. - Page 4 LED indicator is not able to determine N-PE supply reversal. Pass Fail Result In addition to displaying the time taken for the RCD to trip the AUTOTRIP will also indicate whether it has passed or failed the RCD requirements.
-
Page 5: Audible Tones
(marked N) and the Green Earth terminal (marked E). Test lead configuration The AUTOTRIP can be used with 2 different types of connecting lead. 1 Ref: TL-3P Mains lead; 3 x 4mm plugs to a 10A plug Optional Accessory 2 Ref: TL-RGB 3-Pole distribution board test lead set;... - Page 6 Hands Free Function Mains supply wiring and voltage test When first connected to a mains supply the AUTOTRIP will automatically conduct a safety test to ensure that the Live, Neutral and Earth conductors are all connected correctly and that the supply voltage is in the acceptable range (195-253V).
-
Page 7: Test Requirements
RCD TEST FUNCTIONS The AUTOTRIP will test Type I (10mA) & Type II (30mA) RCD standard (AC) types across the full range of tests required and also RCD (S) type 100mA rated RCD’s. Test Requirements Each (AC) type RCD should be tested to ensure that it operates with a maximum... - Page 8 The AUTOTRIP takes care of this for you by alternating the start point of consecutive tests at any given setting. If for example you have selected a test at the rated trip current (x1) of a 30mA RCD, the first press of the test button will apply a 30mA fault current starting on the positive half cycle (0°)
- Page 9 The AUTOTRIP also includes a diagnostic Ramp test feature. In this mode rather than applying a steady fault current and measuring the time taken for the RCD to trip, the AUTOTRIP gradually increases the fault current and identifies the level of leakage at which the RCD trips.
- Page 10 Upon completion of the auto test routine the results for each setting can be recalled by using the RECALL button to cycle through the routine. The AUTOTRIP will also indicate whether it has passed or failed the RCD requirements. 30mA Full Auto Test Turn the rotary selector to the ‘30mA Full AUTO’...
- Page 11 38ms – 1999ms Standards To meet 300V CATIII The AUTOTRIP complies fully with the requirements of EN61010 and complies with the sections of EN61557, Electrical Safety in Low Voltage Systems up to 1000V AC and 1500V DC as listed below.
- Page 12 For repair and calibration please contact place of purchase. Electrical Factory Outlet Pty Ltd PO Box 701, Rochedale South, QLD 4123 PH +61 7 3411 0303 E-mail: sales@electricalfactory.com.au www.electricalfactory.com.au...
