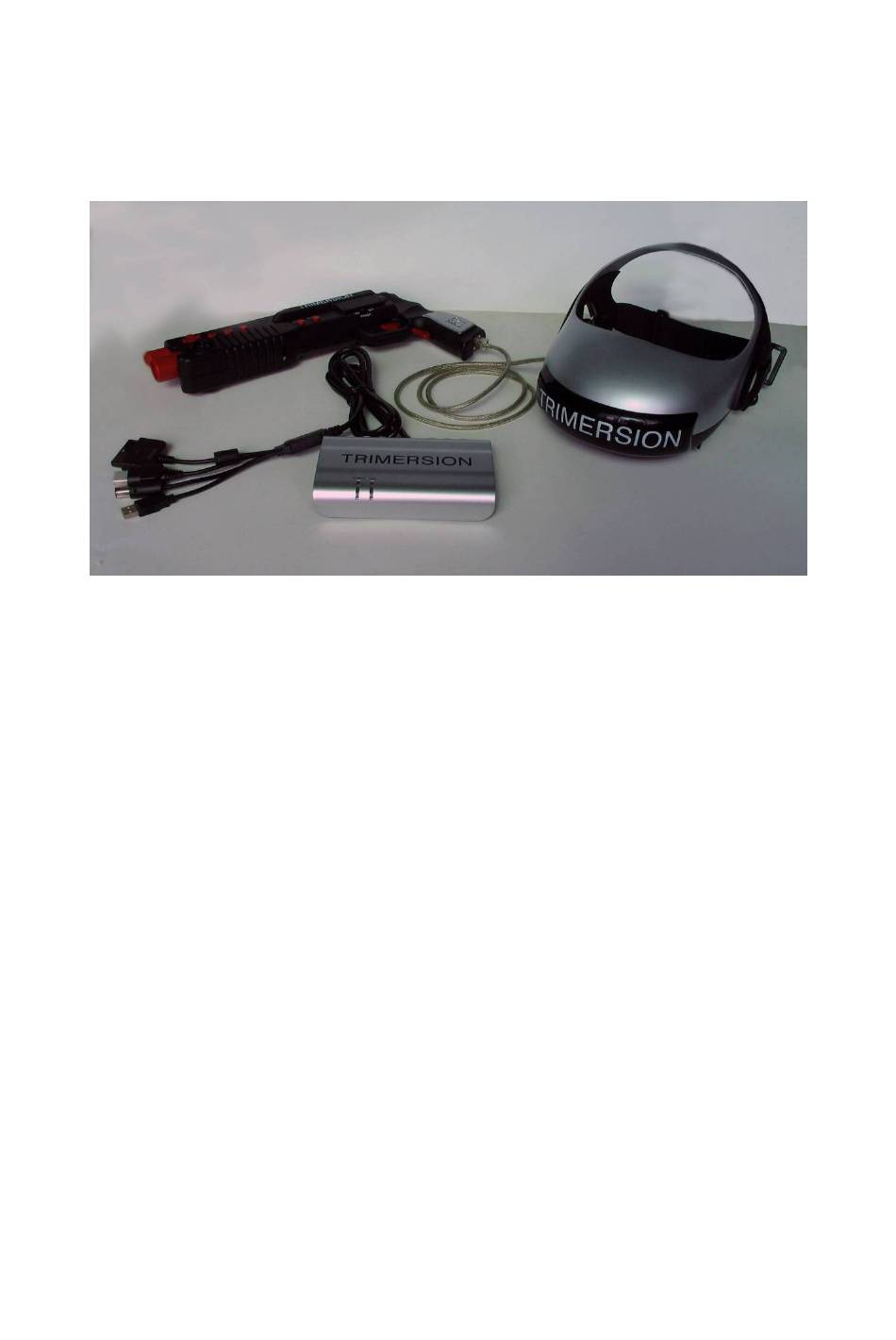

PACKAGE CONTENTS:
1. 1 GUN CONTROLLER
2. 1 BASE STATION
3. 1 HEAD MOUNTED DISPLAY (HMD)
4. RCA cables to connect BASE STATION
5. Mini Stereo to RCA ADAPTER
6. Instruction Manual
SYSTEM FEATURES:
Wireless GUN CONTROLLER
Wireless Audio and Video transmission from BASE STATION to HMD
QVGA (640 x 480) Color LCD display in HMD
1Watt Audio Amp in HMD
Gyro Head Motion Tracker in HMD
All standard controls of a gamepad on GUN CONTROLLER
Macro programming on GUN CONTROLLER
BASE STATION works with a PC or Mac USB, Playstation, Xbox and Game Cube game
controller connectors
BASE STATION has video through (IN/OUT) for connecting a TV while TRIMERSION is in use
GUN CONTROLLER and HMD run on (4) AA Batteries
DIRECTIONS FOR PLAY:
3001AD
TRIMERSION
First Person Shooter Game Accessory
Advertisement
Summary of Contents for 3001AD TRIMERSION
- Page 1 BASE STATION works with a PC or Mac USB, Playstation, Xbox and Game Cube game controller connectors BASE STATION has video through (IN/OUT) for connecting a TV while TRIMERSION is in use GUN CONTROLLER and HMD run on (4) AA Batteries...
- Page 2 Trimersion base station to the controller port then turn on the gun. Do not plug in the USB connector into anything but a computer USB port. Even though game consoles have USB connectors on them;...
- Page 3 The Mouse Look function of the FPS game should function with the movement of the HMD the same way it does by using a mouse. The TRIMERSION will not interrupt the mouse or keyboard functionality but will work in combination with it.
- Page 4 Plug the appropriate GAME CONTROLLER connector from BASE STATION into the GAME CONTROLLER port on the game console system. Power to the BASE STATION comes from GAME CONTROLLER port on the game console system. The GUN CONTROLLER has all the same buttons as the game console gamepad controller. Sit the HMD on a level surface and turn the POWER SWITCH on the GUN CONTROLLER to “ON”.
-
Page 5: How To Play
The Mouse Look function of the FPS game should function with the movement of the HMD the same way it does by using a joystick. To verify the HMD is communicating properly with the BASE STATION the LINK light on the BASE STATION will be a solid green. -
Page 6: Adjustment Controls
This is useful for troubleshooting the device or using the HMD as a video viewer only. Video Channel Selector: The Trimersion is capable of using 1 of 4 different video channel frequencies. If you are running multiple TRIMERSIONS with in range of each other, you can set each unit on a different frequency. -
Page 7: Troubleshooting
This is also useful in changing the operation of the gun for right or left-handed people. GUN CONTROLLER KEY MAPPING: TROUBLESHOOTING: If you are getting static lines in the HMD LCDs and a pulsing sound in the headphones, make sure you turn off any radio interference or wireless communications sources near the Trimersion visor. - Page 8 Known interference can be caused by Wi-fi enabled laptops and network hubs and some cell phones and PDAs. One solution may be to change to an alternate RF frequency using the VIDEO CHANNEL SELECTOR instructions. If the LCD display in the HMD has no picture but you still have audio, it normally is an indication that the batteries are low.
- Page 9 CE Safety Statements This device has bee tested and found to comply with the requirements set up in the council directive on the approximation of the law of member states relating to EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC and R&TTE Directive 99/5/EC Warning Core These cores are EMI components, do not remove...
