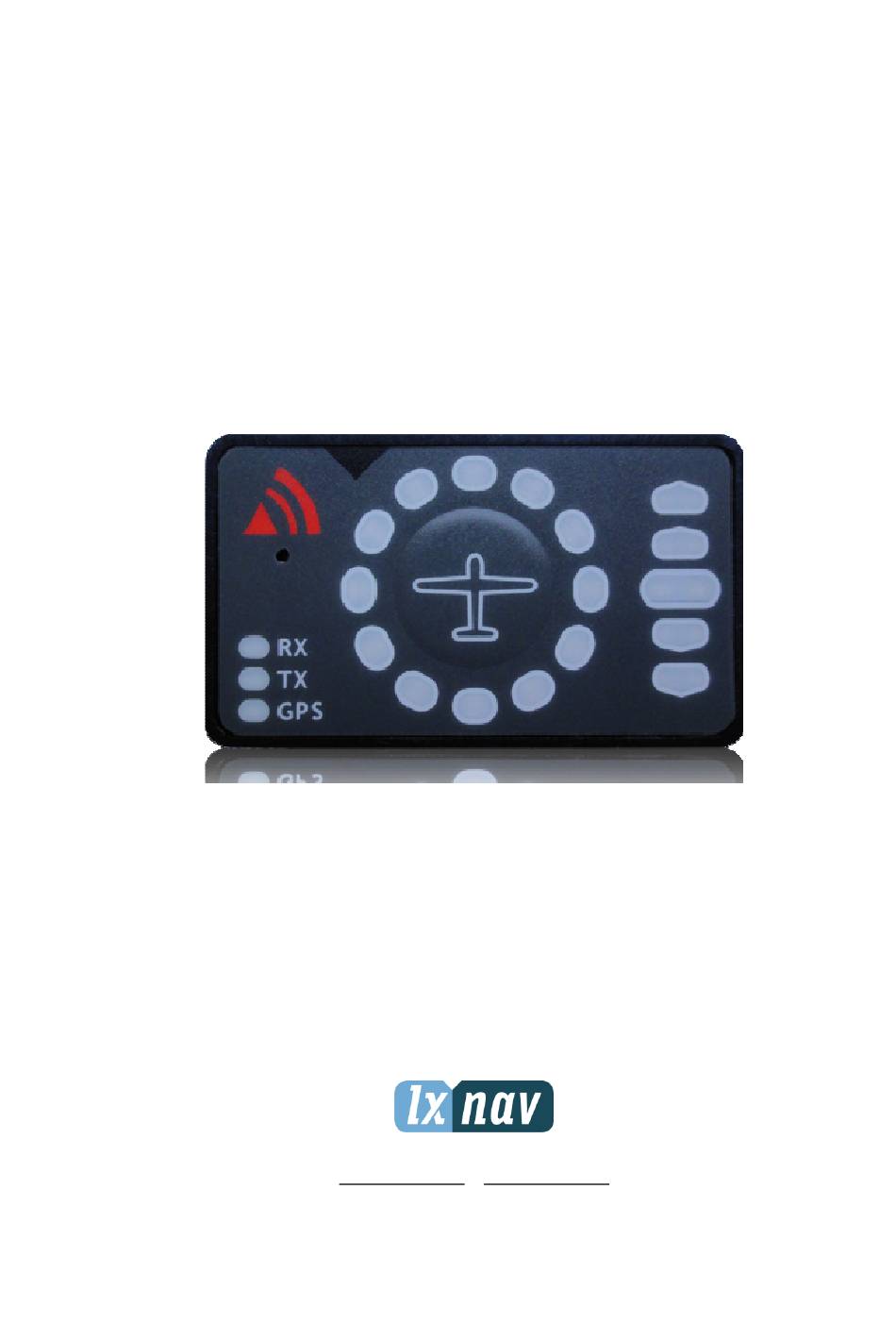

- Page 1 Flarm LED indicator Version 1.1 LXNAV d.o.o. • Kidričeva 24a, 3000 Celje, Slovenia • tel +386 592 33 400 fax +386 599 33 522 info@lxnav.com • www.lxnav.com...
-
Page 2: Table Of Contents
FlarmLed display Version 1.0 October 2013 Important Notices Limited Warranty Packing Lists Basics LXNAV FlarmLed display at a Glance 3.1.1 LXNAV FlarmLed display features 3.1.2 Interfaces 3.1.3 Technical Data System Description Description of Flarm Led Display 4.1.1 Status LEDs 4.1.2 Horizontal direction LEDs 4.1.3... -
Page 3: Important Notices
LXNAV retains the exclusive right to repair or replace the unit or software, or to offer a full refund of the purchase price, at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. -
Page 4: Packing Lists
FlarmLed display Version 1.0 October 2013 Packing Lists FlarmLed display • cable • Page 4 of 15... -
Page 5: Basics

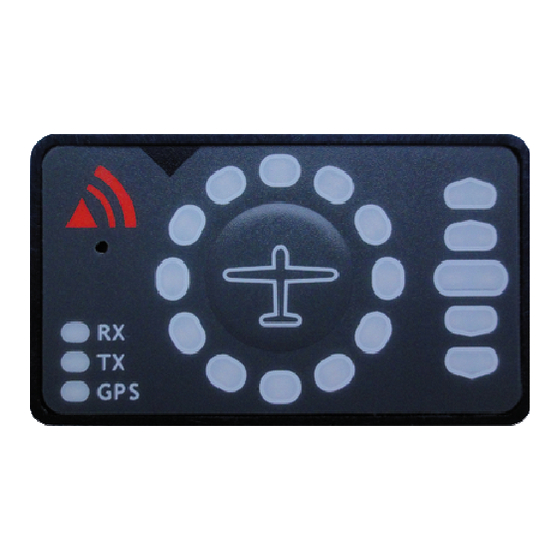

FlarmLed display Version 1.0 October 2013 Basics 3.1 LXNAV FlarmLed display at a Glance ® FlarmLed display Flarm compatible device, able to indicate horizontal and vertical direction of a threat. Nearby traffic is displayed visually and acoustically. It’s extremely small size, low power consumption, and has very bright bicolor LED’s. -
Page 6: System Description
FlarmLed display Version 1.0 October 2013 System Description 4.1 Description of Flarm Led Display Flarm led consist of 5 main parts: Status LEDs • Horizontal direction LEDs • Vertical direction LEDs • Push button • Beeper • 4.1.1 Status LEDs Status LEDs indicates if flarm receiver receives any data, transmits data and GPS status. -
Page 7: Normal Operation
FlarmLed display Version 1.0 October 2013 4.2 Normal operation In normal operation with short press, we can cycle between three different volumes (Low, Medium and High). With long press, is enabled or disabled near mode. Switching of mode is also visually supported with moving light around circle. Red moving light means, that near mode is enabled, yellow moving light means, that near mode is disabled. -
Page 8: Powering Up Flarmled Display
(yellow led indicated major version, red indicates minor version). 4.4 Setting up FlarmLed display If we hold push button, during power on, LXNAV FlarmLed will go in setup mode, where is possible to adjust following settings: Communication speed •... -
Page 9: Copying The Obstacle Database From Sd-Card
FlarmLed display Version 1.0 October 2013 4.5.3 Copying the obstacle database from SD-card 4.5.4 Error codes from flarm Error Description Functionality Display code 0x11 Fault: Software No operation out of date (needs reception) 0x12 Fault: Software No operation integrity violation (only on IGC- units) 0x21... - Page 10 FlarmLed display Version 1.0 October 2013 0x41 Fault: Internal No operation radio communication 0x51 Fault: General No operation internal communication 0x61 Fault: Flash No operation memory 0x71 Fault: Pressure No operation sensor 0xF1 Fault: Other fault No operation 0x81 Indication: No Operation obstacle data possible...
- Page 11 FlarmLed display Version 1.0 October 2013 0xA1 Indication: Error Operation with SD-card possible configuration file 0x2a Indication: Operation Transponder possible receiver mode C/S/ADS-B unserviceable. Indication: Operation Obstacle possible database out of date (alarms are still generated). Indication: Invalid Operation obstacle database possible licence.
- Page 12 FlarmLed display Version 1.0 October 2013 Indication: Invalid Operation TIS feature possible licence. Indication: Operation Generic error. possible Indication: Flash Operation File System error. possible Indication: Failure Operation updating possible firmware of external display (e.g.,Butterfly). Indication: Device is operated outside designated region.
-
Page 13: Wiring
FlarmLed display Version 1.0 October 2013 4.6 Wiring 4.6.1 FlarmLed pinout Pin number Description N.C. (output) Transmit from LXNAV FLARM LED RS232 Level (input) Receive to LXNAV FLARM LED RS232 Level Ground 3.3V power supply (input) N.C. 4.6.2 FlarmMouse - FlarmLED V7 Flarm... -
Page 14: Cutout
FlarmLed display Version 1.0 October 2013 4.7 Cutout Front view Page 14 of 15... -
Page 15: Revision History
FlarmLed display Version 1.0 October 2013 Revision History May 2013 Initial release of owner manual October 2013 Added chapters 4.2 and 4. March 2014 Modified chapter 4.4 May 2014 Added error codes Page 15 of 15...
