Summary of Contents for Kytola VD

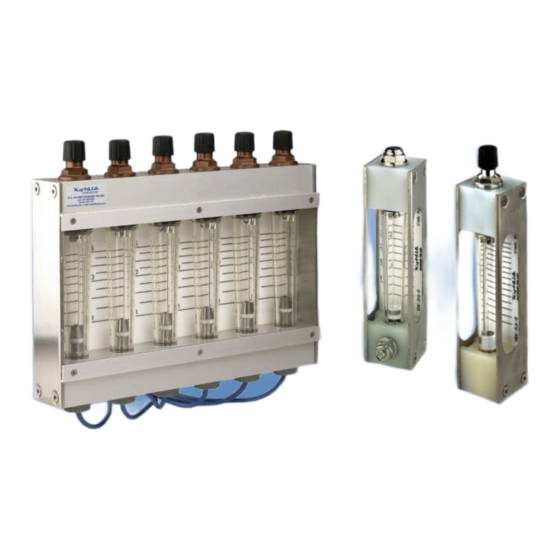

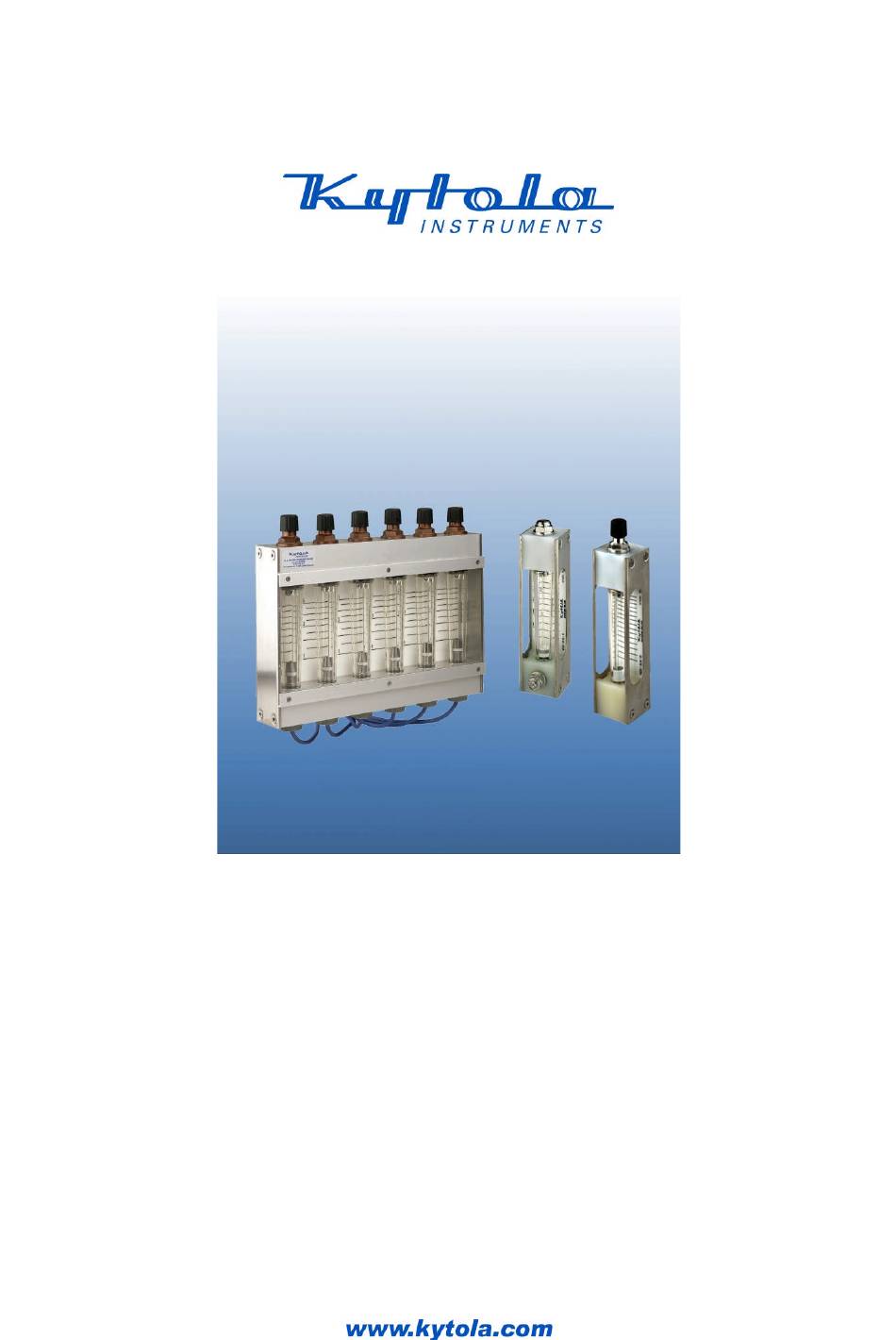

- Page 1 VE and VD Variable area flow meters Instructions for use and service V1.0...
- Page 2 Copyright © Kytola Instruments 2011. All rights reserved. Legal notice Subject to change. Kytola Instruments (Instrumenttitehdas Kytölä Oy, Kytölä Instrument AB, Kytölä Mess- und Regeltechnik GmbH, Kytola Instruments Inc, Kytola Instruments Ltd) does not take any responsibility for errors in this document or for any direct or indirect damage caused by using this instruction material.
- Page 3 About this document This manual includes instructions for the installation, operation and maintenance of Kytola variable area flow meter models VD and VE. This manual is published in print and as a pdf file. If you use the pdf file, you benefit from its features: cross-references as well as the contents and pages list.
- Page 4 The flow meter may be disassembled without removing it from the piping. 3 Unscrew the dummy valve (model VD) or the flow meter valve (model VE) with a wrench and lift it up. In case the meter model has a guide rod, the float and the guide rod are attached to these valves, so they are lifted as well.
- Page 5 5 Place the float and the guide rod attached to the valve into the flow tube. Screw the dummy valve (model VD) or the valve (model VE) into its place. Do this slowly not to damage the O-rings or to force them out of their sealing grooves.
-
Page 6: Contact Information
Contact information Headquarters, Finland Sales office, Sweden Sales office, Germany Kytola Oy Kytola Instrument AB Kytola Mess- und Regeltechnik GmbH P.O.Box 5 Svalgången 1 Frankfurter Landstrasse 52 FI-40951 Muurame S-72481 Västerås D-63452 Hanau Finland Sweden Germany Tel. +358 20 779 0690 Tel.
