Summary of Contents for KAT VR KAT Walk mini

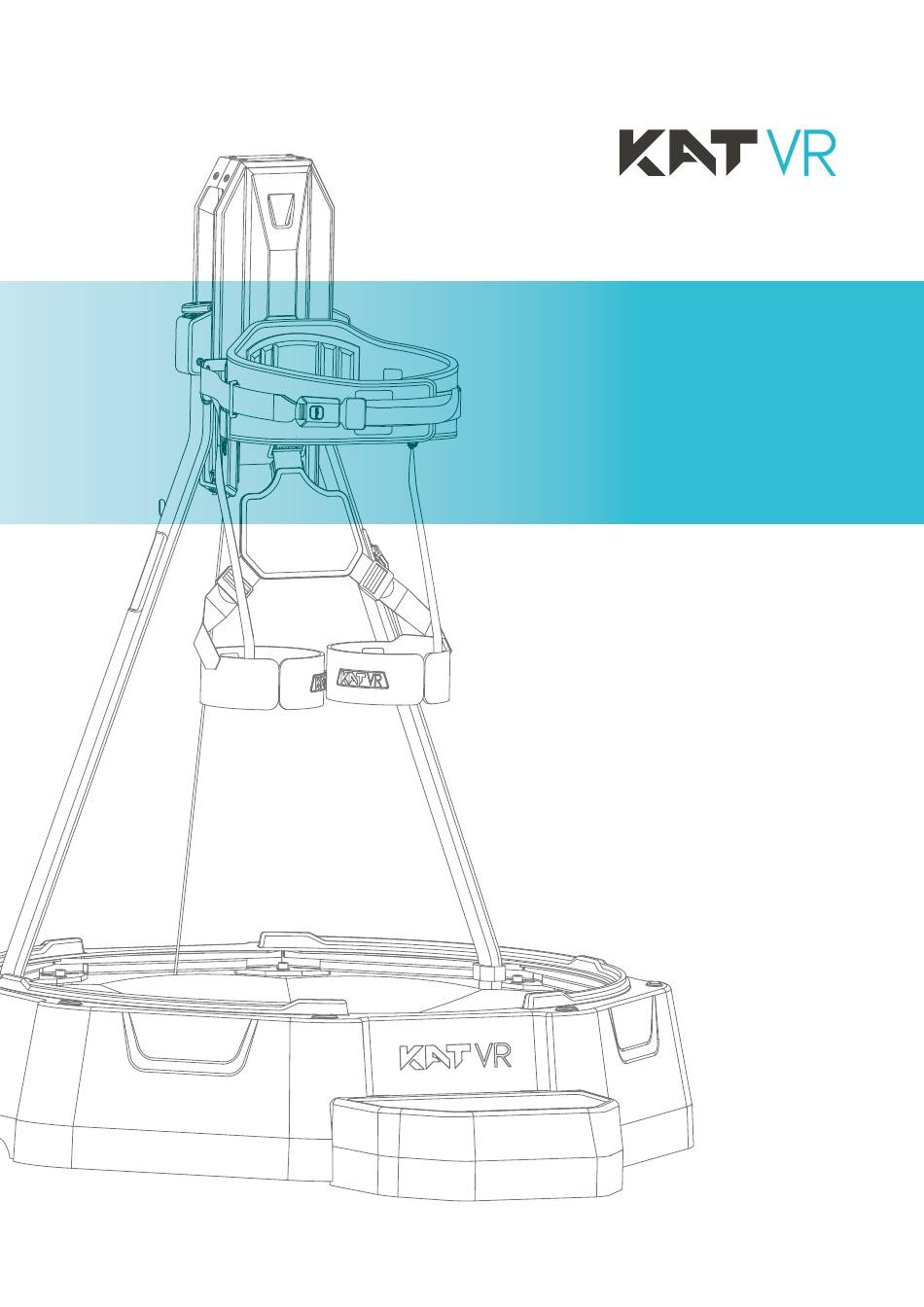

- Page 1 KAT Walk mini OWNER'S MANUAL The product may vary slightly from the picture.
- Page 2 Thank you for purchasing the KAT Walk mini.
- Page 3 First & Foremost This owner's manual contains all the information you need to install the KAT Walk mini. The following symbols are used to indicate crucial information and instructions for the set-up process: This symbol is a precaution: It usually provides additional information to help with a task, as well as information that applies only to certain situations.
-
Page 4: Table Of Contents
Product Installation and Assembly Assembly of the Base Assembly of the Back Support Connecting of Wires First Use Instructions Sensor Instructions Sensor Initialization Tips for Room Settings of the VR Headset Sensor Calibration Kat Walk mini First Use Stepping On... - Page 5 Height Adjustment Waist Strap Wearing Walking Tutorial Accessories Set-up Stepping Off Software Adapter Instructions System Requirements Software Adapter Instructions Introduction to KAT I/O Software Software Acquisition Process Disassembly and Maintenance Disassembly Procedure Product Maintenance Accessories Optional Accessories List Contact Information...
-
Page 6: Declaration
Declaration It is the trademark of Hangzhou Virtual and Reality Technology Co., Ltd. All trademarks, product identification and trade names of other companies appearing in this manual are owned by their respective owners. No parts or content of this manual may be copied or reproduced without the written permission of the company, and may not be shared in any form or used for any commercial or profitable purpose. -
Page 7: Safety Instructions
This device is intended for use by healthy people aged 14 to 60 years, of 1.40m (4'7'') to 1.95m (6'5'') height, and weighing no more than 130kg (285lb). Do not use the KAT Walk mini if you do not meet the age, height, or weight requirements, or if your physical condition is not capable of moderate to intense physical activity. - Page 8 If the voltages of the two do not match, do not connect the device to the power socket. If you violate the above safety instructions or carry out other violations, it may cause personal injury or adverse consequences, and KAT VR will not be responsible.
-
Page 9: Health Warnings
Health Warnings The following health warnings are updated regularly to ensure accuracy and relevance: Before use, you need to read the product manual carefully and follow given instructions. We do not recommend prolonged use due to possible physical discomforts afterwards. Symptoms of discomfort may be nausea, dizziness, or headaches. -
Page 10: Product Description
KAT Walk mini Special Shoe Covers Description The shoe covers are specifically designed for the KAT Walk mini and to be solely used for this purpose. They use constant friction to simulate the curve and displacement of the foot when you walk. -
Page 11: Product Parameters
Product Parameters Suitable age 14-60 years Suitable weight 130kg and below Suitable height 1.4m-1.95m Product weight 99kg Base plate height 280mm Step height 155mm Range of Motion 270mm Product size 1535mm*1260mm*1500mm Base plate diameter 940mm Floor space 1.47㎡ Product voltage 100V - 240V... -
Page 12: Precautions
Precautions Tool preparation before unboxing Before unboxing the KAT Walk mini, please prepare a pair of scissors, a screwdriver and a claw hammer, wear protective gloves as well as the appropriate footwear for such handiwork, slippers or high-heeled shoes are unsuitable. -
Page 13: Unboxing Procedure
Unboxing Procedure （Please unbox it based on how the crate is packaged. ） Lay the crate flat on the Use a claw hammer to Use a pair of scissors to cut ground. pry open the clasp. off the strings and a screwdriver to unscrew 6 screws shown in the picture. -
Page 14: Tool Preparation
17*19mm, 20mm, 1 piece of each Tools Phillips screwdriver 4 inches Level 18mm*9mm KAT Walk mini installation manual LED lights adapter According to the demand of customers, a pair of KAT special shoe covers in Special shoe covers either M(34-37), L(38-41), XL(42-45),... -
Page 15: Assembly Of The Base
Product Installation and Assembly Assembly of the Base power outlet 85KG 60CM Remove the base frame Proceeds to lift up the base The side with sticker “1” marked with a sticker “5” , which weighs approximately should face forward, as and set it aside for assembly. -
Page 16: Assembly Of The Back Support
Assembly of the Back Support The surface of joint may leave some scratches when assembling due to the necessary test at the factory, but it won't affect your use of KAT Walk mini. Take out the large hex Take out a supporting rod... - Page 17 Unscrew the eight screws Insert the bolts of the back Tighten the screws on each from the top of the support to the square holes side to the vertical tube at supporting rods and store at the top of supporting the top of the supporting them for the future use.
- Page 18 Unscrew the four screws Find the switch of the Tighten the four screws fastened on the plate of the rotation lock at the base and removed earlier. rotation lock and store put it together with the plate them for the future use. on the supporting rod.
-
Page 19: Connecting Of Wires
Connecting of Wires The device has four cables Remove all the stickers and in its back: A 3 prong complete the installation. power cable (A) and a LED strip power cable (B) that connects to a 3 prong adapter cable; its switch control cable (C) to be placed properly;... -
Page 20: Sensor Instructions
Please note that since the base frame adds height to ground level, set the ground level while on the KAT Walk mini to 0cm as you would normally but your height settings should be 18.6cm less to compensate for the elevation. -
Page 21: Sensor Calibration
Sensor Calibration If any of the situations below occurred before using the KAT Walk mini, the orientation of the sensor should be calibrated in order to correctly map your physical actions into the VR game or simulation. Just installed or moved the KAT Walk mini. -
Page 22: Kat Walk Mini First Use
KAT Walk mini First Use Stepping On Unlock the Rotation lock on Rotate the supporting rods Lock the Rotation lock to the supporting rod. to the position shown above. fasten the supporting rods. Fit your heel into the special Put on the special shoe Step onto the safety step. -
Page 23: Height Adjustment
Height Adjustment Height range 1.85-1.95m 1.75-1.84m 1.60-1.74m 1.50-1.59m 1.40-1.49m Before adjusting the height, (the height range shown above is for illustration purposes make sure the waist strap is set only， and your comfort will be the ultimate reference.) at the highest position. Lift the back of the waist strap, This is the possible For lowering, Slightly lift up... -
Page 24: Waist Strap Wearing
Waist Strap Wearing This procedure is crucial because if the waist strap is not properly worn, you may not have a good experience in walking. Lean closely against the inner side of the waist strap and pull both sides of the strap, closing the ring around the thinnest part of your waist (make sure both sides connect above your crotch). - Page 25 Reconfirm the waist strap and adjustable belt to be tight enough so that there is no space left between your waist and the waist strap. As to the leg straps, tighten the velcro around your thigh, ensuring there is no space left. When you don’...
-
Page 26: Walking Tutorial
Walking Tutorial Once strapped yourself in Try to sit down. Try to crouch. （If you securely, try to step forward. encounter jamming of the back-support device when trying to squat, please reduce the depth of squat or adjust your squatting position vertically to solve the problem.）... -
Page 27: Accessories Set-Up
Accessories Set-up Hang your VR headset and controller on the hooks behind the back support for easy access while on the device. Unlock the Rotation lock. Game on. -
Page 28: Stepping Off
Stepping Off Rotate the supporting rods Lock the rotation lock to After removing your VR to the position shown fasten the supporting headset and controllers, above. rods. you can hang them safely behind by the hook. Undo the leg straps. Unfasten the buckle on the With one hand holding waist strap. -
Page 29: System Requirements
KAT I/O is a product management assistance tool developed by KAT VR for the individual users. With KAT I/O, you can instantly control the status of your KAT Walk mini’ s functions and features without leaving the virtual world, not to mention the inclusive library of KAT Walk mini supported games. -
Page 30: Disassembly Procedure
Disassembly and Maintenance Disassembly Procedure If you need to move the KAT Walk mini, strictly follow the product’ s assembly instructions in the reverse order. Disassemble with caution to keep the main components intact. After dismantling the device, gently place it in its original box and use similar material to pack- age it. -
Page 31: Optional Accessories List
Accessories For a better experience, we also offer a variety of accessories that you can choose to match. Hotline： 400-826-0804 Sales Email： sales@katvr.com Optional Accessories List Quantity Name Appearance Note HTC VIVE set Besides the left hand side headsets, you have options of HTC VIVE Pro, PSVR Set Oculus Rift set (including accessories: 1 HDMI... - Page 32 Optional Accessories List Quantity Name Appearance Note Base stand 2 packages (with holders) KAT PiSystem 2 packages Adapter Standard、 Premium and Control center Deluxe Edition (including ground wires) （Deluxe Control Center as the example） Marked on the package (3m) USB 3.0 extension cables USB 3.0 extension cables Oculus Rift...
-
Page 33: Contact Information
Contact Information Company： Hangzhou Virtual and Reality Technology Co., Ltd Add： Room 901, Building 6, No 1818-2, West WenYi Road, Yuhang Street , Yuhang District, Hangzhou, Zhejiang Province, China. Postal code： 311100 Tel： 400-826-0804 E-mail： info@katvr.com Web： http://www.katvr.com/...
