Labelmate CAT-3 User Manual

Heavy-duty "cat" label rewinder
Hide thumbs Also See for CAT-3:

Advertisement

Quick Links

MAINTENANCE:
requires no maintenance.
Your CAT-3
Product Limited Warranty
All Labelmate Products are warranted to the original end-user customer to be free from defects in
materials and workmanship. If it is determined by Labelmate that a product has failed under the terms of
this warranty, the product will be repaired or replaced at no charge to the customer. Labelmate reserves all
rights to determination of coverage and liability under this warranty. The warranty period for all new
Labelmate products is outlined below:
Warranty Period
5 years
3 years
1 year
The warranty period for all products starts on the date purchased by the original end-user customer.
Warranty coverage is not transferable with ownership and will terminate immediately upon rental, resale or
any other change in ownership. This warranty does not cover repair to any product which is damaged, has
been modified, is missing parts, or has been opened or repaired by any unauthorised person. Use of any
unauthorised accessory or attachment will void coverage. Purchase documentation should be retained for
coverage verification.
In the event your product requires service, please contact the distributor you bought the product from. The
customer assumes responsibility for all cost and risk incurred in transport for service.
Labelmate makes no other warranty of any kind expressed or implied, or to suitability or fitness for a
particular purpose. No other person, agent or reseller is authorised to give any warranties on behalf of
Labelmate. Any obligation to warranty other than that specifically addressed above is hereby disclaimed.
LABELMATE
290, Chaussée de Ruisbroek, 1620 Drogenbos, BELGIUM
TEL: +32 2.375.69.60 – FAX: +32 2.375.38.96
brussels@labelmate.com
www.labelmateeurope.com
© LABELMATE – User_CAT-3-CE – 05/17 – Original user manual.
Products Covered
Label Rewinders
Label Unwinders
Label Counters (mechanical parts
only)
Label Slitters (mechanical parts
only)
Label Dispensers
Printer Mechanisms
Power Supply Modules
Counter modules
Encoders
Any products not specified above.
SPRL
CAT-3 / CAT-3-TA
Heavy-Duty "CAT" Label Rewinder
Dual Torque Range and
Direction Controls
Constant Adjustable
TM
Torque
"CAT" technology
Adjustable Speed Control
up to 125cm per second
Precise Variable Torque
Control
On-demand Rewinding
Turns Off when Labels
Stop Coming from Your
Printer (TA only)
Remove all parts from the shipping container and verify contents.
PACKAGE CONTENTS:
User Manual (this document)
CAT-3 Drive Unit
Power Supply Module
LABELMATE "Quick-Chuck" ™ Quick-Locking Core Chuck
or Standard Shaft with three (3) metal Vanes installed,
or Model-10-INCHES Shaft with six (6) metal Vanes installed,
or Model –ACH: Adjustable Core Holder
CAT-3-TA only: Tension Arm with setscrew and Shaft Screw
Two 300mm Plastic Flange Plates (One only for QC, none for ACH)
Retain the Shipping Container and Packaging for Storage and Transport
SPECIFICATIONS:
Weight of the machine: 9,6Kg to 11,1Kg depending on model.
Max. Label Roll Weight: STD: 8Kg – ACH: 7Kg – QC: 8Kg – 10-IN: 10Kg.
Max. Label Roll Diam:
300mm (280mm for ACH).
Start/Stop:
ON/OFF Power Switch
Input: 230VAC – 50Hz.
Power Supply:
Output: 15VDC – 4.33A
.
● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●

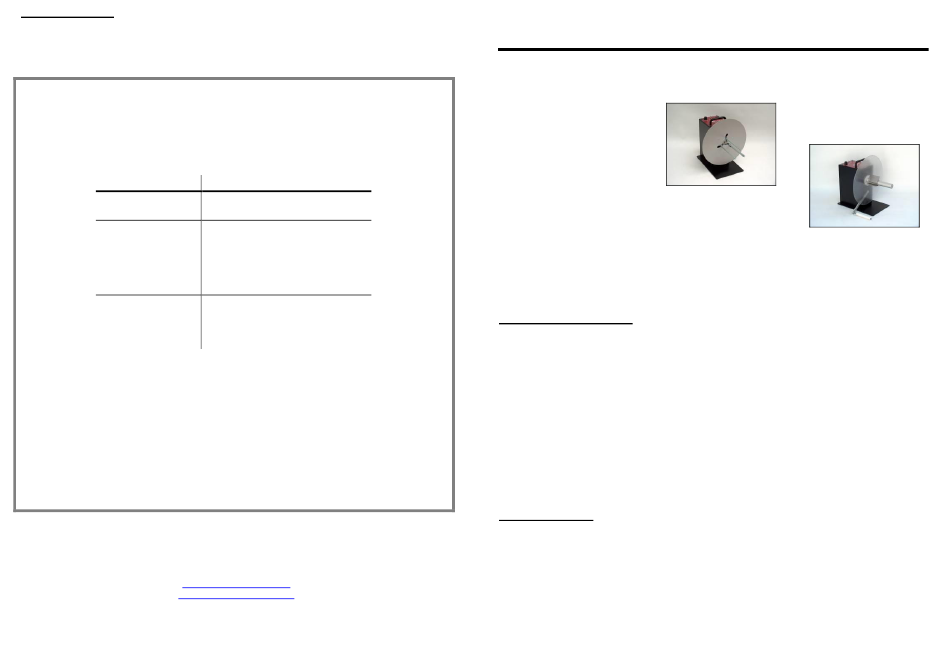

CAT-3-ACH
CAT-3-TA-STANDARD
