Summary of Contents for TECO ECO 3kW Grid-Tie HAWT

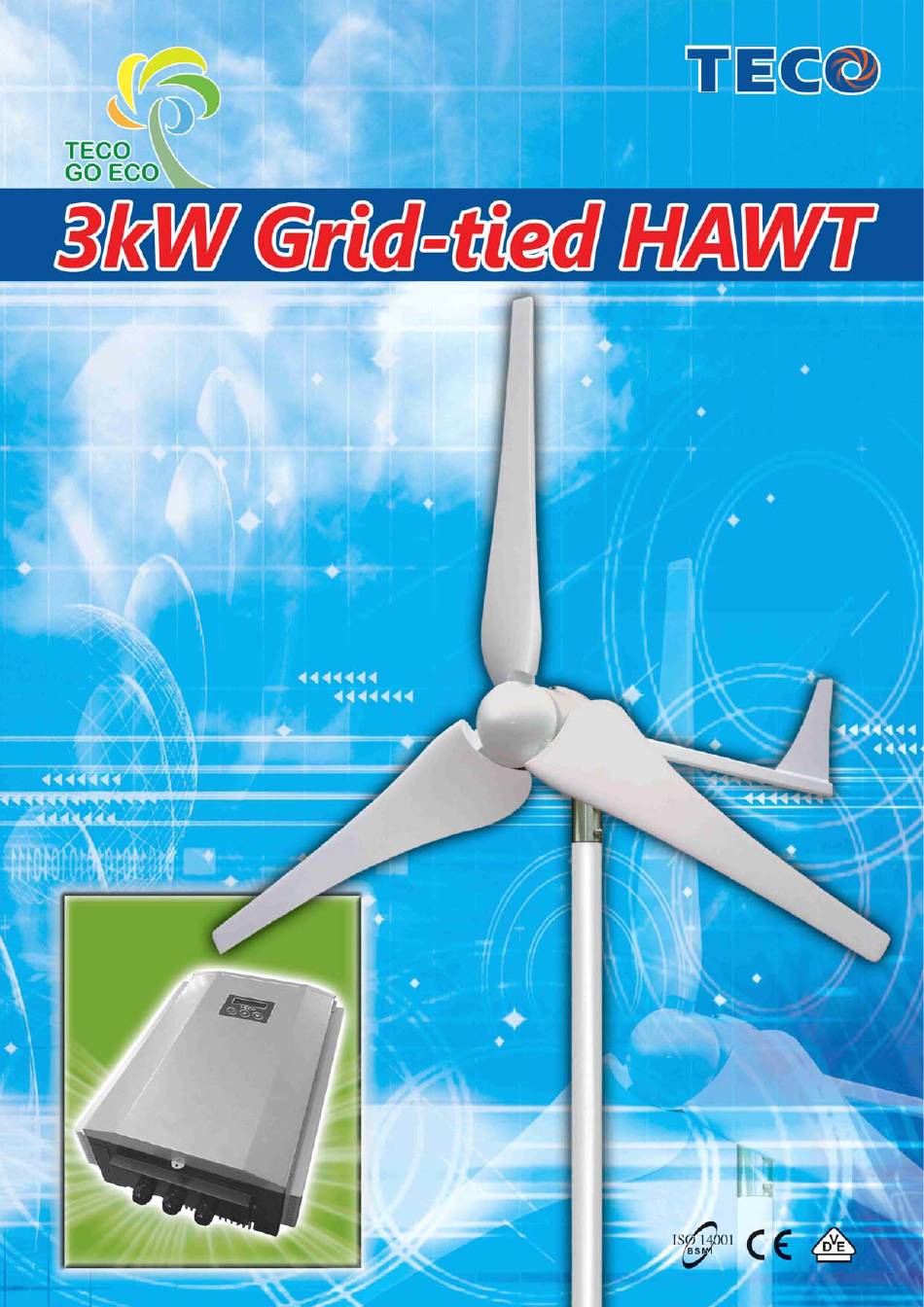

  • Page 1 User M User Manual Table of Contents...

  • Page 2: Table Of Contents

    Table of Contents Safety of life ......................Safety of installation ....................Safety of machinery ....................Chapter 1 Wind Power System ................Wind Turbine Specifications .................... Wind Turbine Description ....................Grid-tied Wind Power Inverter Specifications ..............Grid-tied Wind Power Inverter Description ..............Wind Power System Operation ..................

  • Page 3: Safety Of Life

    Please read this manual carefully and follow its instructions and recommendations, this manual will assist you to operate a renewable energy system safely and pleasantly. Safety of life 01. Never touch any switch with wet hands. 02. Always check and make sure there are no obstacles or people near the machine’s movable parts before operating the machine.

  • Page 4: Safety Of Installation

    Safety of installation 01. Leave space for maintenance. Install the machine so that the covers of the machine can be opened without interference. 02. Make sure that the ground strong enough to support the machine. 03. Only an authorized electrical technician should perform work with the power cable connections. 04.
  • Page 5 06. Do not open the door of the electrical cabinet or the operation panel unless absolutely necessary. Opening the door allows dust, foreign matter, and moisture to enter the enclosure and can cause machine malfunctions. 07. Carry out daily, monthly, and semi-annual inspection as specified in this operation manual. 08.

  • Page 6: Chapter 1 Wind Power System

    Chapter 1 Wind Power System This system is the latest small wind power system designed to provide electricity which can be used on several different type applications, such as batteries charging, or stand alone remote electrical power supply system. Furthermore, with the additional Grid-tied Wind Power Inverter, the wind power system can also be connected to the power grid.
  • Page 7 Central Body Assembly Tail Fin Tail Boom Spinner Nacelle Generator Casing Tower Mount Adapter Blade Figure 1 Wind turbine assembly Blades Generator Nacelle and Tail Assembly Complete Assembly Figure 2 Wind turbine major Components...

  • Page 8: Wind Turbine Description

    1-2 Wind Turbine Description The major components of the wind turbine are shown as Figure 2. A. Blades / Rotor System The rotor system consists of three glass/carbon fiber blades. The glass/carbon fiber blades are structurally strong because there are extra glass/carbon reinforcing fibers layers that hold the full length of the blade.

  • Page 9: Grid-Tied Wind Power Inverter Specifications

    1-3 Grid-tied Wind Power Inverter Specifications • DSP based fully digital control • Converter ability：3.0kW/220VAC，50/60Hz • High efficiency: 95% above. • Maximum Power Point Tracking function • Anti-Islanding • LCD displays generation data & status • High power conversion efficiency •...

  • Page 10: Grid-Tied Wind Power Inverter Description

    1-4 Grid-tied Wind Power Inverter Description This product is a wind energy utility grid-tied system. Single-phase grid-tied wind power inverter is different from traditional stand- alone type wind energy inverter; it does not need additional expensive and large space required energy storage battery, hence free from considerable battery maintenance expense.
  • Page 11 B. High-Wind Protection (Furl Protection) In case of high wind speeds, the High-Wind Protection Function system will protect the wind turbine automatically. When furled, the rotor will turn away from the wind direction, the rotor speed will reduce, and the power output of the turbine will be significantly reduced. High-Wind Protection Function is an easy method to provide high wind speed protection.

  • Page 12: Chapter 2 Installation Of Wind Power System

    Chapter 2 Installation of Wind Power System ※ Caution To avoid danger, construction work and wiring must be done by professional personnel. The construction and wiring process must be in accordance with electrical engineering regulations. Please read this manual carefully and follow its instructions and recommendations. 2-1 Installation of Wind Turbine ※...
  • Page 13 ※ Wind Turbine Assemble Procedure: (1) Fasten the three blades into the circular hub using two 12mm-diameter, 63mm-long bolts(6) for each blade. To refer Figure 4, firstly put one spring washer(9) through the bolt, follow by one flat washer(8), insert them through the blade, stainless steel plate(14) and hub, put another spring washer(9) through the protruding part of the bolt, apply Loctite to the thread, and fasten with a nut(7).
  • Page 14 Figure 5 Assembly of tail and tail plug Figure 6 Assembly of wind turbine and supporting pole (4) Hoist the wind turbine and supporting pole into position, fasten the pre-installed foundation bolts with nuts and apply Loctite to the thread to complete the installation.
  • Page 15 ※Support Tower Suggestion： 6-meter guyed tower 9-meter guyed tower Wind turbine 1.2 m 1.2 m 3” Steel Pipe 34mm Steel pipe 1.8 m 73mm 12.8mm 3” Steel 4.8 m Pipe 3 ~4.8m 3.5” Steel Pipe Steel Cable: Min. Dia.: 6mm 4.5~7.8m 3 inch Steel Tube: Outer Dia.: 89.5mm...

  • Page 16: Installation Of Grid-Tied Wind Power Inverter

    2-2 Installation of Grid-tied Wind Power Inverter ※Installation Procedure of Inverter： Conditions Do not operate the Inverter in an environment where the ambient temperature is outside the limits given in the specifications of this manual. These inverter units are in-tended for use in a temperature-controlled, indoor area free of conductive contaminants.
  • Page 17 STEP 1：Heat dissipation STEP 2：Fix the metal strap Keep a minimum distance of 8-12 inch clear Fixed six screws around the inverter STEP 3：Hang up STEP 4：Check it firm Wall Wall...
  • Page 18 Fixed position Fixed position Fixed position [mm] Figure 7 Metal strap of Inverter ※ AWG to Metric Wire Size Conversion Chart AWG gauge Diameter (mm) AWG gauge Diameter (mm) 0000 (4/0) 11.68 mm 5.19 mm 000 (3/0) 10.40 mm 4.11 mm 00 (2/0) 9.27 mm 3.26 mm...
  • Page 19 ※ Wind Power System Wiring Description Power Wire Size Selection Please connect electrical wire according to each contact marked with description. Regulated wire size follows：(Detailed wiring diagram as Figure 8,Figure 9) AC output wire use a size at least 12AWG(or 3.5 mm ) black copper wire.
  • Page 20 Figure 8 wiring diagram of brake control cabinet...
  • Page 21 Component List of Brake Control Cabinet Label Description Specification Qty. 1 BOX Electrical brake control cabinet 470mm x 320mm 2 NFB1 No fuse breaker 20A/2P/300VAC 3 NFB2,NFB3 No fuse breaker 50A/3P/600VAC 35A(above)/220VAC(main contact) 4 RY1~RY6 Electromagnetic Brake main relay drive voltage 220V 5A(above)/220VAC(main contact) 5 RY7,RY8 Electromagnetic Brake aux.
  • Page 22 respectively. (10) Caution！When resistor brake occurs, it will cause heat. Installation location must be in a ventilated place. (11) Suggest L, N go through 1:1 isolation transformer to utility 220V/(50Hz or 60Hz). ※ Recommended specifications (1) Automatic short circuit brake switch：Consists of three relays, each relay stands 30A and above, coil start voltage 220V.
  • Page 23 Figure 9 Brake Control Cabinet Placement...
  • Page 24 ※ Wiring Description of Inverter Loose six screws under the Inverter (as the red circle), after open it, there are two terminal block and node label. L and N are connected to utility AC power. R,S,T are connected to Wind turbine AC output. PE is grounding wire.
  • Page 25 The brown and blue wires gone through left spiral exclusive socket, connected tightly to L, N terminal respectively. The green wires gone through medium spiral exclusive socket, connected tightly to PE terminal. The red, white and black wires gone through right spiral exclusive socket, connected tightly to R, S and T terminal.

  • Page 26: Chapter 3 Wind Power System Operation

    Chapter 3 Wind Power System Operation 3-1 Start Test (1) Ensure input voltage is within rated range by measuring NFB1 with power meter. (2) Turn on NFB1 of Brake control cabinet, ensure utility voltage and frequency is within normal range. (3) Confirm the manual brake switch (NFB2, NFB3) turned to OFF.
  • Page 27 Shift-up key Shift-up key[UP] indicates cyclical moving upwards, display respectively： [UP] Input power (Pi) Input voltage/current (Vw/Iw) Output power (Po) Output voltage/current (Vs/Is) Shift-down key Shift-down key[DOWN] indicates cyclical moving downwards, display [DOWN] respectively： Input power (Pi) Output voltage/current (Vs/Is) Output power (Po) Input voltage/current (Vw/Iw) LCD Display List...

  • Page 28: Chapter 4 Protection

    Chapter 4 Protection 4-1 Electromagnetic Brake Protection This wind turbine system has two kind of electromagnetic brake protection function：Resistor and Short-circuit Brake Protection. Using wind power inverter and brake control cabinet to perform this protection function. (1) Resistor Brake Protection： When wind speed exceeds 13.5m/s, system will start resistor brake protection function.

  • Page 29: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting This chapter description fault code of wind power inverter and inspection method. Code Display Message Cause Inspection Check the connection between UTILITY FAULT Utility power abnormal Inverter and utility. Check utility voltage status. Wind speed too high cause over Input Voltage is too high DC VOLTS FAULT voltage.
  • Page 30 Were electrical wires broken somewhere? Input device leakage current too Leakage Current Does the impedance too low high between inverter case and wind generator coil? Check the connection between Frequency over range UTILITY DET F Inverter and utility. Check utility frequency status.
  • Page 31 Distributor TECO Electric & Machinery Co., Ltd. 10F, NO.3-1, Yuan Cyu St., Nan-Kang District, Taipei 115, Taiwan TEL: 886-2-6615-9111 FAX: 886-2-6615-1033 MU-0901E.02 http://www.teco.com.tw The manual may be modified when necessary because of improvement of the product, modification, or changes in specifications. This manual is subject to change without notice.
