Page 1 SDV-8560Q User Manual Please read the User Manual carefully before use. Keep for future reference.
Page 2: Table Of Contents
Content Introduction....................2 Safety Instructions..................2 Important Functionality Precautions............4 Federal Communications Commission (FCC) Compliance....4 Declaration of Conformity................5 Highlighted Key Features................ 5 Camera Views................... 6 Accessories Views..................6 Getting Start....................7 Charging the Battery................7 Memory Card (microSD Card)..............8 Installing the Mounts................10 Reset......................
Page 3: Introduction
Introduction Congratulations on the purchase of your new Action Camera. This manual contains important safety and operating information. Please read all the information carefully before you use the device to avoid accidents and keep it for future reference. Follow these important safety and operation instructions.
Page 4 Individuals with certain disabilities. Close supervision is necessary when this device is used by, on, or near children or individuals with certain disabilities. 8. Never operate this device if it has dropped, damaged, or dropped into water without waterproof case proper installation, or if it is not working properly.
Page 5: Important Functionality Precautions
19. This product is not intended for commercial use.  20. Disconnect the appliance from power supply and switch off the  device before cleaning. Important Functionality Precautions In order to prevent program failure, never disconnect the camera from a PC while file transferring is in progress. Federal Communications Commission (FCC) Compliance This equipment has been tested and found to comply with the limits...
Page 6: Declaration Of Conformity
Declaration of Conformity This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. Highlighted Key Features 4K Ultra HD (3840*2160, 30fps) Sports and Action Video Camera.
Page 7: Camera Views

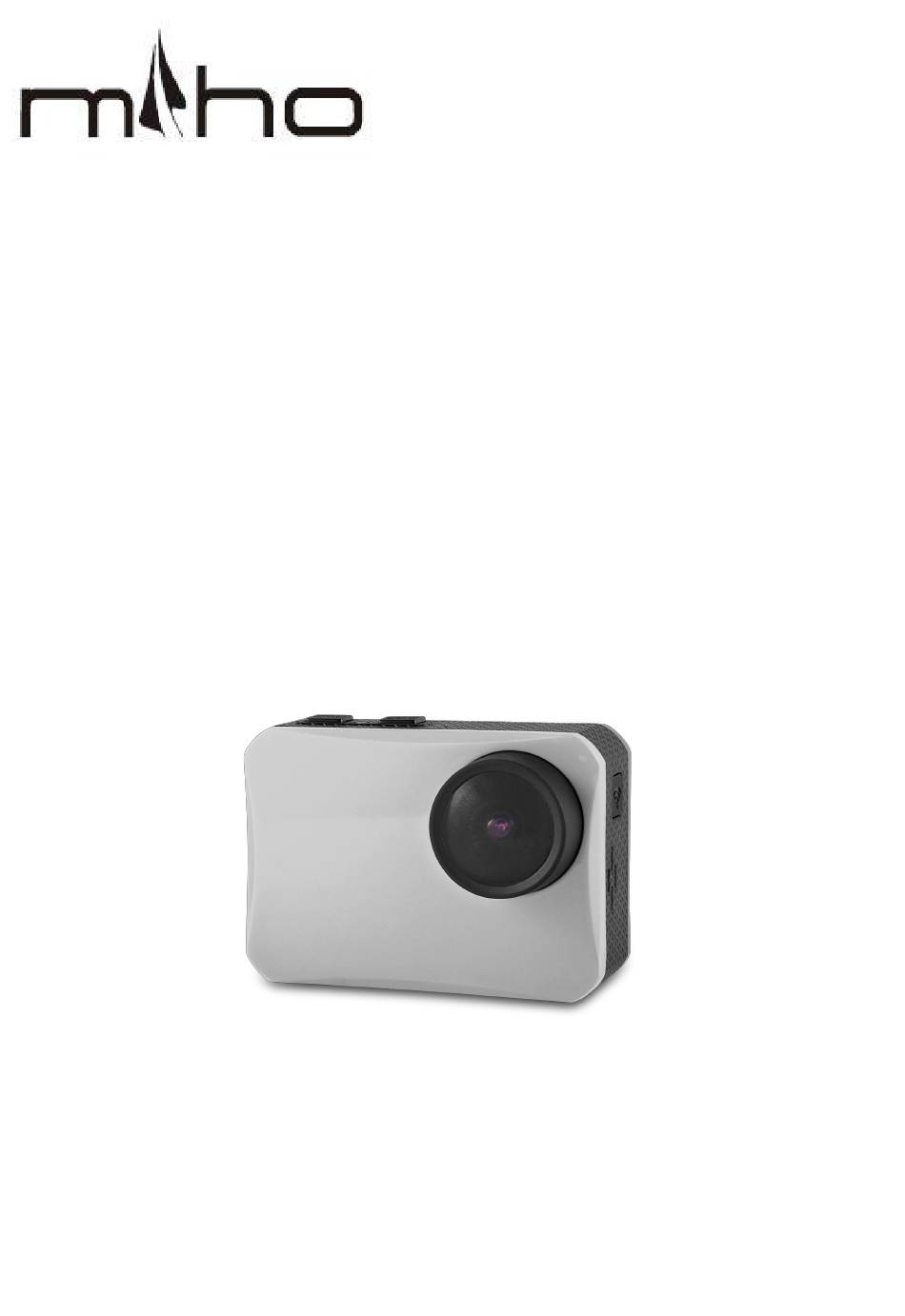

Camera Views 1. Power/Shutter/OK Button 2. Working/Charging Indicator 3. Mode Button 4. Microphone 5. Lens 6. Micro HDMI Out Jack 7. Reset Hole 8. USB Jack 9. MicroSD Card Slot 10. WiFi/Down Button 11. Speaker 12. LCD Screen 13.Tripod Slot Accessories Views Camera Waterproof Case...
Page 8: Getting Start
Getting Start Charging the Battery This Video Camera is operated by a lithium battery which is built-in inside the housing. Before first use this Video Camera or when the battery is in low power status, please correctly charge the battery as per below steps: 1.
Page 9: Memory Card (Microsd Card)
BE CAREFUL. NON-CERTIFIED CHARGERS OR CHARGERS DELIVER IMPROPERLY POWER OUTPUT TO THIS CAMERA MAY DAMAGE THE VIDEO CAMERA, OR CAUSE OTHER RISKS AND/OR INJURIES. Note: It is normal if the Video Camera housing get hot during charging process. Memory Card (microSD Card) A Micro SD card shall be inserted into this Video Camera before taking photos and/or videos as the internal memory of this Video Camera are designed for firmware only.
Page 10 To remove memory card: Turn the Video Camera off by press and hold the “POWER” button. Depress edge of memory card slightly by using fingernail, then memory card will pop-up from slot. Note: Must use at least Class 4 or higher speed rate TF card. Please use above Class 10 TF card when recording video in 2.7K@30fps/ 3.2K@30fps/ 4K@30fps.
Page 11: Installing The Mounts
Installing the Mounts When you at a circumstances where it is rain, underwater, liquids splashing, near or among sanding and/or dirt/dust, etc., you should put the Video Camera into waterproof case to protect it. When you at a circumstances where it is out of risks mentioned foregoing, you may directly install the Video Camera on the mounts or use waterproof case with replaceable Heat Dissipation Cover to improve recording quality of sounds.
Page 12 BE CAREFUL AFTER DRYING AND BEFORE CLOSE THE BACKDOOR, PLEASE MAKE SURE NO ANYTHING STICKING ON RUBBER SEAL OR HOUSING. NO WARRANTY COVERS DAMAGES CAUSED BY ERROR OPERATION. Replace Heat Dissipation Cover Open the backdoor of waterproof case. Pull backdoor towards the direction where there are openings on the hinge until the backdoor out of hinge.
Page 13 Waterproof Case to Helmet Mount Waterproof case can be directly installed to “Helmet Mount” as per below illustration. Waterproof Case to Bike (Handle Bar/Seat Post) Mount Waterproof case can be directly installed to “Handle Bar/Seat Post Mount”as per below illustration.
Page 14 To extend the distance, you may add any of or all of below Mounts between waterproof case and “Bike (Handle Bar/Seat Post) Mount” or “Helmet Mount”. or/and or/and...
Page 15 To adjust the mounting angle, you may use “Mount Adaptor” (one of the extension mounts), a 90 angle can be adjusted. or/and or/an...
Page 16: Reset
Reset During operation, in case the Video Camera encounters any abnormal function, use a pin insert into “RESET” hole and press it, the Camera will recover to its normal conditions. Basic Operation Power On and Off 1. Press the “Power/Shutter” button，the camera will power on; the work indicator flickers two times and then goes on in blue color.
Page 17 Press “MODE” button once, the camera enters “Photo Taking” mode. 1. Capture mode 2. Resolution 3. Memory card capacity 4. TF card inserted 5. WiFi 6. Battery capacity level 2016/06/13 13:07:04 7. Date&Time Press “MODE” button twice, the camera enters “Slow Motion Capture”...
Page 18: Setup
Press “MODE” button the fourth time, the camera enters “Setup” mode. 1. Video mode 2. Setup mode 3. Capture mode 4. Function setup 5. System setup 6. Exit Press “MODE” button the fifth time, the camera returns to “Video Capture” mode. Setup Power on the camera.
Page 19: System Setup Options
System Setup Options Menu Definitions Options Set OSD 【English】 / 【German】 / 【French】 Language (on-screen) / 【Italian】 / 【 Spanish】 / 【 Dutch】 language. /【Portuguese】 Set the date The date/time is in format of Date-Time and time. 【YYYY/MM/DD/HH/MM/SS】. Format your TF 【Confirmation】/【Cancel】...
Page 20 180 overturn of screen displaying and Press the 【OK】 video/photo capture. It Image button to activate or is convenient as a car Rotation deactivate it. recorder on a windshield. Press the 【OK】 Open/Close the Driving function of driving button to activate or Mode recorder.
Page 21: Video Mode Setup Options
Video Mode Setup Options Menu Definitions Function 【4K 30fps】/【3.2K 30fps】/【2.7K 30fps】 Video Set resolution of video /【1080P 60fps】/ Resolution capturing. 【1080P 30fps】 / 【720P 90fps】/【720P 60fps】 /【720P 30fps】 Activate or deactivate Press the 【OK】 Recording sound recording for button to activate or Sound video capturing.
Page 22: Operation
Set countdown timer. After press shutter, timer counts down, when down to 0, camera 【Close】 / 【 3s】 Auto will take a photo and then timer /【10s】/【15s】 restarts and counts for another /【20s】/【30s】 photo taking until any button being pressed. Activate or deactivate multiple 【...
Page 23: Remote Control By Mobile App / Wi-Fi Connecting
displays on LCD screen; in this mode, videos and photos displays, can be viewed; video can be played. Press “Wi-Fi” button once, photo or video file shifts to previous one until reach earliest one; photo or video file displaying will return to latest one if you press “Wi-Fi”...
Page 24: Sportcam" App Features Views
After WiFi connects, enter APP "SportCam" on your smartphone or Pad, then you can take photos, record videos, playback files and setup the camera remotely. When you press the “WiFi” button on the camera again, WiFi connection between camera and smartphone/pad exits. NOTE: When you use iPhone to remotely control the camera, especially for video capturing, please turn off the setting “Auto-Lock”...
Page 25 Capture Mode Image Same as “Drama resolution Shot” setting in camera itself and its Options as: off, Capture mode 3P/S,5P/S,10P/S. Take normal Same as “Auto” single photo Setting in camera itself and its Set self-timer Mode Options as: off / 3s and its Options as: / 10s / 15s / 20s / off / 3s/5s/10s/20s.
Page 26 Playback Mode Press this icon can choose to download or delete files. Recorded files Playback recorded files Settings Set the parameters of camera...
Page 27 For IOS Device Video Mode APP name Video resolution Loop recording mode and its Options as: off / 2 Video mode minutes / 3 minutes / 5 minutes. Normal video recording mode Time lapse recording mode and its Options as: off / 0.5s / 1s / 2s / 5s / 10s / 30s.
Page 28 Capture Mode Image Same as “Drama resolution Shot” setting in camera itself and Capture mode its Options as: off, 3P/S, 5P/S, 10P/S. Take normal single photo Same as “Auto” setting in camera Set self-timer itself and its Options mode and its as: off / 3s / 10s / Options as: off / 15s / 20s / 30s.
Page 29 Playback Mode Press this icon can choose to download or delete files. Recorded files Playback recorded files Setting Set the parameters of camera...
Page 30: Download Videos/Photos To A Pc
Note: We keep the right to change the APP and its setting without notification of you. Download Videos/Photos to a PC There are two ways to download Video/Photos files from the memory card to a computer: 1. Insert the memory card into a card reader. 2.
Page 31: View Photos/Videos On A Hdtv
Suggest following computer systems to playback Ultra HD Video Clips: Windows 7 or above Intel CORE i3 or above 4GB RAM or above Disc available capacity 10GB or more Graphic AMD Radeon HD 700, NVIDA GeForce 630 or above. (no requirement if processor is intel CORE i5 or above) View Photos/Videos on a HDTV Connect the Video Camera to a HDTV through a HDMI cable...
Page 32 PC interface Micro USB 2.0 Microphone Built-in Speaker Built-in Compatible microSD, microSDHC and Storage microSDXC cards, up to 64GB Built-in Li-ion rechargeable battery Power source 800mAh Dimension 59.4*42.5*21.8 mm Weight 63g (camera only) Copyright @ Miho Products 2016 Ver# ：SDV8560_2017001S0.1...
