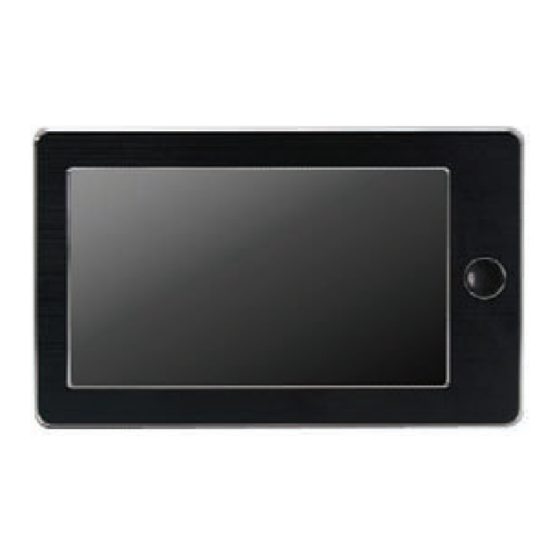

ELECTRO BRAND MP4316MO User Manual
  1. Manuals
  2. Brands
  3. ELECTRO BRAND Manuals
  4. Media Player
  5. MP4316MO
  6. User manual

ELECTRO BRAND MP4316MO User Manual

Digital mp4 player
Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL MP4316MO
MODEL MP4308CP
User Manual
Digital MP4 Player

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP4316MO and is the answer not in the manual?

Questions and answers

Summary of Contents for ELECTRO BRAND MP4316MO

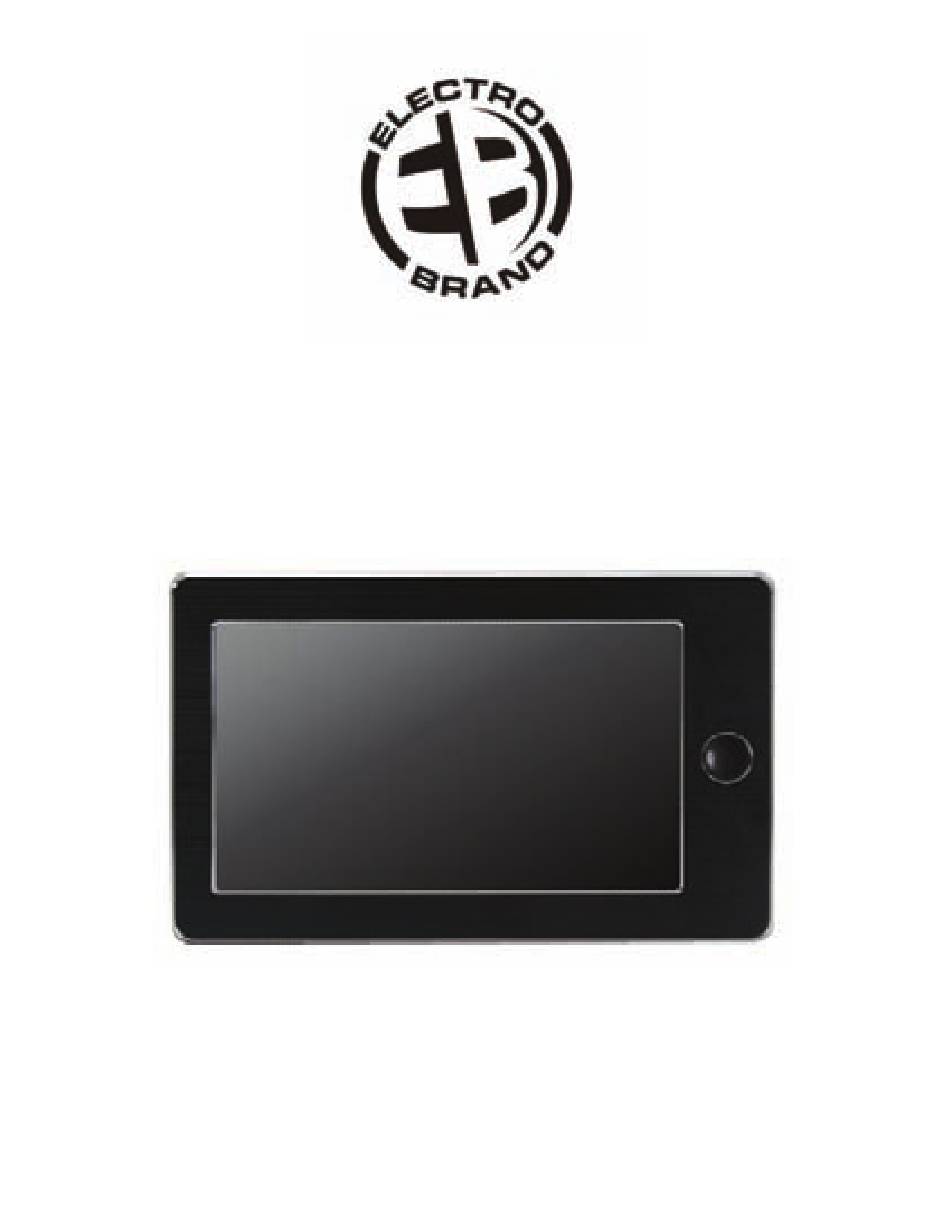

  • Page 1 MODEL MP4316MO MODEL MP4308CP User Manual Digital MP4 Player...
  • Page 2 Precautions For the correct use and good performance of the player, the user must fully understand the manual as well as strictly follow the instructions provided. Avoid high temperature (above 95ºF) or low temperature (below ...
  • Page 3 30ºF). Avoid dropping the unit.  Avoid unit’s contact with chemicals such as benzene, paint thinner,  etc. Do not use in the vicinity of strong magnetic fields.  Keep away from direct sunlight or heating appliances.  Never privately dissemble, repair or modify the player. ...
  • Page 4 APE, FLAC, WAV, AAC (including AAC-LC, AAC HE, AAC＋V1/V2). Many sound effects, SRS WOW+SRS WOW HD and user-defined effect adjustment. Intelligent audio media library management, supporting album art and  real-time dynamic spectrum display. Supports picture formats JPG, JPEG, BMP, GIF, PNG for displaying; ...
  • Page 5 Appearance Stylus...
  • Page 6 Touch Operations and Key Definitions 1， Keys Definitions Name Function definition (*) (1) Long press to turn on/turn off the player / (*) (2) Menu Short press to confirm/play. Short-cut key for volume increase; short press to Vol+ increase by one segment; long press to increase continuously Short-cut key for volume decrease;...

  • Page 7: Basic Operation

    Means touching to slide or drag direction, mainly for Slide/drag functions as Picture, Page up/down and Drag etc. Handwriting Mainly for entering characters/symbols identification 3. Touch icons Definitions Touch to go back to Homepage Touch for volume adjustment bar. Touch for information menu Touch it to return to previous page Basic Operation POWER ON/OFF...
  • Page 8 Charge A high-capacity lithium battery is included for the player. For charging, turn off unit and connect it to PC with USB cable provided together with the player. Turn unit on and you will see three modes: Power & Date, Charge, Charge &...
  • Page 9 Power situation of the battery. Low Power The player automatically shows a prompt interface when battery is low (picture below), then it shuts down. You will have to charge the player instead of restarting it. Power situation of the battery. How to save the files of Music, Video, Pictures, EBook, etc.
  • Page 10 For example: music files should be copied in MUSIC folder, otherwise, the file will not be found in the music application list. Root directory EBOOK FLASH MUSIC PICTURES RECORD VIDEO Using a Micro SD Card Two removable disks will be found after connecting this unit to a computer.
  • Page 11 Main menu It enters the Main menu as below after startup: Main application area: includes the following application icons: Music/ Videos/ Pictures/ Camera/ DV Recorder/ Recorder/ My EBook/ File Na/ Setting/ Calendar/ Calculator/ Stopwatch Background Switch box Desktop Background Switch Touch Desktop Background Switch box on 2 page.
  • Page 12 background pictures. Desktop background can be user defined through Photo application functions. Main menu of Music Playing Touch “Music” icon in Main Menu interface. The interface includes all music, artist, album, genre, my music list, dir list, record list, my rating, tag list.
  • Page 13 Artist is for saving files of songs whose artist is unknown. The same function is available for files of unknown album and unknown genre. Album: It shows as follows. Slide/drag to scroll through albums.  Genre (Type or Category): When one genre is selected from Genre list, all the music of the genre is listed next.
  • Page 14 other folders by pressing the RETURN icon Record List: All voice-recorded files are listed from the RECORD  folder. My rating: There are 5 list ratings from 1 to 5 stars. All the music files  of one rating are listed correspondingly. The user can classify his favorite music by rating;...
  • Page 15 When have entered (typed) a song’s name and touch this button, corresponding song will appear on the screen. Then select the song for Lightly touch playing. this button to delete the  previous letter Touch this button entered. to shift between Touch this button English,...
  • Page 16 Delete: Lightly touch the button to delete the previous letter or word entered. Stars Level Skip backward Skip forward Play/pause Album Picture Area: If there is album art included in the music file it will be displayed here. Spectrum/lyric display area: Supports “*.LRC” lyric files; lyric file name should correspond with the music name.
  • Page 17 Select EQ: Normal, Pop, Classic, Soft, Jazz, Rock, DBB, User EQ, SRS WOW, SRS WOWHD, SRS Mode Play mode: Sequence, Repeat One, Repeat All, Shuffle, Shuffle + Repeat; Intro Progress Bar: Play the current music from current time point by dragging or directly touching any position on the sliding bar.
  • Page 18 A-B repeat setting Playing speed. Song’s information Instructions for Music Download Note: You must have an MP3 file on your computer. This is an MP3 player. It does not create MP3 files. The following instructions explain copying and deleting MP3 files from your computer.
  • Page 19 Video Main menu Touch “Video” in Main Menu Interface and you will enter the “Video” list option interface as seen below: • Dir List: for sorting all video files by directory in the folder of VIDEO. You can view other files by touching the “Return icon” on the top right hand side.
  • Page 20 Touching the video information icon will enter video play mode. Video play mode: Playback Mode, Scan Speed, Add Tag, Screen Size, Resume Play mode: Sequence, Repeat One, Repeat All, Shuffle, Shuffle +  Repeat. (Default play mode is Sequence.) Scan Speed: set a scan time ...
  • Page 21 How to copy the video file: Right click on the highlighted video. A box will come up. Move cursor to “Select Copy ” (see picture “01”). Go back to Video Folder. Right click in the middle of the window and a box will open. Select “paste” (see picture “02”) and your video will be copied to the Video Folder of your MP3 player.
  • Page 22 Directory List: Lists all picture files in a directory.  Scan Mode: Thumbnail viewing mode is just for displaying pictures in  thumbnails. In list mode, picture files are displayed with file name + picture thumbnail. Slide Effect: For setting slide effect in Auto Play mode. Supports ...
  • Page 23 Touch the screen during picture playback and it shows as follows: Playback control area: Delete, Desktop Background Setting, Rotate, Zoom, Slide Interval, Slide Effect, Set as Desktop, Information. Rotate: Supports rotating by 90°, 180°, and 270° clockwise Zoom: Supports zoom-in and zoom-out Desktop Background Setting: Click this icon to set the current picture as desktop background Information: The information of the current picture: File Name,...
  • Page 24 File into the MP3 player: HOW TO COPY THE PHOTO FILE: Right click on the highlighted photo. A box will come up. Move cursor to “Select Copy” (see picture “01”). Go back to Picture Folder. Right click in the middle of the window and a box will open. Select “paste” (see picture “02”) and your photo will be copied to the picture folder of your MP3 player.
  • Page 25 Resolution: For shifting resolutions: 2048×1536, 1600×1200,  1280×1024, 1024×768, 640×480. Default resolution: 2048×1536 Shots Available: For dynamically displaying the number of shots  available according to the current picture resolution and space available. Exposure Mode: options include Auto, Indoor, and Outdoor. ...
  • Page 26 External Memory Device. Default setting: Pictures/Camera. Date Stamp: options include Off, Display Date or Display Date & Time. Default is OFF. Self-timer: for time setting, options include 5s, 10s, 15s, 20s, off. Default setting is OFF. Note: Where to view the picture that you took: The pictures will be saved in the folder: PICTURES->CAMERA.
  • Page 27 Resolution: options include 640×480, 320×240. Default setting:  640×480 Time Available for Recording: for dynamically displaying the  time available for recording according to the current resolution and space available. Exposure mode: same as that for Camera  Effects: same as that for Camera ...
  • Page 28 Record file format: MP3, WAV, WMA. Record Quality: Low, Mid, High Record Gain: adjustable record gain 1~5. Default setting: 3. Record Mode: Voice Record Save Path: options include Internal Memory Device The left button is Start button. Touch to enter recording interface and while recording the button will be red.
  • Page 29 Note: Where to play the voice recording that you took: The DV recording will be saved in the folder: RECORD->MIC. Then you can play the Voice Recording by: 1. Go to MUSIC playback menu. You can select Record List 2. Go to the Folder to open the voice recording file. E-book Touch “E-book”...
  • Page 30 – Tag List”. Touch on the top right hand corner of the information icon to enter the E-book setting interface. Auto Reading Speed: for setting the time of Auto Read, with 3s/6s/9s/12s/15s available for selection. Skip to: touch this button to display the current text progress, current page number/total page of the file.
  • Page 31 “Information” icon (on the right side on top, in the middle). Scroll up to select “Delete”. Touch “yes” to confirm and the file you selected will be deleted. To Delete File from File Navigation: Touch the “File Navigation” icon, then select the folder “Music”, “Videos” or “Pictures”...
  • Page 32 Display: 1) Backlight Options: level 1~5, the higher the level is, the brighter it will be. Default setting: Level 3. 2) Backlight time: The backlight will be off when no operation during this time period; options: off/5s/10s/20s/30s/1 min/5 min. Default setting: Off. Power Saving:1) Idle time: The machine is shut down if there is no operation during this time period;...
  • Page 33 Calculator Touch Calculator icon to enter Calculator application interface. Functions of the calculator are the same as those of the one in a computer. Stop Watch Touch Stop Watch in Drag/drop Area and it enters Stop Watch application interface. It supports Start/Stop, Count/Reset functions. When Start( is clicked,...
  • Page 34 )is changed into Count Button that is changed into Reset button ( Reset button again when Stop Watch is stopped. Touch Reset ( ) to clear all count values. 0.01s is adopted for stop watch step; max range is 60 minutes; up to 5 counts supported.

This manual is also suitable for:

Mp4308cp
