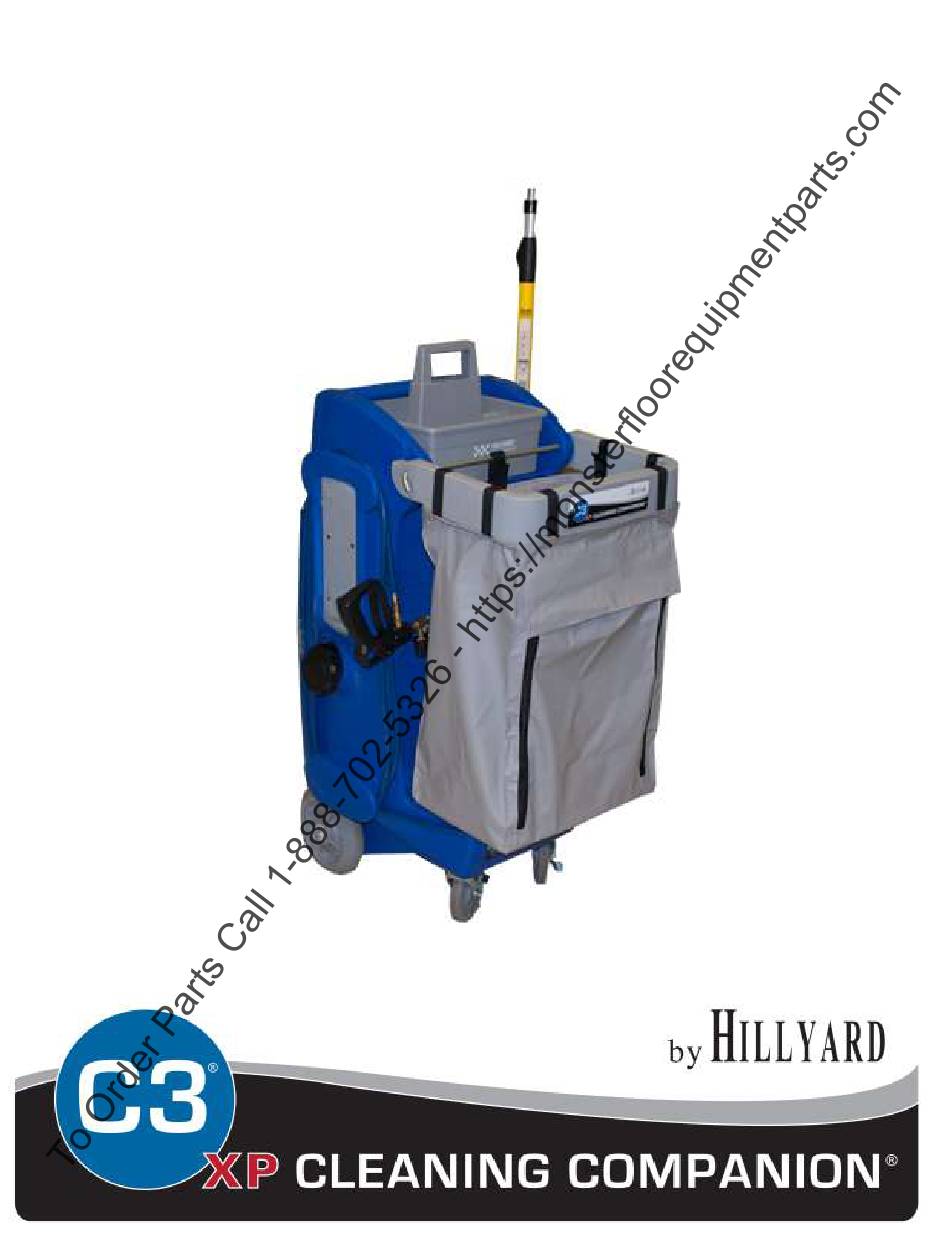

- Page 1 Owner’s Manual...
- Page 2 Packing List: C3XP Unit 10 Gallon water reservoir (integral) Spray gun w/ 2 settings 17 ft. discharge hose (installed) 12-volt battery Battery charger Telescoping handle Instruction manual Removable Cleaning Caddy 18’’ floor squeegee Pivot arm Pivot arm lock bar w/locking nut Utility Bag Initial Setup: The battery is shipped installed and charged, but not connected to the pump.
- Page 3 Initial Priming: Set the spray gun to the low pressure setting (see attached spray gun instructions). Set the chemical selector to the desired product. (see diagram at bottom of page) [IN ORDER FOR THE MACHINE TO INITIALLY PRIME CORRECTLY, YOU MUST PRIME WITH Cleaning Companion PRODUCT IN USE] Turn the switch on.
- Page 4 Periodic: ® 1. Soak both spray tips in Hillyard Extra Strength CSP to help minimize tip blockage and protect the pump from excessively cycling the pressure switch. 2. Remove water supply line from the bottom of the tank and clean inlet screen located within the foot valve.
- Page 5 Make sure all connections are tight and there are no water leaks in the system. d. Make sure you are properly primed and have chemical running through the system. e. Soak tips in Hillyard Extra Strength CSP overnight and rinse, this will help remove scale and mineral deposits.
- Page 6 Hillyard C3® and C3XP Spray Gun Use Instructions The C3 and C3XP are designed to use a low pressure setting for applying the cleaning/disinfecting solution and high pressure setting for clear water rinsing. The rollover valve achieves the low pressure setting by sending water through 2 spray tips and achieves the high pressure setting by only utilizing the one high pressure tip.
- Page 7 ® Hillyard C3XP The Hillyard C3XP is sold with a full parts and labor warranty. 1year warranty on parts and labor from date of delivery This warranty covers the C3XP machine with the exception of wear items. Wear items are materials that simply wear out after time and usage.
