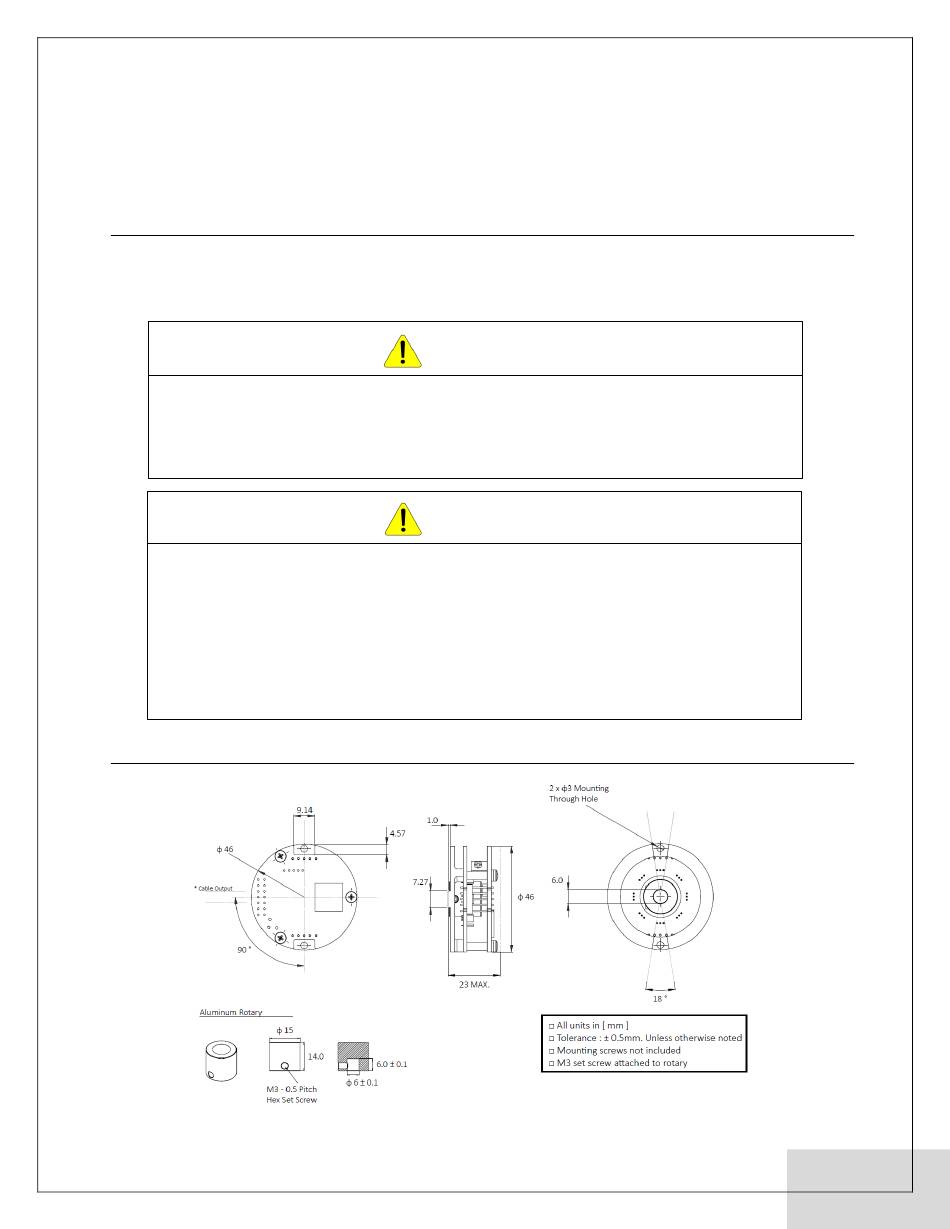

DSN05 Series Incremental Encoder Installation Manual
Manual Number : dmmdsn05_inmt | Reference Product Manual : dmmdsnr_pm80
Revision : A1.4
Date : Sept 2013
● Depending on application, encoder mounting and tuning procedures may require running of high speed or high
power rotating devices. Ensure all preventative measures with a high level safety control to reduce the risks of user
bodily harm.
● This encoder model is not designed to ensure safety of persons directly or indirectly.
● The interface cable of the DSN encoder is very thin with high density. Do not short the +5VDC supply voltage and
ground terminal. This will permanently damage the encoder.
● The encoder should be mounted in a clean environment. Ensure minimal presence of dust, chemicals or other
hazardous materials. Consult the exact temperature, humidity and protection specification of the encoder model.
● The DSN encoder uses magnetic field sensor measurements for operation. Although the encoder is not very
sensitive to external magnetic disturbances or noise, the mounting and operating environment should have no
presence of excessive magnetic field. Consult DMM Technology Corp. if you suspect problems with this matter.
● Third party safety directive certification documentation available from DMM Technology Corp. upon request. Once
the product is integrated into a higher design or application by the customer, DMM Technology Corp. does not hold
responsibility for conformity to any certification standards.
● Follow all specification requirements of the encoder model and ensure all conditions are satisfied. Improper use of
encoder outside specification outlines can permanently damage encoder and void the warranty. Consult DMM
Technology Corp. if application requires conditions falling outside of encoder model specification.

Encoder Dimension

www.dmm-tech.com
TEL : +1.604.370.4168
MAIL : info@dmm-tech.com | sales@dmm-tech.com
WEB : www.dmm-tech.com
WARNING
CAUTION
DMMDSN05_INMT | rev. A1.4 | 09/13
