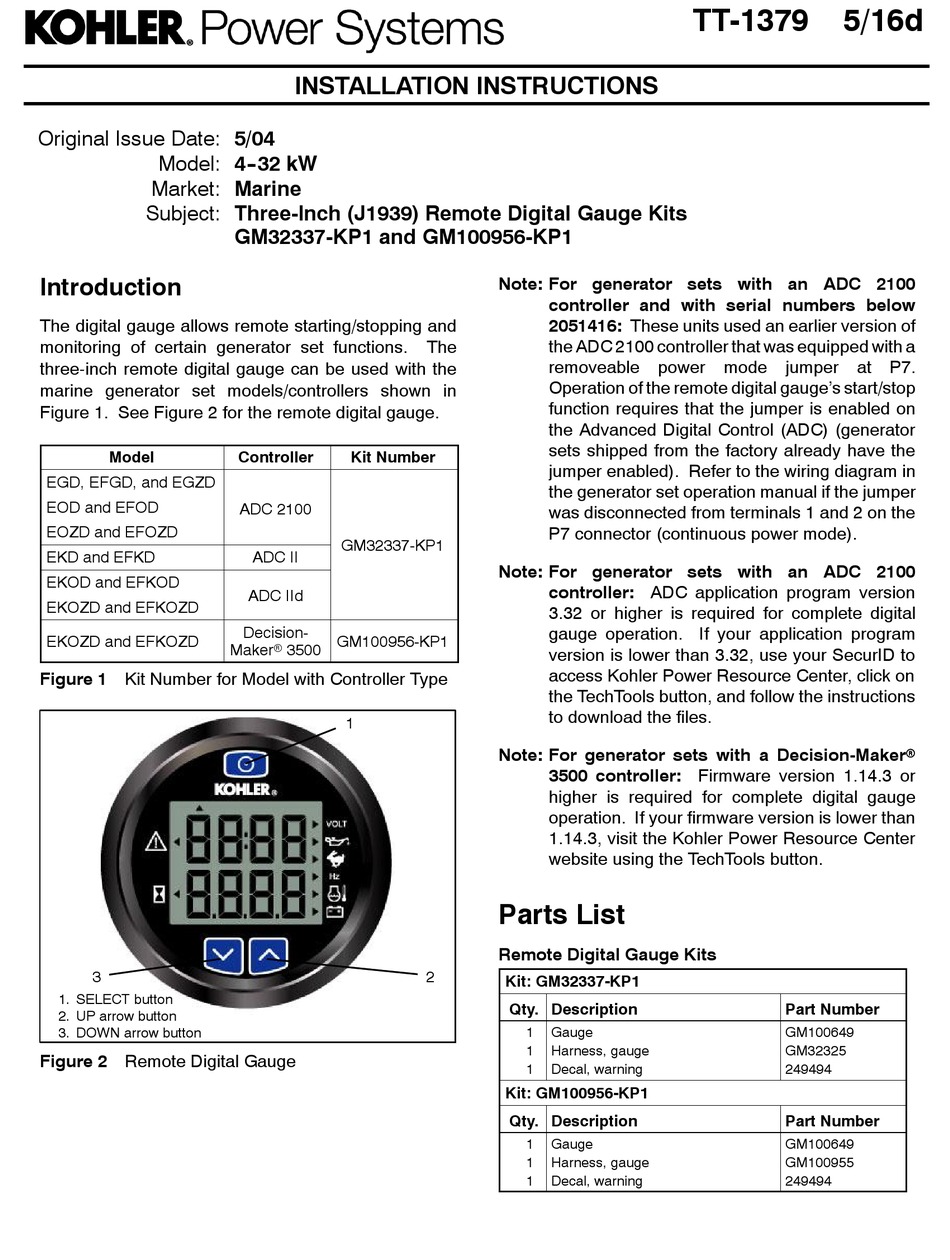

Original Issue Date: 5/04
Model: 4- -32 kW
Market: Marine
Subject: Three-Inch (J1939) Remote Digital Gauge Kits
Introduction
The digital gauge allows remote starting/stopping and
monitoring of certain generator set functions.
three-inch remote digital gauge can be used with the
marine generator set models/controllers shown in
Figure 1. See Figure 2 for the remote digital gauge.
Model
EGD, EFGD, and EGZD
EOD and EFOD
EOZD and EFOZD
EKD and EFKD
EKOD and EFKOD
EKOZD and EFKOZD
EKOZD and EFKOZD
Figure 1 Kit Number for Model with Controller Type
3
1. SELECT button
2. UP arrow button
3. DOWN arrow button

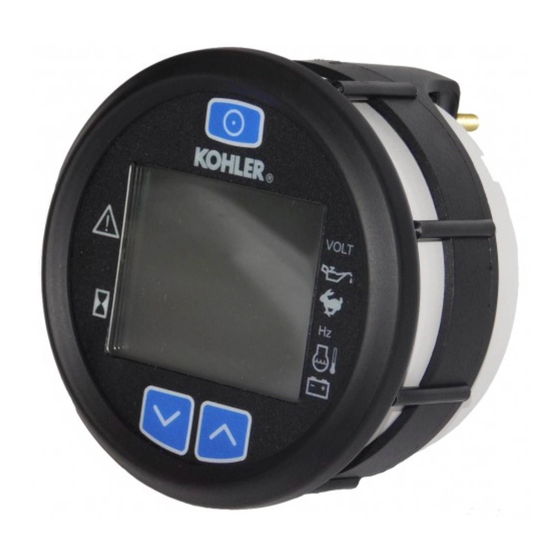

Figure 2 Remote Digital Gauge
INSTALLATION INSTRUCTIONS
GM32337-KP1 and GM100956-KP1
Controller
Kit Number
ADC 2100
GM32337-KP1
ADC II
ADC IId
Decision-
GM100956-KP1
Makerr 3500
1
Note: For generator sets with an ADC 2100
controller and with serial numbers below
2051416: These units used an earlier version of
the ADC 2100 controller that was equipped with a
The
removeable power
Operation of the remote digital gauge's start/stop
function requires that the jumper is enabled on
the Advanced Digital Control (ADC) (generator
sets shipped from the factory already have the
jumper enabled). Refer to the wiring diagram in
the generator set operation manual if the jumper
was disconnected from terminals 1 and 2 on the
P7 connector (continuous power mode).
Note: For generator sets with an ADC 2100
controller: ADC application program version
3.32 or higher is required for complete digital
gauge operation. If your application program
version is lower than 3.32, use your SecurID to
access Kohler Power Resource Center, click on
the TechTools button, and follow the instructions
to download the files.
Note: For generator sets with a Decision-Makerr
3500 controller: Firmware version 1.14.3 or
higher is required for complete digital gauge
operation. If your firmware version is lower than
1.14.3, visit the Kohler Power Resource Center
website using the TechTools button.
Parts List
Remote Digital Gauge Kits
2
Kit: GM32337-KP1
Qty. Description
1
Gauge
1
Harness, gauge
1
Decal, warning
Kit: GM100956-KP1
Qty. Description
1
Gauge
1
Harness, gauge
1
Decal, warning
TT-1379
5/16d
mode jumper
at P7.
Part Number
GM100649
GM32325
249494
Part Number
GM100649
GM100955
249494
