DL150M 2500 W Dummy Load
Technical Manual
2500 W power handling FOR 1 min
l
600 W 100% duty
l
DC to 60 Mhz frequency
l
100° C temp heat sink max power input
l
Dual 240 cfm thermostatically controlled fans
l
Fan turns on @ 45° C
l
50 Ohms +/-5%
l
l
Better than -20 dB R/L @ 1 - 60 Mhz
SO-239 Coax Input Connector
l
Internal wattmeter and analog metering
l
0-500 Watts/0-5000 Watts Meter power range
l
Weight: 20 Lbs (9.07 Kg)
l
12" W x 7" H x 13.5" D
l
9676 N. Looney Rd,
Piqua, OH 45356 USA
(937) 773-6255
(800) 773-7931
(937) 773-8003 (Fax)
www.palstar.com
PALSTAR
PALSTAR

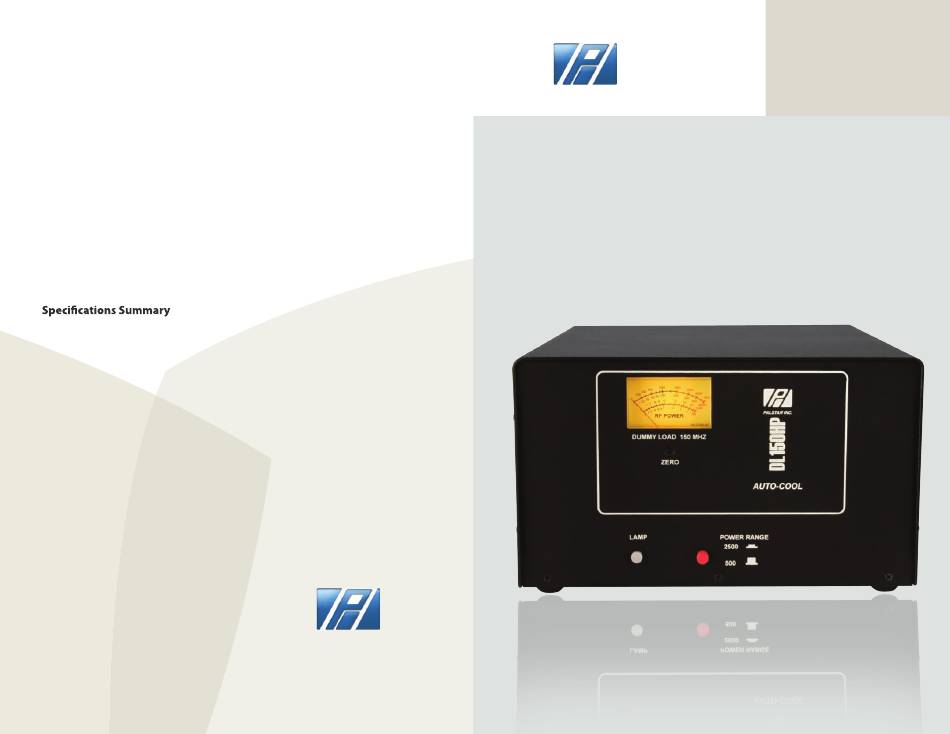

DL150HP 2500 W Dummy Load
Technical Manual
Designed and Manufactured in the USA
Copyright 2014 Palstar, Inc.
