Summary of Contents for Holyiot Holyiot-17095

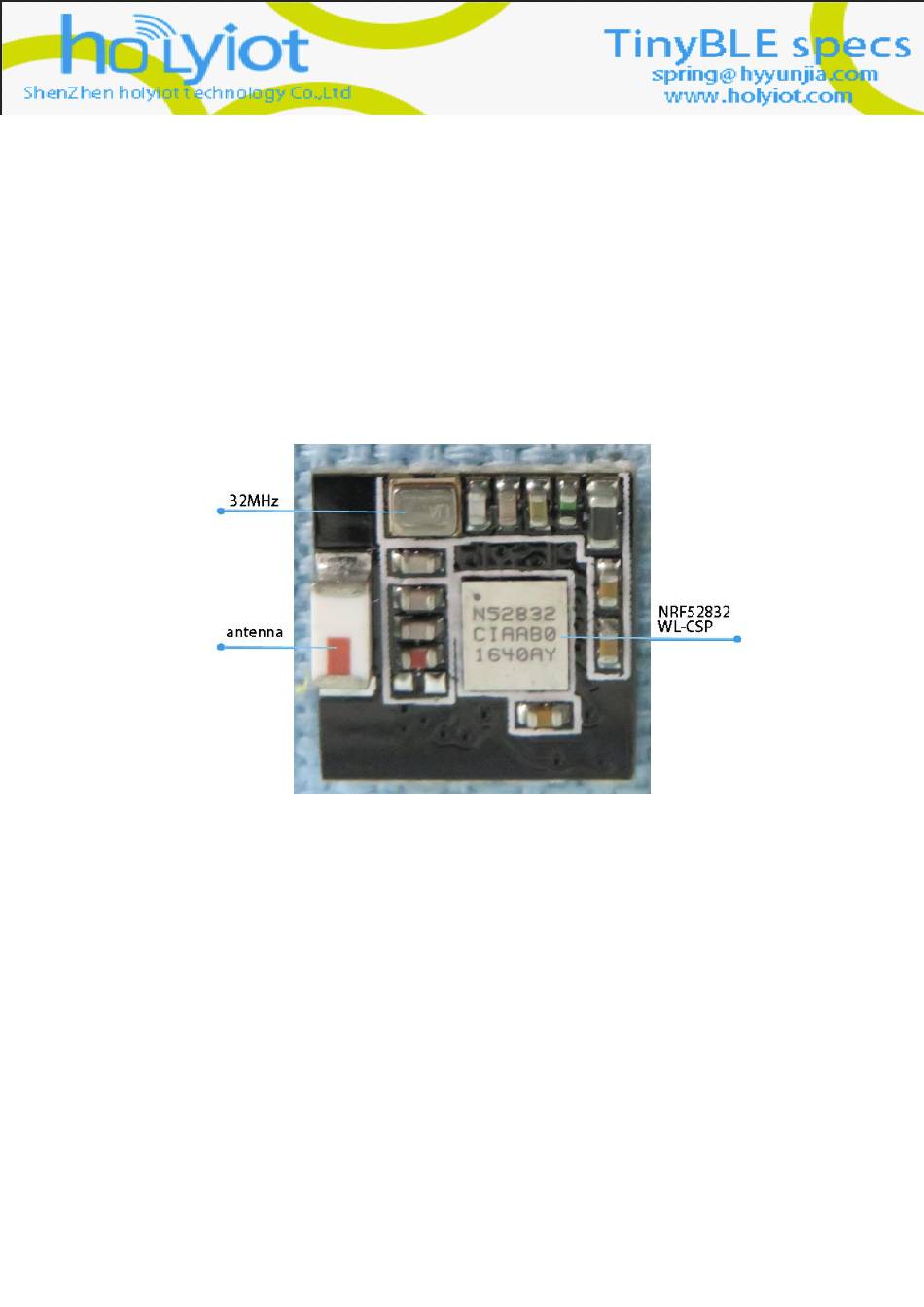

- Page 1 NRF52832AA Bluetooth module Holyiot-17095 module...
-
Page 2: Table Of Contents
CONTENTS Overview ..............................1 Feature ..............................1 Schematic ..............................2 PCB Layout ..............................3 Pin definition ............................4 Application..............................5 A4WP ‘Rezence’ wireless charging ....................5 About Us ..............................5... -
Page 3: Overview
Overview NRF52832AA(holyiot-17095) which we selected Nordic nRF52832 WL-CSP Chip(BGA chip) ,the NRF52832AA is very very Tiny module , the size is just about 9.4mm*9.25mm , just like a finger size. The NRF52832AA is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth low energy (previously called Bluetooth Smart),32-bit ARM ®... -
Page 4: Schematic
Schematic - 2 -... -
Page 5: Pcb Layout
PCB Layout - 3 -... -
Page 6: Pin Definition
Pn definition PIN No PIN Definition Description PIN 1 SWDCLK Debug/program PIN 2 SWDIO Debug/program PIN 3 P0.21 GPIO PIN 4 P0.18 GPIO PIN 5 P0.15 GPIO PIN 6 P0.08 GPIO PIN 7 P0.06 GPIO PIN 8 P0.05 GPIO PIN 9 P0.00 GPIO PIN 10... -
Page 7: Application
Application Internet of Things (IoT) Wearables SmartHome sensors Connected white goods Computer peripherals Voice-command smart remotes A4WP ‘Rezence’ wireless charging Beacons Sports and fitness sensors and hubs Connected health products Smart watches RC Toys Interactive games Building automation and sensor networks About Us We are a company who located in shenzhen ,China . - Page 8 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 9 IMPORTANT NOTE: This device is intended only for OEM integrators under the following conditions: (1) According to FCC Part 15 Subpart C Section 15.212, the radio elements of the modular transmitter must have their own shielding. However, due to there is no shielding for this BT module, this module is granted as a Limited Modular Approval.
