Summary of Contents for Adaptek AWT-1081
- Page 1 Industrial Workstation User's Manual...
-
Page 2: Table Of Contents
Table Of Contents Safety Precautions Important safety Instructions CHAPTER1. 1.0 General Information 1.1 Features 1.2 Product package CHAPTER2. 2.0 Product layout 2.1 Install mainboard 2.2 Install HDD and CD-ROM 2.3 connect VGA / Keyboard / mouse cable CHAPTER3. 3.0 Operation 3.1 Power LED Indicator 3.2 OSD control keys CHAPTER4. -
Page 3: Important Safety Instructions
Important safety Instructions Please read the following instructions carefully. This manual should be retained for future use. Unplug the monitor from the power source when you clean the monitor. Don’t use liquid cleaners or aerosol cleaners. Use soft cloth only, If it’s not available, please consult hardware retailer for cleaning information. -
Page 4: Chapter1

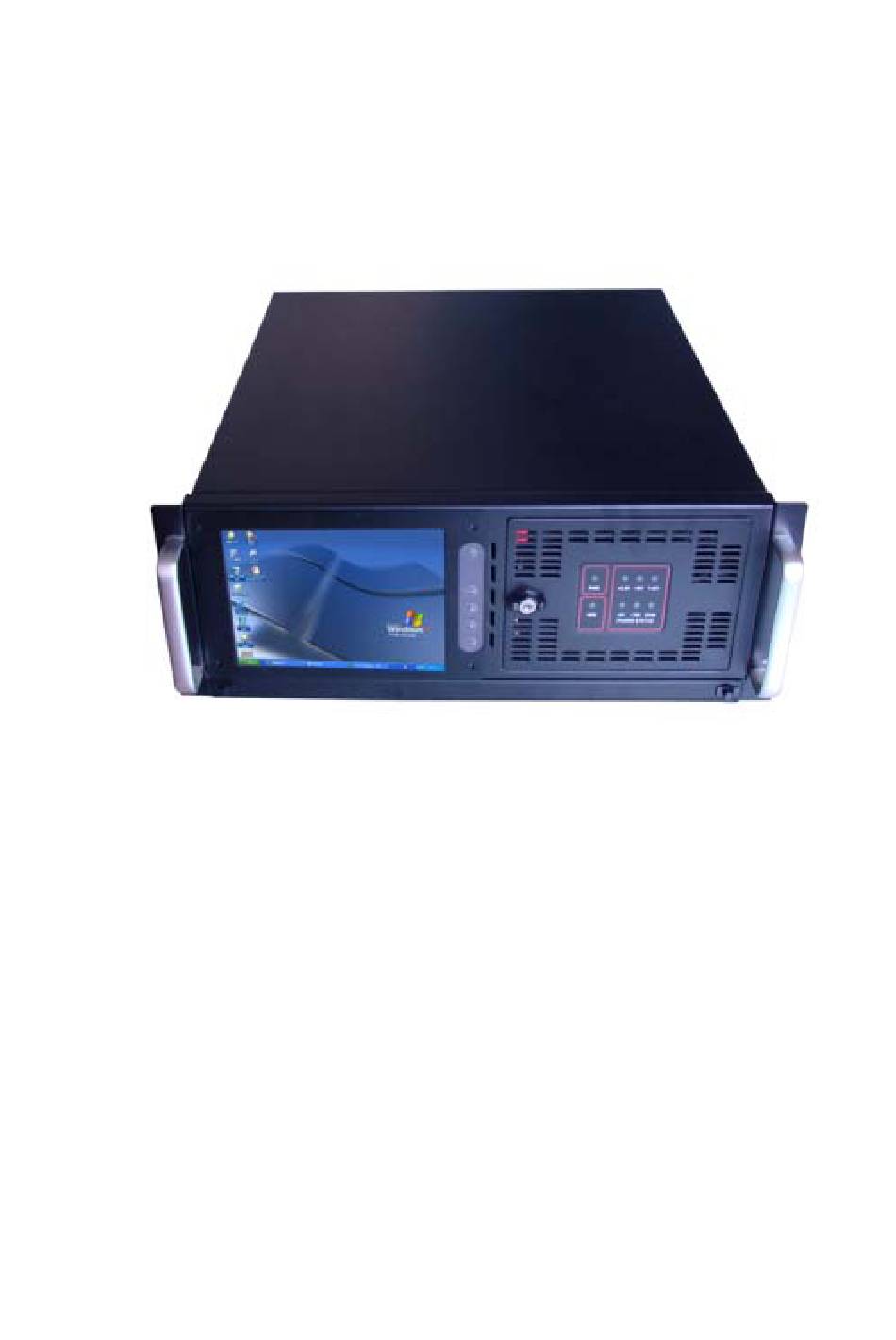

CHAPTER 1 General Information This is a 4U Rackmount Workstation with an 8” LCD display and built-in slim keyboard and Touchpad drawer. This workstation is a fully-functional and cost-effective industrial automation controller . the built-in VGA a/d board ensures that the system is compatible with a variety of single board computers from most vendors, the front panel OSD controller allows users to move the LCD into the best position for any environment. -
Page 5: Chapter2
CHAPTER2 2.0 PRODUCT LAYOUT please dismantle the four screws as the drawing shows using the screw driver then the back cover will open as follows... -
Page 6: Install Mainboard
2.1 Install mainboard 2.1.1 dismantle The pcicard bracket as follows PCI card bracket 2.1.2 Install mainboard and connect power cable as follows... -
Page 7: Install Hdd And Cd-Rom
2.2 Install HDD and CD-ROM 2.2.1 dismantle the screws with a screwdriver in counter-clock direction. HDD bracket as follows HDD bracket 2.3 connect VGA / Keyboard / mouse cable 2.3.1 Take the VGA . keyboard and mouse cable out from accessory box as follows:... -
Page 8: Chapter3
CHAPTER3 3. Operation OSD Control Panel 3.1 Power LED Indicator When the monitor is working, the power LED is green. 3.2 OSD Control key 3.2.1 press the power switch key to turn ON or OFF monitor power, NOT a system power switch. -
Page 9: Chapter4
CHAPTER4 Cable pin assignment 4.1.1 USB cable pin assignment Description Data- Data+ 4.1.2 LCD Power cord pin assignment Description +12V... - Page 10 4.1.3 FAN Power cord pin assignment Description +12V detect speed 4.1.4 Power supply cable pin assignment Description +5SB +3.3V -12V +12V...
