rConix SlinkE2 Quick Start Manual

Receiver configuration and connection

Download this manual

rConix

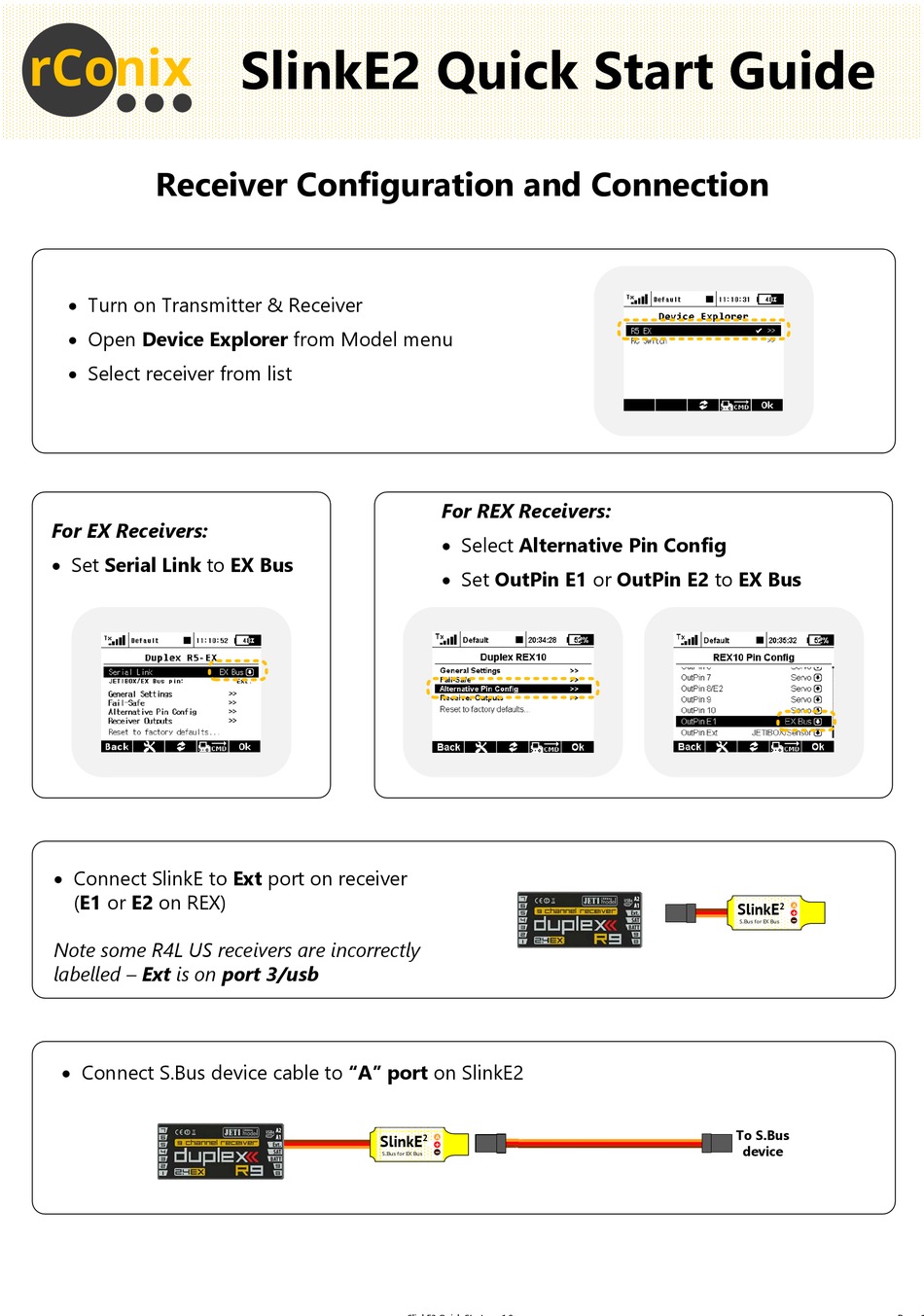

Receiver Configuration and Connection

 Turn on Transmitter & Receiver

 Open Device Explorer from Model menu

 Select receiver from list

For EX Receivers:

 Set Serial Link to EX Bus

 Connect SlinkE to Ext port on receiver

(E1 or E2 on REX)

Note some R4L US receivers are incorrectly

labelled – Ext is on port 3/usb

 Connect S.Bus device cable to "A" port on SlinkE2

SlinkE2 Quick Start Guide

SlinkE

S.Bus for EX Bus

For REX Receivers:

 Select Alternative Pin Config

 Set OutPin E1 or OutPin E2 to EX Bus

–

SlinkE

–

S.Bus for EX Bus

To S.Bus

device

Page 1  Connect SlinkE to Ext port on receiver (E1 or E2 on REX) SlinkE – S.Bus for EX Bus Note some R4L US receivers are incorrectly labelled – Ext is on port 3/usb  Connect S.Bus device cable to “A” port on SlinkE2 To S.Bus SlinkE device – S.Bus for EX Bus...
Page 2: Power Connections
Power Connections Avoid drawing high currents from Jeti receiver EXT port ! SlinkE2 is rated for 3.5A continuous current, but the EXT port on many Jeti receivers (and Central Boxes) is only rated for ~100mA or less. Arrange power connections so that high currents are not passed through the Jeti receiver ports.
Page 3 SlinkE2 Quick Start Guide SlinkE – S.Bus for EX Bus SlinkE – S.Bus for EX Bus Flight Controller S.Bus SlinkE – S.Bus for EX Bus...
Page 4  From Tx, select Applications… Jetibox  Use left/right arrow buttons to Mx  Use down arrow button to enter SlinkE2 menu  Use up/down arrow buttons to change between different settings  Use left/right arrow buttons to adjust settings Changes to settings take effect immediately, and are stored in memory.
