Summary of Contents for VES Elite-RS H-Series

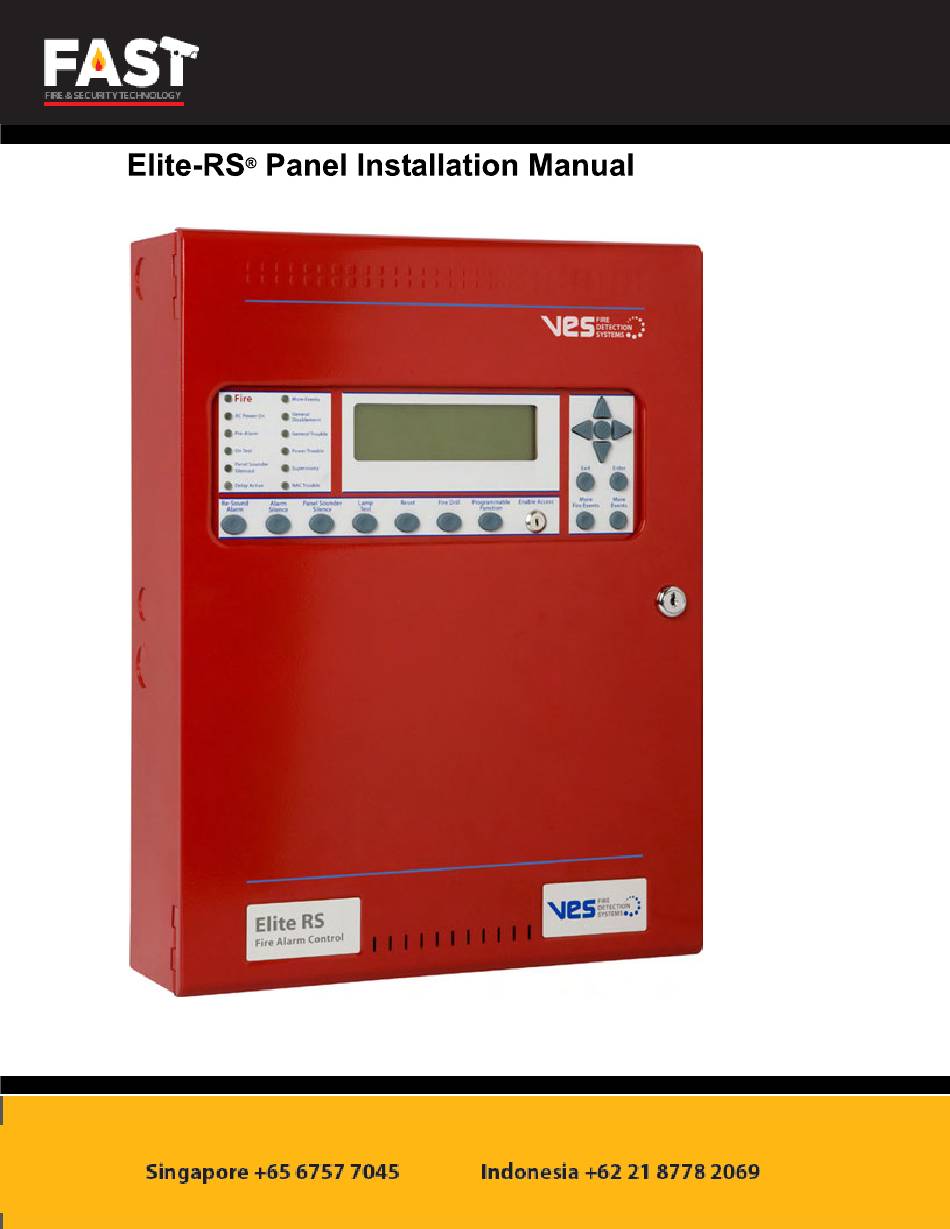

  • Page 1 Phone: Office +65 6757 7045 Emails: sales@allfireinternational.com...
  • Page 2 Underwriters Laboratories (UL) File number (S 8485) Fire Alarm Equipment VES, LLC The VES Elite-RS Panel is suitable as follows: • Local Signaling Unit • Releasing for eLAN-RS Panels only. Non-Releasing for Elite-RS Panels. • Types of signaling services are automatic fire alarm, manual fire alarm, waterflow alarm and sprinkler supervisory.
  • Page 3 If trouble is experienced with this equipment Fire Alarm Control Panel, for repairs or warranty information, please contact VES, LLC 620 Allendale Rd, King of Prussia, PA.
  • Page 4 NFPA VES, LLC Install this product in accordance with NFPA 13, NFPA 72 and NEC 70 and all local codes. Short Circuit Isolator Modules protect SLC loop devices from single-loop-shorts. SLC loops must be wired with Short Circuit Isolator Modules to comply with NFPA 72, Class A Style 7.
  • Page 5 Copyright © 2010 by VES, LLC All rights reserved. VES is a registered trademark of VES, LLC. All other product or service names are the property of their respective owners. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...

  • Page 6: Table Of Contents

    Contacting VES Tech Support ........
  • Page 7 Loop Data Test ............44 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 8 Terminals ............67 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 9 VES Elite-RS Panels ........
  • Page 10 Event Code Translation ............136 This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 11 0 - 5 seconds 0 seconds Supervised Output Module Delay 0 - 5 seconds 0 seconds Reference Appendix B, “Equipment List” for the specific models described in this table. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 1 of 145...
  • Page 12 Introduction This manual describes 1 and 2 loop models of the VES Elite-RS H-Series Panel. All models of the Elite-RS H-Series support Hochiki protocol. One loop models include the No Communication VF0810, the Non-Expandable, No Communication VF0830, the Media Gateway VF0811, the Non-Expandable, Media Gateway VF0831, the Network Interface Card (NIC) VF0812,...

  • Page 13: Introduction

    Appendix A Specifications provides characteristics of the Elite-RS Panel. Appendix B Equipment List provides model numbers for VES Elite-RS Panels, loop devices, accessories, replacement parts and compatible Notification Appliances. Appendix C Calculations provides calculations for determining load capacity, battery rating, and wiring length of the Elite-RS Panel.

  • Page 14: Document Conventions

    Installation of the product RMA Returns Required A Return Material Authorization (RMA) must be assigned to all products returning to VES. VES Tech Support will assign an RMA to a returning product after recording information collected from the on-site technician. VES cannot not accept product-returns that do not include an accompanying RMA number.

  • Page 15: Warranty Returns

    Warranty products that have been placed in service will be repaired or replaced by VES. Warranty products that have not been placed in service will be returned to VES stock and an equivalent credit will be provided to the contractor.

  • Page 16: Overview

    The Elite-RS Panel can be equipped with an industry standard digital communicator capable of transmitting both SIA and Contact ID formats. Configurations can be performed through VES Loop Explorer, eSP Discovery or through the use of the front-panel soft-keys.

  • Page 17: Contact Id Address Restrictions

    NAC outputs of the Elite-RS Panel are programmable and can be operated in regulated or special application mode. Reference Appendix A, Specifications for constraints and operating levels of these NAC output modes. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 18: Panel Controls And Indicators

    Battery Connection AC POWER Description Description Terminal connections AC power connections Left-panel-indicators Settings and controls Lower-control-pad Right-panel-controls and indicators PC connection LCD Display Battery connection JP1 connection VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 8 of 145...

  • Page 19: Left-Panel-Indicators

    Delay Active NAC Trouble Panel Sounder Silence Yellow Delay Active Yellow More Events Yellow Point Bypassed Yellow General Trouble Yellow Power Trouble Yellow Supervisory Yellow NAC Trouble Yellow VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 9 of 145...

  • Page 20: Right-Panel Controls

    Enter Enables the menu selection. More Events Displays the number of events present and overrides menu navigation. Provides event status for Fire, Pre-Alarm, Trouble, Disablements and Other. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 10 of 145...

  • Page 21: Lower-Control-Pad

    Enable Access This feature places the menu of the Elite-RS in ACCESS LEVEL 2. Insert the key in the lock and turn it to the right to obtain ACCESS LEVEL 2. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 22: Settings And Resets

    32 33 34 35 36 37 24V OUTAUX 24V NAC 1 NAC2 SLC1 OUT SLC1 IN TROUBLE FIRE SUPERVISORY NET OUT NET IN COMMS SLC2 OUT SLC2 IN VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 12 of 145...
  • Page 23 SLC2 OUT 38 and 39 Terminal connections for the “OUT” of SLC loop 2. SLC2 IN 40 and 41 Terminal connections for the “IN” of SLC loop 2. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 13 of 145...

  • Page 24: Internal Power Supply

    The control panel provides an LED status display for normal and fault conditions. Normal conditions occur when the power supply is operating in an acceptable range. Fault conditions occur when the power supply is not operating in an accept- able range. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...
  • Page 25 Overview This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 15 of 145...

  • Page 26: Installation

    Connect the standby-batteries to the terminal-connection on the front-panel. Connect all cabling. Apply power to the Elite-RS Panel from the AC source. Configure the Elite-RS Panel. Test the Elite-RS Panel installation. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 16 of 146...

  • Page 27: Before You Begin

    Perform the installation only after calculations have been completed for a suitable battery size. Battery standby-hours are dependant on battery capacity and load of the FACP system. Reference Appendix C, Calculations to determine the standby-battery capacity of the system. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 28: Operating Constraints

    Figure 3-1 Door Clearance Recommendation 24.5 Marking the Location Mark hole locations on the premises-wall for mounting the Elite-RS Panel. Figure 3-2 Hole Marking Requirements Ø0.25 16.50 12.25 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 18 of 146...

  • Page 29: Anchoring The Cabinet

    Remove debris from the base of the cabinet that may have accumulated during the anchoring process. Replace the front-panel on the cabinet-hinges and insert the hinge-pins to secure it. Replace the cabinet-door on the cabinet-hinges and insert the hinge-pins to secure it. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 30: Connecting Power And Devices

    The Elite-RS Panel accepts battery sizes up to 18AH. Batteries larger than 18AH may be mounted remotely in a UL-listed VES Battery Cabinet. Batteries smaller than 18 AH do not require special cabinet-mounting considerations. Reference Appendix B, “Equipment List” for UL-listed battery cabinets. The power supply can charge batteries up to 50 AH.
  • Page 31 VF5450-00 and sealed rechargeable Battery Kit, VF1514-00 contains battery leads, jumper and fuse assembly VF1548-00. Fuse assembly VF1548-00 contains 32 V @10 A fuse with red cabling. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 21 of 146...

  • Page 32: Before Wiring And Operating

    The figure below illustrates the location of jumper J1 on the circuit-board of the Elite-RS Panel: Figure 3-13 Circuit-Board Jumper J1 REMOVE JUMPER J1 TO OPERATE THE POWER SUPPLY AT 240 VAC. D1090 ISSUE 01 FUSE 5X20 WARNING HIGH VOLTAGE VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 22 of 146...

  • Page 33: Ac Wiring

    Insert the stripped end of the white-wire in the right-side of the connector. Tighten the right-screw so that the white-wire is secure in the terminal-connector. Cut 3 feet of green-wire and strip 1/4” of insulation from one end. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 34: Connecting Communication

    Connect the tip-wire of the phone-line to terminal P1T. Connect the ring-wire of the phone-line to terminal P1R. Connect the tip-wire of the Elite-RS-line to terminal L1T. Connect the ring-wire of the Elite-RS-line to terminal L1R. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...

  • Page 35: Connecting Class A Loops

    Devices between the Short Circuit Isolator Modules are isolated and inoperative. • Other devices on the SLC loop remain operational. • The VES Elite-RS Panel indicates a trouble condition. To install Class A, Style 6 and Style 7 SLC loops: • Do not use T-taps on Class A SLC loops.

  • Page 36: Nfpa 72, Style 7

    The figure below illustrates the use of closed nippling and conduit nippling on an SLC loop of the Elite-RS Panel: Figure 3-18 Individual Enclosure Reference manufacturer specifications for Short Circuit Isolator Module and Sensor connections. CONDUIT INDIVIDUAL ENCLOSURE SHORT CIRCUIT ISOLATORS SENSOR VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 26 of 146...

  • Page 37: Nfpa 72, Style 6

    NFPA 72, Style 6 For Class A, Style 6 compliance, the Short Circuit Isolator Modules may be located at strategic locations based on the discretion of the designer or installer. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...

  • Page 38: Connecting Class B Loops

    0.7 times the linear spacing in accordance with National Fire Alarm Code, NFPA 72. Also reference 55.3.1 and 55.3.2 of UL 864, 9th edition for these detector spacing requirements. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 39: Output Modules Controlling Notification Appliances

    NAC outputs on the Elite-RS Panel are synchronized however these outputs cannot be synchronized with other control panels operating synchronized-visual notification appliances. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...

  • Page 40: Connecting Nac Devices

    APPLIANCE CIRCUIT CONTAINING THREE STROBES AND AN END OF LINE DEVICE. 15 16 17 18 15 16 17 18 NAC 1 NAC 2 NAC 1 NAC 2 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 30 of 146...

  • Page 41: Connecting Auxiliary 24 Vdc

    SLC1 OUT SLC1 IN TROUBLE FIRE SUPERVISORY The adjacent figure illustrates a trouble-condition caused by the absence of end-of-line resistors and end-of-line- devices on terminals of the Elite-RS Panel. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 31 of 146...

  • Page 42: Installing Municipal Boxes

    Terminate all connections using three 18 AWG wire-nuts. The maximum wire-length between the Elite-RS and the EOLD must not exceed 847 feet of 18 AWG wire. The “Out” leads of the EOLD shall connect directly to the terminal block of the municipal box. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 43: Testing The Installation

    Exit Enter Delay Active NAC Trouble Enable Access Re-Sound More More Alarm Panel Sounder Lamp Programmable Reset Fire Drill Alarm Fire Events Events Silence Silence Test Function VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 33 of 146...
  • Page 44 Initializations performed during the booting process are complete when the Normal Standby condition displays. The Normal Standy condition indicates that the Elite-RS Panel is operating properly and that the installation was successful. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 45: Testing The Panel Lamps

    Press any numeric arrow-button on the right-control-panel or turn the enable key-switch to the right to display “SET ACCESS LEVEL 2 MENU” on the LCD. Provide Access Level 2 authorization and then press Enter on the right-control-panel. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 46 The LCD display provides the following message to identify this condition: ALM=000 TBL=0002 SUP=000 OOS=000 REL=00 * TROUBLE * NODE=1 PANEL NAME Low battery voltage More Events VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 36 of 146...

  • Page 47: Troubleshooting

    120 seconds if no key is pressed. ENTER TO PROCECEED – EXIT TO QUIT Type the five digit code in the password field and press Enter. The default password is 22222. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...
  • Page 48 >LOCAL NAC: - ON Use Up/Down arrow keys to select. Press > to proceed. Press < to go back. Press 1 on the upper-control-pad to set LOCAL NAC: - OFF. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...
  • Page 49 The front-panel display provides the following message: ZONES IN Alarm=000 TRBL=0001 DISAB=0000 * TROUBLE * NODE=1 AUTOLEARN Test mode More Events 15 Press ENTER (again) to cancel the test. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 39 of 146...

  • Page 50: Event Log

    Press 1 on the upper-control-pad to navigate to ACCESS LEVEL 3. MAIN MENU – V07.0007H DISABLEMENTS VIEW DeviceS TEST ZONES SET SYSTEM TIME SENSOR MAINTENANCE EARLY WARNING >ACCESS LEVEL 3 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 40 of 146...
  • Page 51 Press 2 on the upper-control-pad to display the View Event Log. SELECT EVENT TYPES TO VIEW >FIRE- 0 PRE-Alarm- 1 TROUBLE- 0 DISABLEMENT- 0 OTHER EVENTS- 0 ALL EVENTS- 0 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 41 of 146...
  • Page 52 Press 3 on the upper-control-pad to display the MAIN MENU. MAIN MENU – V07.0007H >DISABLEMENTS VIEW DeviceS TEST ZONES SET SYSTEM TIME SENSOR MAINTENANCE EARLY WARNING ACCESS LEVEL 3 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 42 of 146...
  • Page 53 Press 2 on the upper-control-pad to display the VIEW/CLEAR EVENT LOG MENU. VIEW/CLEAR EVENT LOG MENU >View Event Log Clear Event Log Press 3 on the upper-control-pad to scroll down to Clear Event Log. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 43 of 146...

  • Page 54: Loop Data Test

    Press 3 on the upper-control-pad to display the MAIN MENU. MAIN MENU – V07.0007H >DISABLEMENTS VIEW DeviceS TEST ZONES SET SYSTEM TIME SENSOR MAINTENANCE EARLY WARNING ACCESS LEVEL 3 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 44 of 146...
  • Page 55 Press 2 on the upper-control-pad to display the Loop DATA TEST. Loop DATA TEST >SELECT Loop 1 SET TIMES Press 2 on the upper-control-pad to START TEST. Loop DATA TEST >START TEST VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 45 of 146...
  • Page 56 15 Press EXIT to return to the main menu. 11:12 Thursday December 10 2009 AUTO CONFIGURED PANEL USE ARROW KEYS TO ENABLE PANEL PRESS ? FOR HELP VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 46 of 146...
  • Page 57 Installation This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 47 of 146...

  • Page 58: Front-Panel Menu

    The default password is 33333. 10 Press 1 to navigate to ACCESS LEVEL 3 MENU. The Front-Panel Menu display returns to the Main Menu when navigation activity stops for more than 25 seconds. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 59: Access Level 2

    When a device is disabled, the Elite-RS Panel ignores the analog value reported by the device. All other faults for the device such as missing device, double address, internal fault, type changed and bad data are still reported by the Elite-RS Panel. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 60 2 Select ACCESS LEVEL 3 3 Select EDIT CONFIGURATION 4 Select EDIT PANEL I/O 5 Select EDIT PANEL OUTPUTS 6 Scroll through the options for NAC CIRCUIT 2 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 50 of 146...

  • Page 61: View Devices

    A 15 minute timer begins decrementing when a zone is set in test mode. The test will automatically stop after the timer stops. The timer automatically resets to 15 minutes whenever a device is activated in the zone test. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 62: Set System Time

    This section describes events and the status of the front-panel display while operating the Elite-RS Panel. The following events are described: • Fire Event • Trouble Event • Pre Alarm Event VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 52 of 146...

  • Page 63: Access Level 3

    Access Level 3 of the Elite-RS Panel provides menu settings for: • Edit Configuration • Set Times • View Event Log • System Disablements • Loop Data Test VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 53 of 146...
  • Page 64 Print By Zone - Select Zone Add Communicator Add/Delete Device System Disablements Edit Device Attributes Disable printer Auto Learn Disable Buzzer Disable Ground Trouble Set Buzzer Silenced Access Level VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 54 of 146...

  • Page 65: Front-Panel Controls

    The Programmable Function button is disabled as a default condition, but can be configured to perform specific functions while in Access Level 3, eSP Discovery or Loop Explorer. Operate the Programmable Function button in Access Level 2 of the Elite-RS Panel menu. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 66: Maintenance And Repair

    Remove Battery 1 and Battery 2 from the bottom of the Elite-RS cabinet. Re-cycle Battery 1 and Battery 2 according to the manufacturer procedures provided in the packaging of the batteries. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 67 The series connection illustrated above provides the 24 volt standby voltage required by the Elite-RS Panel. Do not connect the two batteries in parallel. A parallel connection will not provide the 24 volts required for operating the Elite-RS Panel in a standby condition. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 68: Replacing Fuses

    Connect the battery-connector to the Battery Connection on the front-panel of the Elite-RS. Determine that trouble conditions are not reported by the Elite-RS Panel following the fuse replacement. This step will confirm if the installation was performed correctly. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 69: Amp Power-Supply Fuse

    Press the upper-housing on the lower-housing until the halves snap together. Restore AC power to the power supply. Verify that the Elite-RS Panel completes the booting process to confirm that the Power Supply is operating correctly. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...

  • Page 70: Removing Cabinet Components

    Fire Events Events Pull the head of the lower-hinge-pin away from the hinge-assembly using PC / Dialer Reset Watchdog Watchdog Contrast Operated Reset needle-nose-pliers. Battery Connection AC POWER VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 60 of 146...
  • Page 71 Do not remove the this connection during the installation process. AC POWER AC power terminal-connector containing a ground-wire. Do not remove this connection. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 61 of 146...
  • Page 72 Remove the front-panel from the cabinet. Connection AC POWER Place the front-panel button-side-down on a clean, dry and uncluttered-surface. Do not place the front-panel down on the component side. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 62 of 146...
  • Page 73 Maintenance and Repair This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 63 of 146...

  • Page 74: Specifications

    Loop 1 (- OUT) Loop 2 (+ OUT) 32 VDC @ 250 mA Loop 2 (- OUT) Loop 2 (+ IN) 32 VDC @ 250 mA Loop 2 (- IN) VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 64 of 146...

  • Page 75: Slc Cabling

    30 VDC @ 1A Supervisory (NC), Not Supervised 30 VDC @ 1A Supervisory (C) Not Supervised 30 VDC @ 1A Supervisory (NO) Not Supervised 30 VDC @ 1A VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 65 of 146...

  • Page 76: Nac Outputs

    External synchronization modules must not be used on the NAC outputs when operating in the special application mode. Reference Appendix B, Equipment List for more information about NAC synchronization on the Elite-RS Panel. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 77: Rs485 Serial Bus

    24 V OUT (+) Regulated 24 VDC @ 360 mA 24 V OUT (-) The 24 V OUT connection is a common output and provides a regulated 24 VDC output. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...

  • Page 78: Auxiliary 24 Vdc

    120 VAC transfer @ 75 VAC 240 VAC transfer @ 160 VAC The specifications above pertain to terminations of the standby-battery at the Battery Connection of the Elite-RS Panel. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 68 of 146...

  • Page 79: Cabling

    Normally closed (NC) and normally open (NO) contacts of the fire circuit. SUPERVISORY 29, 30 and 31 14 - 26 AWG Normally closed (NC) and normally open (NO) contacts of the supervisory circuit. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 69 of 146...

  • Page 80: Operating Environment

    93% +/- 2% @ 90 +/- 3 atmosphere of relative humidity up (32 +/- 2 to 93 percent, non-condensing. Physical Specifications Dimensions 18.50”H X 14”W X 4.25”D Mounting 0.25” Maximum screw diameter VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 70 of 146...
  • Page 81 Specifications This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 71 of 146...

  • Page 82: Equipment List

    This appendix lists models and supporting equipment of the Elite-RS Panel. All models provided in this appendix are effected by the Contact ID restrictions described in Section 2, “Overview” and Section 3, “Installation”. VES Elite-RS Panels The following models are provided for the Elite-RS H-Series Panel: Models Features...

  • Page 83: Loop Devices And Accessories

    2 Loop Panel, eNet Interface, Integrated Dialer, Loop Expansion Module Gray Loop Devices and Accessories The following loop devices and accessories are authorized for use with the H-Series of the Elite-RS Panel: VES Models Hochiki Models Loop Devices VF2001 AIE-EA...
  • Page 84 Equipment list VES Models Hochiki Models Loop Devices VF6001 FRCME-S Contact Module with Terminals VF6002 FRCME-4 Contact Module With 4” Cover Plate VF6003 Short Circuit Isolator Module VF6004 Supervised Output Module VF6005 Dual Relay Module VF6006 Solenoid Releasing Module VF6007 DIMM Dual Contact Module with 4”...

  • Page 85: Replacement Parts

    VF7008 Sounder Base Aux Power VF7009 Sounder Base Loop Power VF9000 TCH-B100 Hand-held Programmer Replacement Parts The following VES replacement parts are provided for H-Series of the Elite-RS Panel: Models Description VF1054-00 Loop Expansion Module VF1153-00 Modem-DACT Ethernet VF1150-00 Media Gateway...

  • Page 86: Notification Appliances

    Gentex NAC devices without synchronization modules • System Sensor NAC devices without synchronization modules • Wheelock NAC devices without synchronization modules • Amseco NAC devices without synchronization modules VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 76 of 145...

  • Page 87: Synchronization

    Synchronization Protocols are in use, an option is also available to Silence the strobe. Failure to check the Strobe Silence box will cause horns to be silenced with continued operation of the strobe. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 88: Regulated Nac Outputs

    Notification Appliances and Synchronization Modules are described in the table below for regulated NAC outputs of the Elite-RS Panel: Manufacturer Manufacturer Manufacturer Maximum NAC Sync Module Sync Module and VES NAC Load Device System Sensor MDL (Red) VF6012-10 (Red) 0.90 A MDLW (White)

  • Page 89: Special Application Nac Outputs

    Indoor SSC-2 Speaker Strobe Wall/Ceiling Speaker/Strobe Round Indoor SSC-8 Speaker Strobe Wall/Ceiling Select-A-Strobe Indoor SL-1224 Strobe Wall Select-A-Strobe Indoor/Outdoor SL-1224-WP Strobe Wall Select-A-Strobe Indoor SL24C-3075110 Strobe Wall/Ceiling VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 79 of 145...
  • Page 90 Wall/Ceiling Select-A-Strobe Indoor RSD24-153075 Strobe Wall/Ceiling Select-A-Strobe Indoor RSD24-75110 Strobe Wall/Ceiling Select-A-Strobe Indoor SA24 SERIES Strobe Wall Select-A-Strobe Indoor SAD24-153075 Strobe Wall/Ceiling Select-A-Strobe Indoor SAD24-75110 Strobe Wall VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 80 of 145...
  • Page 91 Outdoor Commander Series Outdoor WGEC24 Horn Strobe Wall Outdoor Commander Series Outdoor WGES24 Strobe Wall Outdoor Commander Series Outdoor GEH24 Horn Wall GX91/GX93 Series Indoor GX93 Mini Horn Wall VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 81 of 145...
  • Page 92 The “XX” shown in VES model numbering denotes product color. The following VES NAC models are multiple-listed with Gentex and are compatible for use on the special application outputs of NAC 1 and 2 when these outputs are configured for “Gentex” synchronization protocol:...
  • Page 93 Wall SpectrAlert Indoor SP3x1224MC Speaker Strobe Wall SpectrAlert Outdoor SP2R1224MCK Speaker Strobe Wall SpectrAlert S1224MC Strobe Wall SpectrAlert P1224MC Horn Strobe, Wall 4-Wire SpectrAlert H12/24 Horn Wall/Ceiling VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 83 of 145...
  • Page 94 Speaker Strobe 115/177 cd, ceiling E70A, E70B, E90A, E90B Speaker Strobe - amber or blue lens E70-241575 Speaker Strobe - 1575 cd, wall E70-24MCW Speaker Strobe - 15,30,75,110 cd, wall VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 84 of 145...
  • Page 95 Audible Strobe - 15,30,75,110 cd, wall NS-121575, NS-241575 Audible Strobe - 1575 cd, wall RSS-121575 Strobe-15,75 cd, wall RSS-241575, RSSP-241575 Strobe - 15,75 cd, wall RSS-24MCW, RSSP-24MCW Strobe - 15,30,75,110 cd, wall VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 85 of 145...
  • Page 96 The “XX” shown in VES model numbering denotes product color. The following VES NAC models are multiple-listed with Wheelock and are compatible for use on the special application outputs of NAC 1 and 2 when these outputs are configured for “Wheelock” synchronization protocol:...
  • Page 97 Equipment list VES Models Wheelock Models Description VF4110-XX AMT-12/24-W Audible Multi Tone Addressable White VF4202-XX CH70-24-R Chime Square, Red VF4202-XX CH70-24-W Chime Square, White VF4204-XX CH90-24-W Chime Round White VF4327-XX RSS-24MCW-FR Strobe Wall Multi-Candela Red (RSS) VF4327-XX RSS-24MCW-FW Strobe Wall Multi-Candela White (RSS)
  • Page 98 Equipment list VES Models Wheelock Models Description VF4346-XX RSS-2475CR-FW Strobe Ceiling Mount Round White 75cd VF4348-XX RSS-24100CR-FR Strobe Ceiling Mount Round Red 100cd VF4348-XX RSS-24100CR-FW Strobe Ceiling Mount Round White 100cd VF4350-XX RSS-24150CR-FW Strobe Ceiling Mount Round White 150cd VF4351-XX...
  • Page 99 Equipment list VES Models Wheelock Models Description VF4605-XX MT-241575W-FR Audible Multi Tone Strobe Flush Red 15/75cd VF4606-XX MT-2475W-FR Audible Multi Tone Strobe Flush Red 75cd VF4607-XX MTWP-2475W-FR Audible Multi Tone Strobe Weatherproof Red 75cd VF4608-XX AMT-241575W-FR Audible Multi Tone/Strobe Red 15/75cd...
  • Page 100 Equipment list VES Models Wheelock Models Description VF4712-XX CH70-241575W-FW Chime/Strobe Square White 15/75cd VF4713-XX CH90-24MCC-FR Chime/Strobe, Ceiling, Multi-Candela, Red (CH) VF4713-XX CH90-24MCC-FW Chime/Strobe, Ceiling, Multi-Candela, White (CH) VF4714-XX CH90-2475C-FW Chime/Strobe Round White 75cd VF4715-XX CH90-24100C-FW Chime/Strobe Round White 100cd VF4716-XX...
  • Page 101 Equipment list VES Models Wheelock Models Description VF4829-XX E60-24MCC-FW Speaker/Strobe Ceiling Mount 2 Watt Multi Candela White VF4830-XX E60-24MCCH-FR Speaker/Strobe Ceiling Mount 2 Watt High Multi Candela Red VF4830-XX E60-24MCCH-FW Speaker/Strobe Ceiling Mount 2 Watt High Multi Candela White VF4832-XX...

  • Page 102: Maximum Line Impedance

    16 Channel I/O Interface Power connections of the remote display and annunciators must be terminated at the 24 volt terminals of the 24V OUT or AUX 24V on the Elite-RS Panel. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 103 Equipment list This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 93 of 145...

  • Page 104: Current-Loading

    Elite-RS Panel. These levels are not intended to be summed together to determine the total-current available from the Elite-RS Panel. Refer to these levels only when determining the limit of device-loading on each circuit. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 105: Example Of Total Load Current

    Verify that the current level is below 4 Amps: This example demonstrates that device-loading does not exceed the 4 Amp capacity of the 2.075 A < 4 A Elite-RS power supply. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series...

  • Page 106: Determining The Standby-Battery Rating

    Where the Battery Derating Factor = 1.2 and 5 minutes = 5 / 60 minutes = 1/12 = .0833 hours. To determine the battery Amp-Hour-Rating: Record the standby and alarm currents of VES Devices. Record the standby and alarm currents of NAC Devices.

  • Page 107: Tabulating Data

    Category Instruction Standby-Current Alarm-Current VES Devices Enter the total standby and Amps Amps alarm current for VES Devices. NAC Devices Enter the total standby and Amps Amps alarm current for NAC Devices. Auxiliary Devices Enter the total standby and Amps Amps alarm current for Auxiliary Devices.

  • Page 108: Nac Wiring Length

    = [ ( .209 + .209 + .209 + 16 / 10K ) ] A = ( .627 + .0016 ) A = .6286 A total VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 98 of 146...
  • Page 109 = 1/2 ( V ) / R drop wire where, = 1/2 [ ( 4.4 / .6286 ) / ( .006385 Ohms / FT ) ] = 548 FT VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 99 of 146...
  • Page 110 EXAMPLE CIRCUIT IDENTIFIES W IRE LENGTH FOR TW O CONDUCTOR CABLE NAC 1 NAC 2 TROUBLE NAC 1 NAC 2 SLC1 IN SLC1 OUT SLC1 IN SLC1 OUT VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 100 of 146...
  • Page 111 Calculations This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 101 of 146...
  • Page 112 Door Label - Appendix D 102 of 145...
  • Page 113 Door Label - Appendix D This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 103 of 145...
  • Page 114 Operating Instructions - Appendix E 104 of 145...
  • Page 115 Operating Instructions - Appendix E This page intentionally left blank VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 105 of 145...

  • Page 116: Contact Id

    VES recommends SIA reporting in point format. This method of reporting supplies the most detailed information possible to the monitoring center. Desired functionality and capabilities of your monitoring center should dictate your dialer reporting configuration.

  • Page 117: Sia

    If neither line is checked the dialer will never attempt to send a message. Dialing Sequence Two Phone Lines In Use Single Monitoring Center telephone Number (Only Account 1 Tab filled in) Try Line 1 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 107 of 146...

  • Page 118: Answering Methodology

    Configure Dialer Settings Loop Explorer [VES PC Panel programming Software] allows the user to configure the embedded dialer based upon the elements of a particular installation and the monitoring center being used. Although the dialer may be configured through level 3 setting at the front of the panel, not all options are panel programmable, and ease of operation is much more favorable with Loop Explorer.
  • Page 119 Figure F-3 Configure Account Settings Configure Dialer Settings The Dialer Tab allows entry of information instructing the dialer how to call out and how to receive calls. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 109 of 146...

  • Page 120: Phone Numbers

    (select backup reporting) and Redundant signal reporting. Reference Figure F-5 for the backup reporting selection. Figure F-5 illustrates dialer configuration settings for the Account 2 tab: Figure F-5 Account 2 tab VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 110 of 146...

  • Page 121: Dialing

    Account 1 or Account 4 is a backup telephone number for Account 3. The ‘Backup Report’ philosophy indicates that this number will only be tried if their compliments (1 & 3) do not reach the receiver. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...

  • Page 122: Suspending Reporting

    All messages that were deleted when the remote configuration mode was entered will never be sent to the monitoring center, although these signals are stored in the event history log of the panel. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 123 Communications Format This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 113 of 146...

  • Page 124: Reporting Formats

    User Defined 1090 1091 1092 1093 1-10-0 User Defined 10A0 10A1 10A2 10A3 1-11-0 User Defined 10B0 10B1 10B2 10B3 1-12-0 User Defined 10C0 10C1 10C2 10C3 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 114 of 146...
  • Page 125 User Defined 1200 1201 1202 1203 1-33-0 User Defined 1210 1211 1212 1213 1-34-0 User Defined 1220 1221 1222 1223 1-35-0 User Defined 1230 1231 1232 1233 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 115 of 146...
  • Page 126 User Defined 1370 1371 1372 1373 1-56-0 User Defined 1380 1381 1382 1383 1-57-0 User Defined 1390 1391 1392 1393 1-58-0 User Defined 13A0 13A1 13A2 13A3 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 116 of 146...
  • Page 127 User Defined 14E0 14E1 14E2 14E3 1-79-0 User Defined 14F0 14F1 14F2 14F3 1-80-0 User Defined 1500 1501 1502 1503 1-81-0 User Defined 1510 1511 1512 1513 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 117 of 146...
  • Page 128 User Defined 1650 1651 1652 1653 1-102-0 User Defined 1660 1661 1662 1663 1-103-0 User Defined 1670 1671 1672 1673 1-104-0 User Defined 1680 1681 1682 1683 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 118 of 146...
  • Page 129 User Defined 17C0 17C1 17C2 17C3 1-125-0 User Defined 17D0 17D1 17D2 17D3 1-126-0 User Defined 17E0 17E1 17E2 17E3 2-01-0 User Defined 2010 2011 2012 2013 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 119 of 146...
  • Page 130 User Defined 2150 2151 2152 2153 2-22-0 User Defined 2160 2161 2162 2163 2-23-0 User Defined 2170 2171 2172 2173 2-24-0 User Defined 2180 2181 2182 2183 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 120 of 146...
  • Page 131 User Defined 22C0 22C1 22C2 22C3 2-45-0 User Defined 22D0 22D1 22D2 22D3 2-46-0 User Defined 22E0 22E1 22E2 22E3 2-47-0 User Defined 22F0 22F1 22F2 22F3 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 121 of 146...
  • Page 132 User Defined 2430 2431 2432 2433 2-68-0 User Defined 2440 2441 2442 2443 2-69-0 User Defined 2450 2451 2452 2453 2-70-0 User Defined 2460 2461 2462 2463 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 122 of 146...
  • Page 133 User Defined 25A0 25A1 25A2 25A3 2-91-0 User Defined 25B0 25B1 25B2 25B3 2-92-0 User Defined 25C0 25C1 25C2 25C3 2-93-0 User Defined 25D0 25D1 25D2 25D3 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 123 of 146...
  • Page 134 User Defined 2710 2711 2712 2713 2-114-0 User Defined 2720 2721 2722 2723 2-115-0 User Defined 2730 2731 2732 2733 2-116-0 User Defined 2740 2741 2742 2743 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 124 of 146...

  • Page 135: Contact Id Conversion

    Panel Input Programmable Function Panel Input Fire Drill Panel Input Reset Panel Input Alarm Silence 1-01-0 User Defined 1-02-0 User Defined 1-03-0 User Defined 1-04-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 125 of 146...
  • Page 136 1-20-0 User Defined 1-21-0 User Defined 1-22-0 User Defined 1-23-0 User Defined 1-24-0 User Defined 1-25-0 User Defined 1-26-0 User Defined 1-27-0 User Defined 1-28-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 126 of 146...
  • Page 137 1-45-0 User Defined 1-46-0 User Defined 1-47-0 User Defined 1-48-0 User Defined 1-49-0 User Defined 1-50-0 User Defined 1-51-0 User Defined 1-52-0 User Defined 1-53-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 127 of 146...
  • Page 138 1-70-0 User Defined 1-71-0 User Defined 1-72-0 User Defined 1-73-0 User Defined 1-74-0 User Defined 1-75-0 User Defined 1-76-0 User Defined 1-77-0 User Defined 1-78-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 128 of 146...
  • Page 139 1-95-0 User Defined 1-96-0 User Defined 1-97-0 User Defined 1-98-0 User Defined 1-99-0 User Defined 1-100-0 User Defined 1-101-0 User Defined 1-102-0 User Defined 1-103-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 129 of 146...
  • Page 140 1-120-0 User Defined 1-121-0 User Defined 1-122-0 User Defined 1-123-0 User Defined 1-124-0 User Defined 1-125-0 User Defined 1-126-0 User Defined 2-01-0 User Defined 2-02-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 130 of 146...
  • Page 141 2-19-0 User Defined 2-20-0 User Defined 2-21-0 User Defined 2-22-0 User Defined 2-23-0 User Defined 2-24-0 User Defined 2-25-0 User Defined 2-26-0 User Defined 2-27-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 131 of 146...
  • Page 142 2-44-0 User Defined 2-45-0 User Defined 2-46-0 User Defined 2-47-0 User Defined 2-48-0 User Defined 2-49-0 User Defined 2-50-0 User Defined 2-51-0 User Defined 2-52-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 132 of 146...
  • Page 143 2-69-0 User Defined 2-70-0 User Defined 2-71-0 User Defined 2-72-0 User Defined 2-73-0 User Defined 2-74-0 User Defined 2-75-0 User Defined 2-76-0 User Defined 2-77-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 133 of 146...
  • Page 144 2-94-0 User Defined 2-95-0 User Defined 2-96-0 User Defined 2-97-0 User Defined 2-98-0 User Defined 2-99-0 User Defined 2-100-0 User Defined 2-101-0 User Defined 2-102-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 134 of 146...
  • Page 145 2-118-0 User Defined 2-119-0 User Defined 2-120-0 User Defined 2-121-0 User Defined 2-122-0 User Defined 2-123-0 User Defined 2-124-0 User Defined 2-125-0 User Defined 2-126-0 User Defined VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 135 of 146...

  • Page 146: Event Code Translation

    General E373 R373 Purpose N/C no EOL PreAlarm General E118 R118 Purpose N/O EOL General E118 R118 Purpose N/C EOL General E118 R118 Purpose N/C no EOL VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 136 of 146...
  • Page 147 General E203 R203 Purpose N/C no EOL Emergency General E150 R150 Purpose N/O EOL General E150 R150 Purpose N/C EOL General E150 R150 Purpose N/C no EOL VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 137 of 146...
  • Page 148 Silence General Purpose N/O General Purpose N/C EOL General Purpose N/C no EOL Reset General Purpose N/O EOL General Purpose N/C EOL General Purpose N/C no EOL VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 138 of 146...
  • Page 149 Purpose N/O EOL General Purpose N/C EOL General Purpose N/C no EOL Test Mode General Purpose N/O EOL General Purpose N/C EOL General Purpose N/C no EOL VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 139 of 146...
  • Page 150 R330 069 RS-454 devices (missing addr5) Troubles on Panel Action ET0440 ER0440 E330 068 R330 068 RS-454 devices (unexpected addr4) Test Signal RP or RY E602 or E608 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 140 of 146...
  • Page 151 Reporting Formats This page intentionally left blank. VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03 H-Series 141 of 146...
  • Page 152 Contact ID format ......7 Contacting VES for Repair ..... . 4 contamination status .
  • Page 153 Installation Procedures ..... . . 24 installing audible and visual Notification Appliances . 29 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 154 SLC loop devices ..... . 25 Provides a fire drill test ......11 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 155 Troubleshooting ......37 Trouble-Silence Test ......35 VES, LLC Elite-RS Panel Installation Manual VF3529-00, Revision E01.03...
  • Page 156 Phone: Office +65 6757 7045 Emails: sales@allfireinternational.com...

Table of Contents
