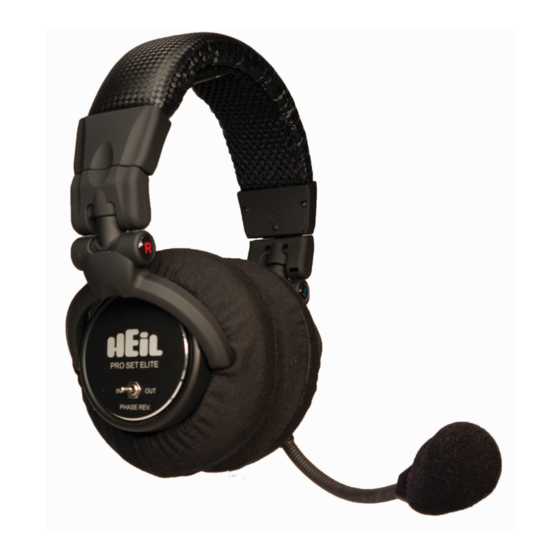

Heil Sound Pro Set Elite iC Instruction Manual

Using the Pro Set Elite iC with the NCS-C003 Headset Interface Box

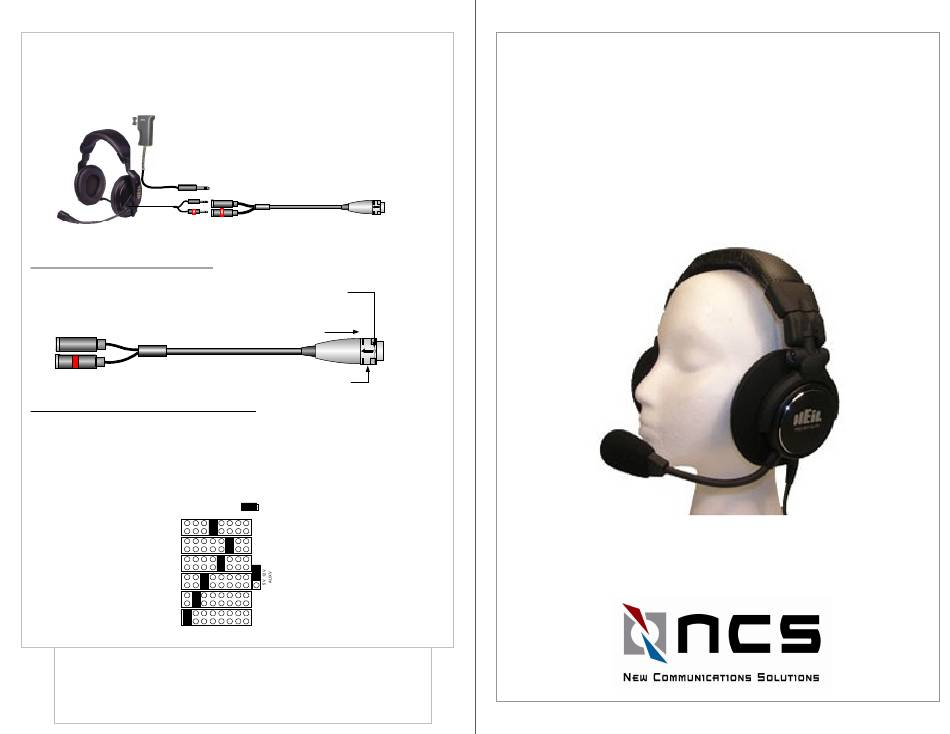

To connect the Pro Set Elite iC to the NCS-C003 Headset Interface Box requires the NCS-003-
HHS-0.7 Headset Adaptor Cable. The two Pro Set Elite iC 3.5 mm phone plugs connect to their
respective jacks on the Headset Adaptor Cable. Make sure that the color of the plug and jack
match. The optional NCS-F230 Hand Switch is connected directly to the ¼ inch phone jack on
the front of the NCS-C003.
NCS-F230
Hand Switch
PTT
Receive Audio
Mic Audio
NCS-003-HHS-0.7 Headset Adaptor Cable
Line Up the WHITE DOT with the WHITE DOT on
the Mating Connector Before Engaging
Red = Mic Audio
Installation of Microphone Jumpers in the NCS-C250
Microphone jumpers must be installed in the NCS-C250 to match the pin outs of the NCS-C003
Headset Interface Box. The proper installation of the mic jumpers for use with the NCS-C003
and adaptor cable is shown below. After all jumpers are installed refer to the NCS-C250
Instruction Manual and set the mic audio level for proper audio output.
The Sel Audio and Unsel Audio jumpers can be swapped to reverse the audio in the headset
earpieces.
Mic Audio
PTT
Ground
AUXV
Unsel
Audio
Sel
Audio
1 2 3 4 5 6 7 8
New Communications Solutions, LLC
Norcross, Georgia
TEL/FAX: (888) 883-5788
EMAIL: support@ncsradio.com
Website: www.ncsradio.com
To NCS-C003
To NCS-C003
Push connector to engage
Pull Release Ring Back
to Unplug Connector
Electret Voltage
Jumper
