Slam Specialties MC.1-SS Installation Instructions

SLAM SPECIALTIES
Model No. : MC.1-SS

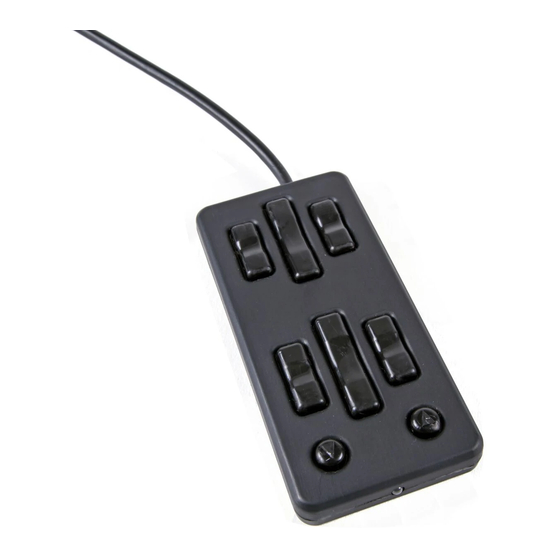

The MC.1 is a two part control system for air suspension vehicles consisting of a handheld control unit and the
accompanying receiver/driver module. Microprocessors and solid state drivers offer fast reliable response while
communicating with each other over a single wire, making the unit easy to install and flexible to move.
There are two multi-conductor cables in the receiver box. The 3-conductor is for power, ground and ignition; the
9-conductor is for hooking up your valves. Please follow these instructions for wiring your MC.1. NOTE: the Aux
wire is optional. The controller will funtion normally with or without the Aux wire connected. AUX function is activated
by a ground trigger. When activated, the four fill valve outputs are energized until the ground trigger is released off
of the Aux line.
Handheld operation wired as g. 2
Front Up
Front Driver Up
Front Driver Down
Front Down
Rear Driver Up
Rear Driver Down
All Down (Pancake)

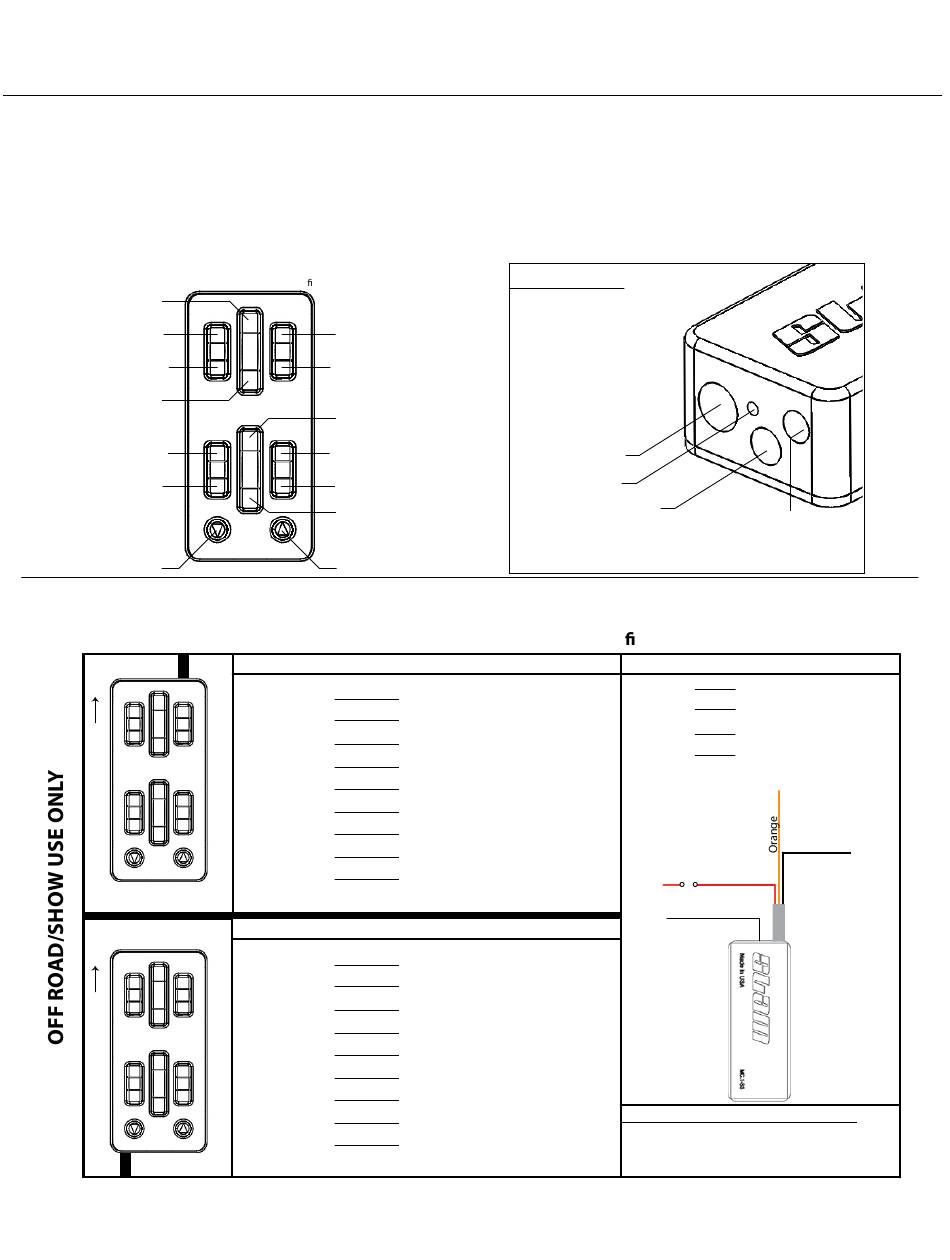

The MC.1 can be wired in multiple configurations depending on the desired orientation of the handheld (fig. 2 and
fig. 3). below is the valve wiring diagram for each configuration. Connect the power wire as per fig 1. for BOTH
configurations.
fig. 2
fig. 3
Thank you for purchasing the MC.1 Controller from Slam Specialties. This page includes installation instruc-
tions as well as contact information for technical support. If you have any questions about the operation of this
Made in USA
Front Passenger Up
Front Passenger Down
Rear Up
Rear Passenger Up
Rear Passenger Down
Rear Down
All Up (Pancake)
Valve Wiring
Front Driver Fill
Red
Front Driver Dump
Green
Front Passenger Fill
White
Front Passenger Dump
Purple
Rear Driver Fill
Brown
Rear Driver Dump
Blue
Rear Passenger Fill
Yellow
Rear Passenger Dump
Orange
Valve Grounds (-)
Black
Valve Wiring
Orange Front Driver Fill
Yellow Front Driver Dump
Blue Front Passenger Fill
Brown Front Passenger Dump
Purple Rear Driver Fill
White Rear Driver Dump
Green Rear Passenger Fill
Red Rear Passenger Dump
Black Valve Grounds (-)
unit, please call 888-352-5225.
Control Systems
MC.1 Receiver
Valve cable
AUX input
Power cable
g. 1
Receiver Power Wiring
Red
Orange
Black
Black.1
10A
+12v
Fuse
Black.1
Aux Input Wiring/function
Aux wiring is ground trigger. While (-)
signal is applied, the box will output to
all fill valves, until (-) signal is released
Handheld Jack
Battery (+12v)
Ignition (+12v)
Ground
Aux input
Ignition (+12)
Black
Ground
Red
pg 1/3
