Grp R24 Step Sequencer – Owner's Manual Supplement

Grp R24 Step Sequencer
Owner' Manual Supplement
Rev 1.1
Some parts of Grp R24 Step Sequencer require some careful procedures.

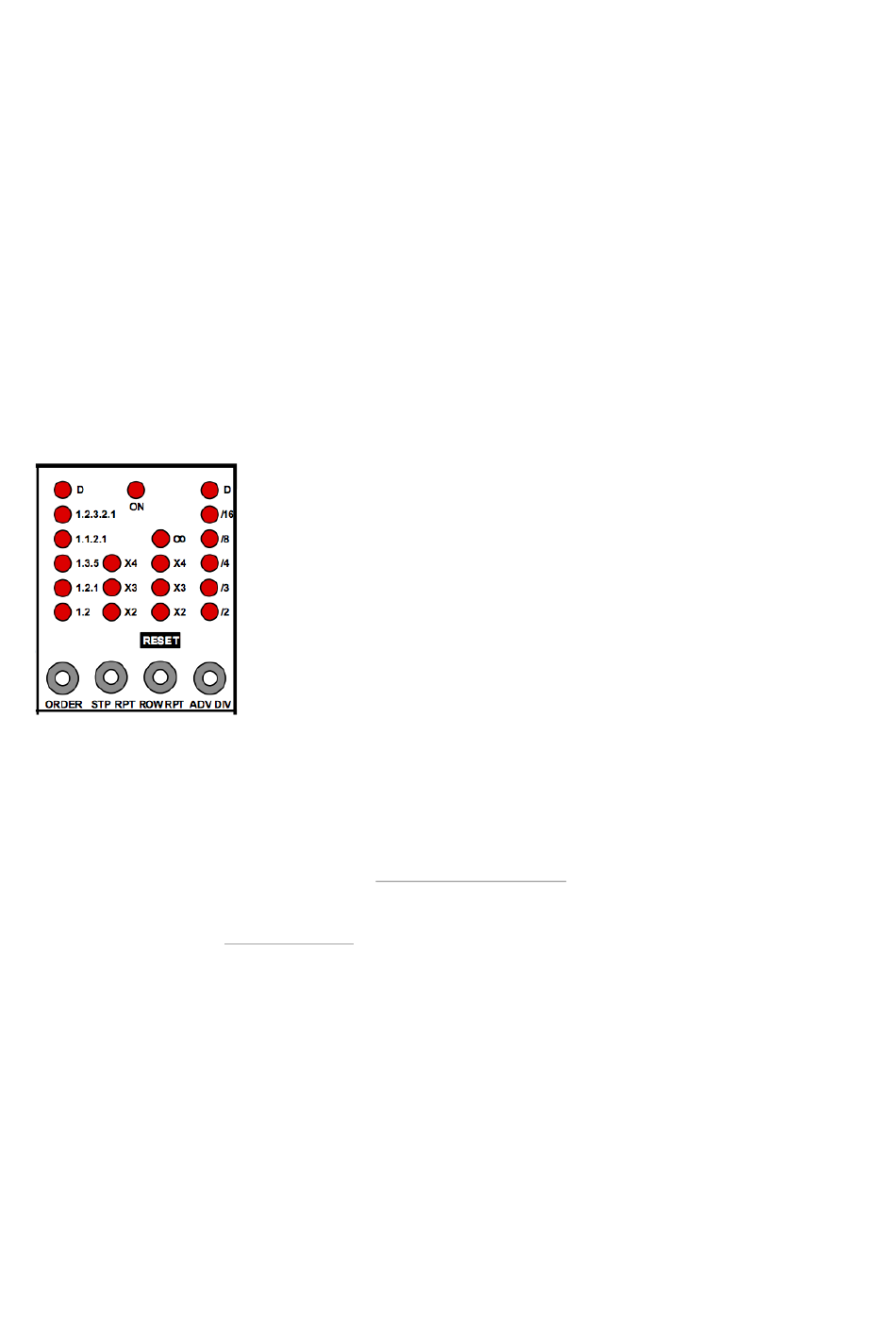

Row's control unit
It should be remembered some basic knowledge.
Each Row in Grp R24 Step Sequencer has its own control unit – on Row A, B and C. Every control
unit allows to choose the behavior for the Row, indipendendtly on each Row. As you can imagine,
to be operational, the control unit should be activated, otherwise it will not function.
The main LED ON (at the top of the module) can be turned on or off:
LED turned on: control unit manages controls for ORDER, STP RPT, ROW RPT, STP ADV; permits
•
CV and Gate out on their respective ports, for working with external analog devices.
LED turned off: control unit is inactive; Row's output CV and Gate are disabled and inactive.
•
When control unit on a Row is turned off, there's not transmission of CV and Gate from analog ports
CV OUT and GATE 1 or 2 of that Row.
MIDI data transmission is always active, even when control unit is turned off.
